Danfoss 87611-12-08Z

HOSE NIPPLE ASSY, 2P/08, C62/12, CS, STR

MPN
87611-12-08Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

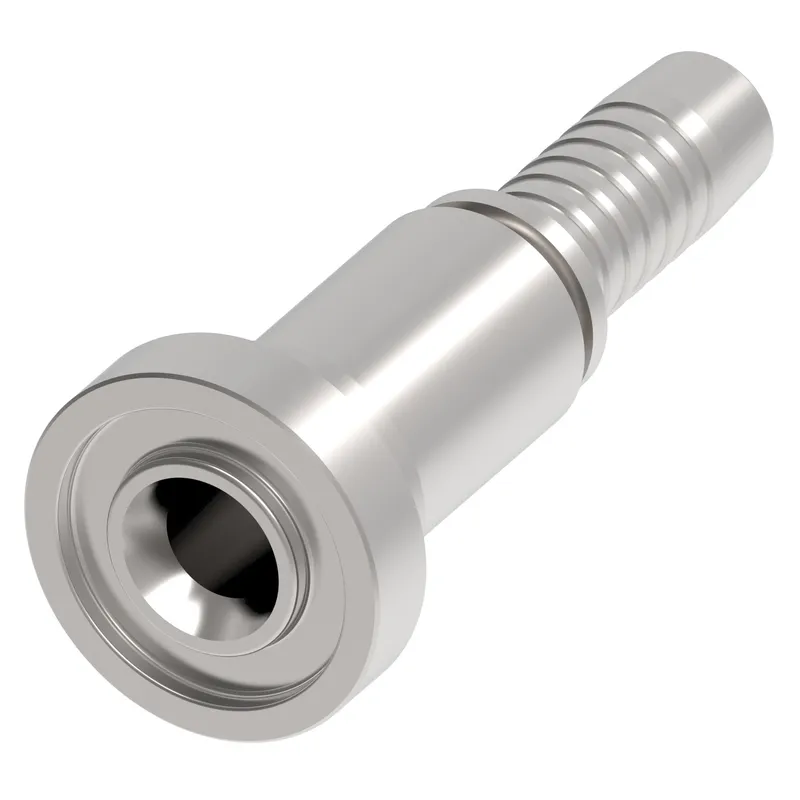

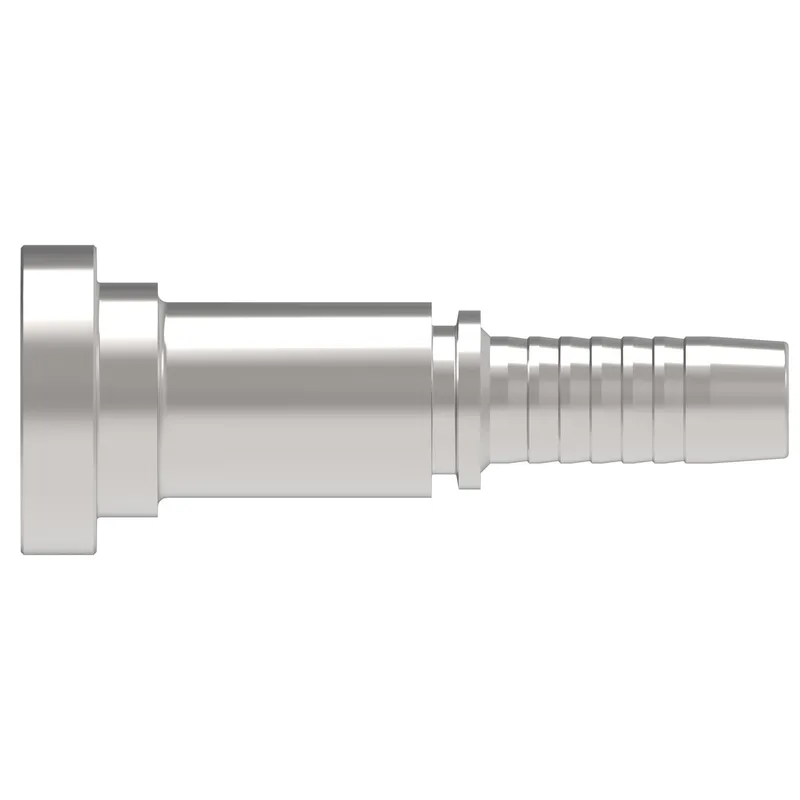

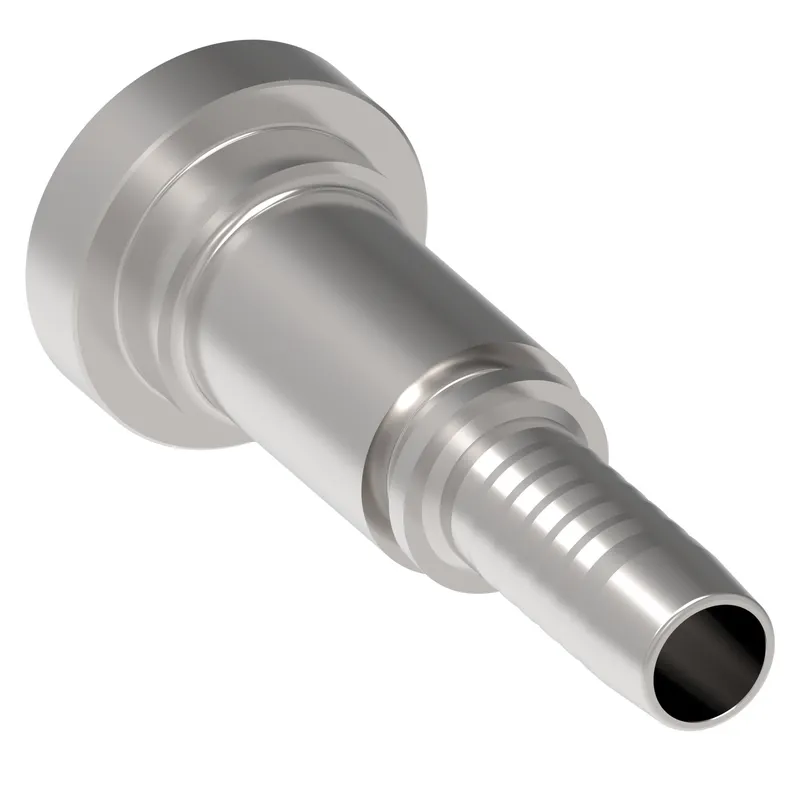

What is the Danfoss 87611-12-08Z?

Danfoss HOSE NIPPLE ASSY, 2P/08, C62/12, CS, STR, manufacturer part number 87611-12-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.208
A dimension MM81.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-12
End size 2-8
End Type 1Split flange code 62
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN1.968
Hose cut off factor MM50.000
Hose size-8
Inside diameter IN0.393
Inside diameter MM10.000
Product height in1.626
Product height mm41.300
Product length in3.209
Product length mm81.501
Product materialCarbon steel
Product width in1.626
Product width mm41.3
Thread sealantNo
Working pressure max BAR414
Working pressure max PSI6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
