Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product height in | Product height mm | Product width in | Product width mm |
|---|---|---|---|---|

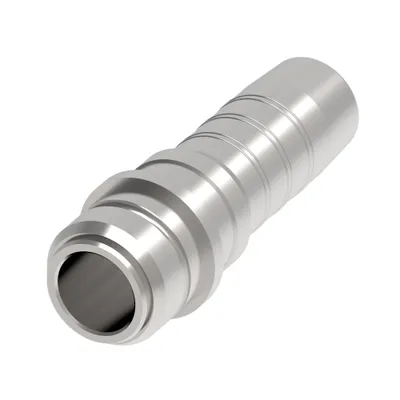

| DSL01-1212 | 1.060 | 26.924 | 1.060 | 26.924 |

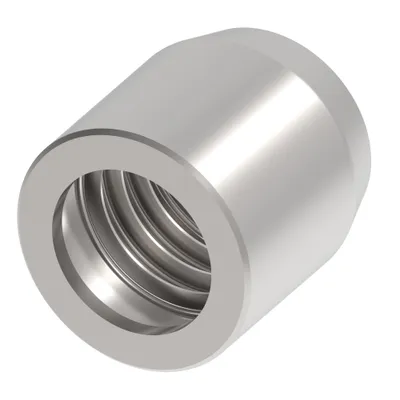

| DBU16 | 1.905 | 48.387 | 1.905 | 48.387 |
| DBU12 | 1.530 | 38.862 | 1.530 | 38.862 |

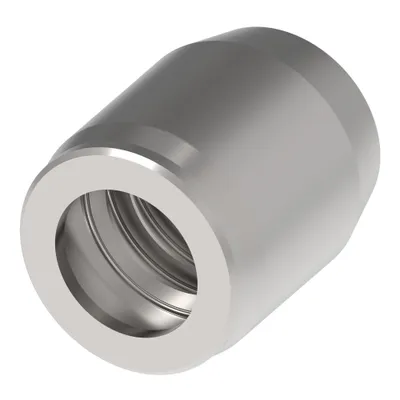

| DBU04 | 0.885 | 22.479 | 0.885 | 22.479 |

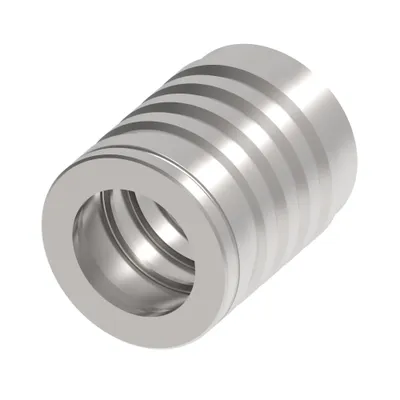

| DBL82-20 | 2.410 | 61.214 | 2.410 | 61.214 |
| DBL82-16 | 1.866 | 47.396 | 1.866 | 47.396 |

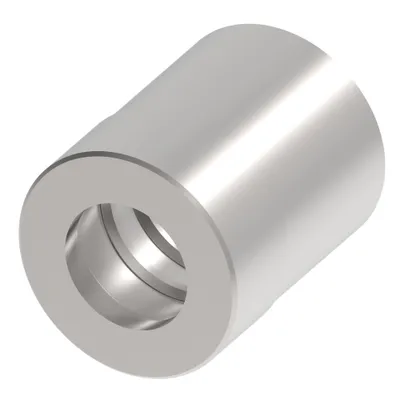

| DBL82-12 | 1.600 | 40.640 | 1.600 | 40.64 |

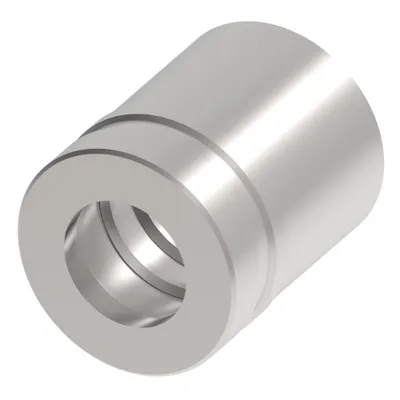

| DBL82-08 | 1.280 | 32.512 | 1.280 | 32.512 |

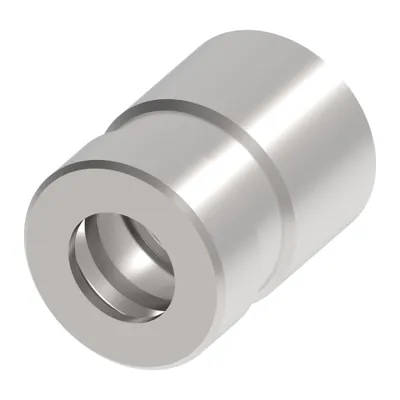

| DBL82-06 | 1.080 | 27.432 | 1.080 | 27.432 |

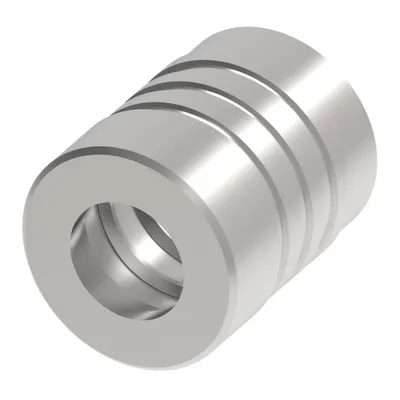

| DBL04-12 | 1.547 | 39.293 | 39.293 | 39.294 |

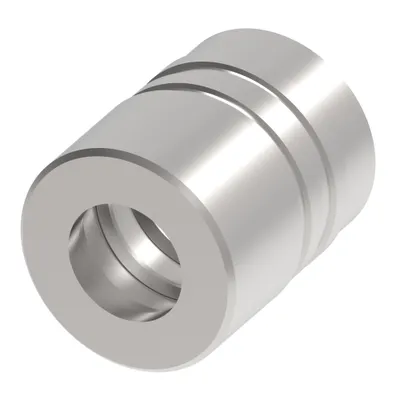

| DBL04-08 | 1.230 | 31.242 | 1.230 | 31.242 |
| D8200W-8 | 0.500 | 12.700 | 0.500 | 12.7 |
| D8200W-6 | 0.380 | 8.500 | 0.380 | 8.5 |

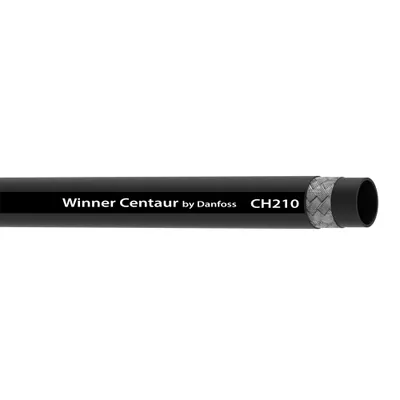

| CH210-32 | 2.000 | 50.800 | 2.000 | 50.8 |
| CH210-24 | 1.500 | 38.100 | 1.500 | 38.1 |
| CH210-20 | 1.250 | 31.800 | 1.250 | 31.8 |
| CH210-16 | 1.000 | 25.400 | 1.000 | 25.4 |
| CH210-12 | 0.750 | 19.000 | 0.750 | 19 |
| CH210-10 | 0.620 | 15.900 | 0.620 | 15.9 |
| CH210-08 | 0.500 | 12.700 | 0.500 | 12.7 |
| CH210-06 | 0.380 | 9.500 | 0.380 | 9.5 |
| CH210-05 | 0.310 | 7.900 | 0.310 | 7.9 |
| CH210-04 | 0.250 | 6.400 | 0.250 | 6.4 |

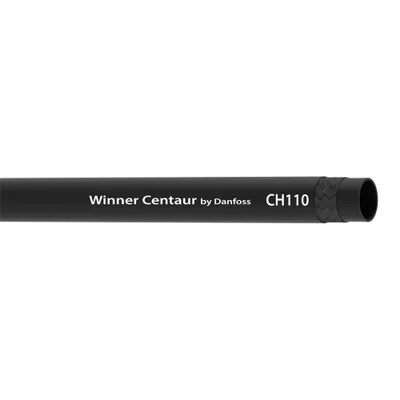

| CH110-32 | 2.000 | 50.800 | 2.000 | 50.8 |
