Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product height in | Product height mm | Product width in | Product width mm | Product length mm |
|---|---|---|---|---|---|

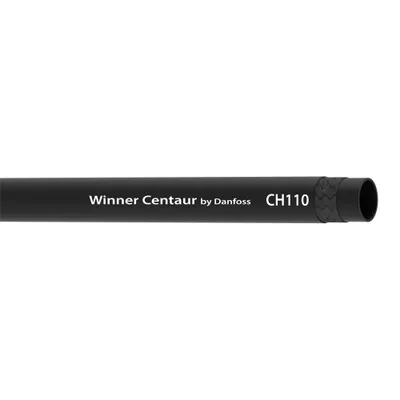

| CH110-24 | 1.500 | 38.100 | 1.500 | 38.1 | — |
| CH110-20 | 1.250 | 31.800 | 1.250 | 31.8 | — |
| CH110-16 | 1.000 | 25.400 | 1.000 | 25.4 | — |
| CH110-12 | 0.750 | 19.000 | 0.750 | 19 | — |
| CH110-10 | 0.620 | 15.900 | 0.620 | 15.9 | — |
| CH110-08 | 0.500 | 12.700 | 0.500 | 12.7 | — |
| CH110-06 | 0.380 | 9.500 | 0.380 | 9.5 | — |
| CH110-05 | 0.310 | 7.900 | 0.310 | 7.9 | — |
| CH110-04 | 0.250 | 6.400 | 0.250 | 6.4 | — |

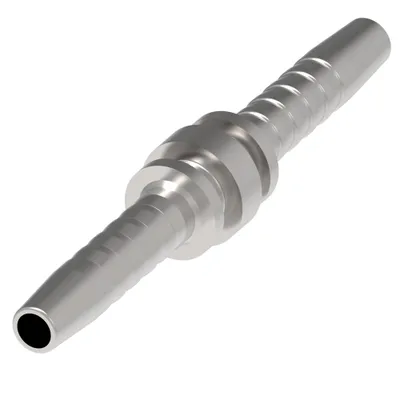

| 90011-16Z | 1.023 | 26.000 | 1.023 | 26 | 114.000 |
| 90011-05Z | 0.511 | 13.000 | 0.511 | 13 | 69.000 |
| 90010-08Z | 0.708 | 18.000 | 0.708 | 18 | 60.000 |
| 90010-06Z | 0.590 | 15.000 | 0.590 | 15 | 51.500 |
| 90010-04Z | 0.708 | 17.983 | 0.708 | 17.983 | 59.994 |

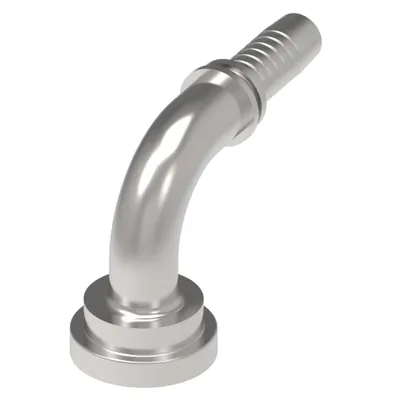

| 88191-10-10Z | 2.500 | 63.500 | 1.346 | 34.2 | 107.100 |

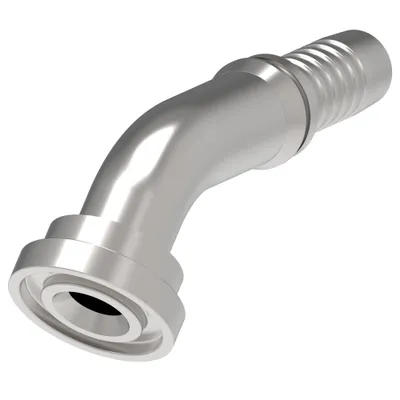

| 88141-10-10Z | 2.102 | 53.400 | 1.346 | 34.2 | 120.700 |

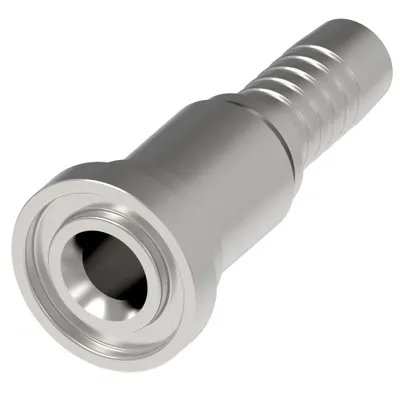

| 88111-10-10Z | 1.346 | 34.200 | 1.346 | 34.2 | 79.500 |
| 88111-10-08Z | 1.340 | 34.036 | 1.340 | 34.036 | 76.454 |
| 87691YT-12-10Z | 2.870 | 72.898 | 1.630 | 41.402 | 110.744 |
| 87691YT-12-08Z | 2.610 | 66.294 | 1.630 | 41.402 | 92.964 |
| 87691YT-08-08Z | 2.460 | 62.484 | 1.250 | 31.75 | 88.392 |
| 87691Y-08-08Z | 2.496 | 63.398 | 1.248 | 31.699 | 88.341 |
| 87691-32-24Z | 5.453 | 138.501 | 3.126 | 79.4 | 177.401 |
| 87691-24-20Z | 4.468 | 113.500 | 2.500 | 63.5 | 145.501 |
