Danfoss 87611-24-24Z

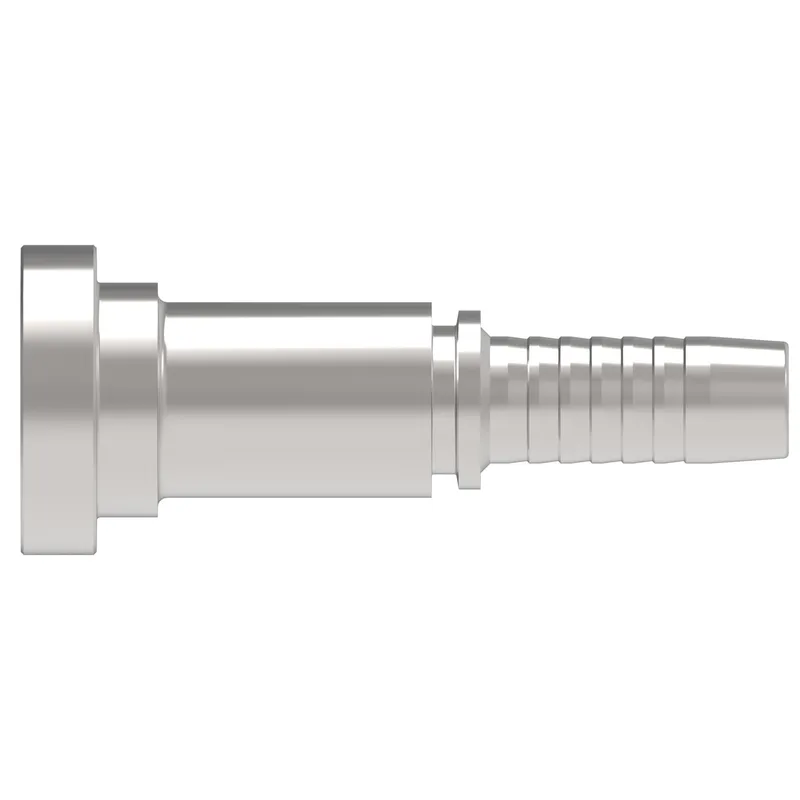

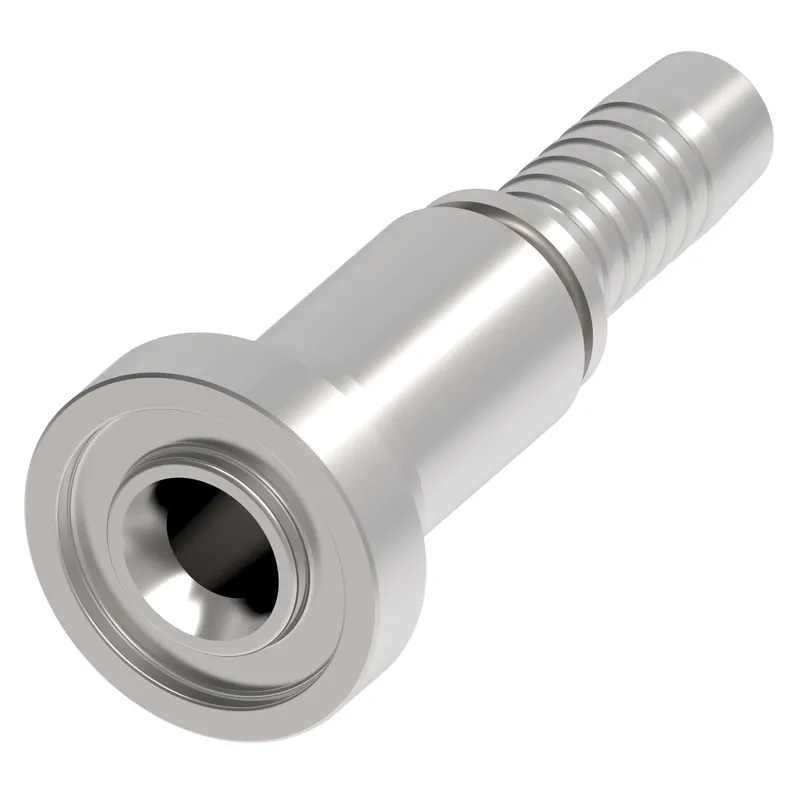

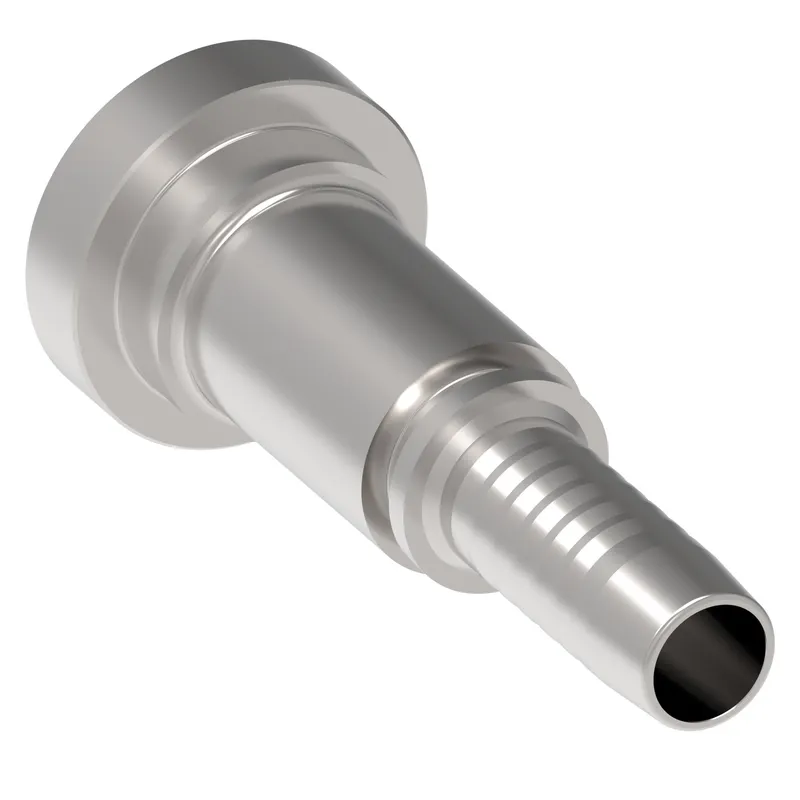

HOSE NIPPLE ASSY, 2P/24, C62/24, CS, STR

MPN
87611-24-24Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87611-24-24Z?

Danfoss HOSE NIPPLE ASSY, 2P/24, C62/24, CS, STR, manufacturer part number 87611-24-24Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.433
A dimension MM138.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN2.500
Drop dimension MM63.50
End size 1-24
End size 2-24
End Type 1Split flange code 62
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN2.755
Hose cut off factor MM70.000
Hose size-24
Inside diameter IN1.220
Inside diameter MM31.000
Product height in2.500
Product height mm63.500
Product length in5.787
Product length mm147.000
Product materialCarbon steel
Product width in2.500
Product width mm63.5
Thread sealantNo
Working pressure max BAR414
Working pressure max PSI6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87611-24-24Z: frequently asked questions

When can 87611-24-24Z be shipped?

87611-24-24Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87611-24-24Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87611-24-24Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87611-24-24Z, subject to availability and destination.
