Danfoss 1AA5DL4C

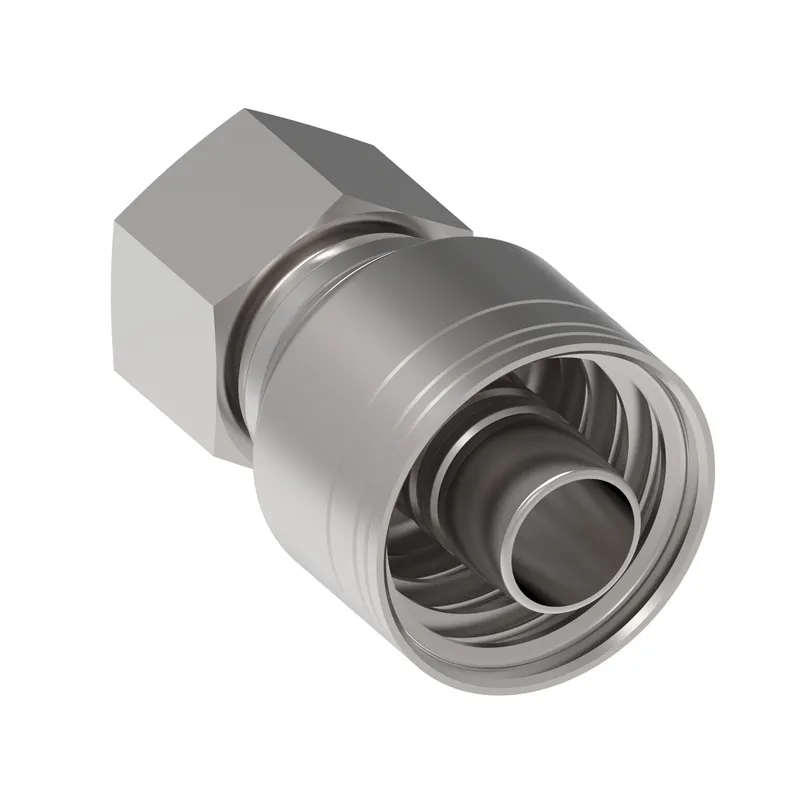

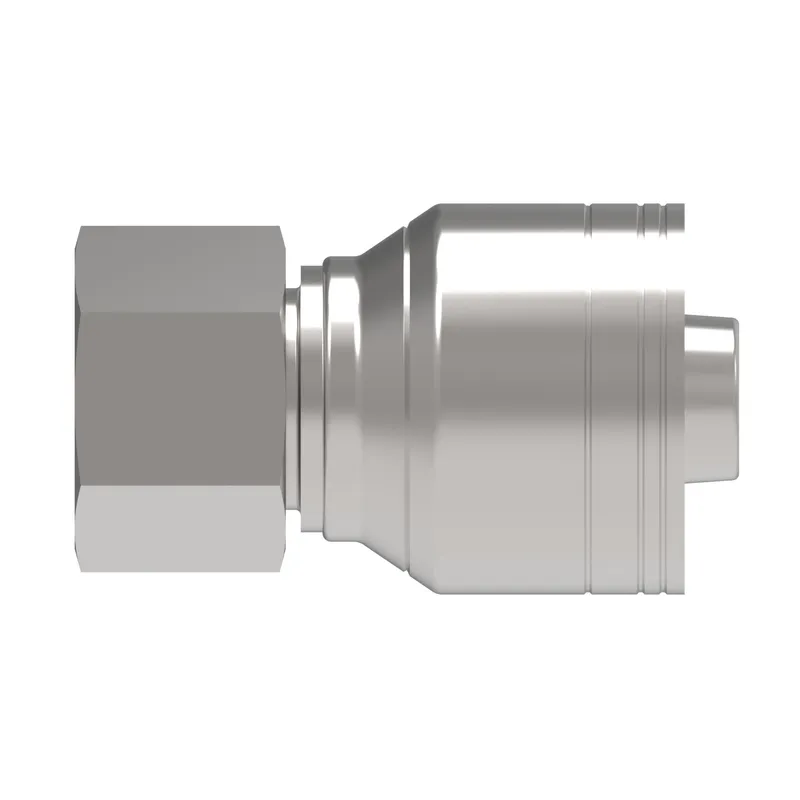

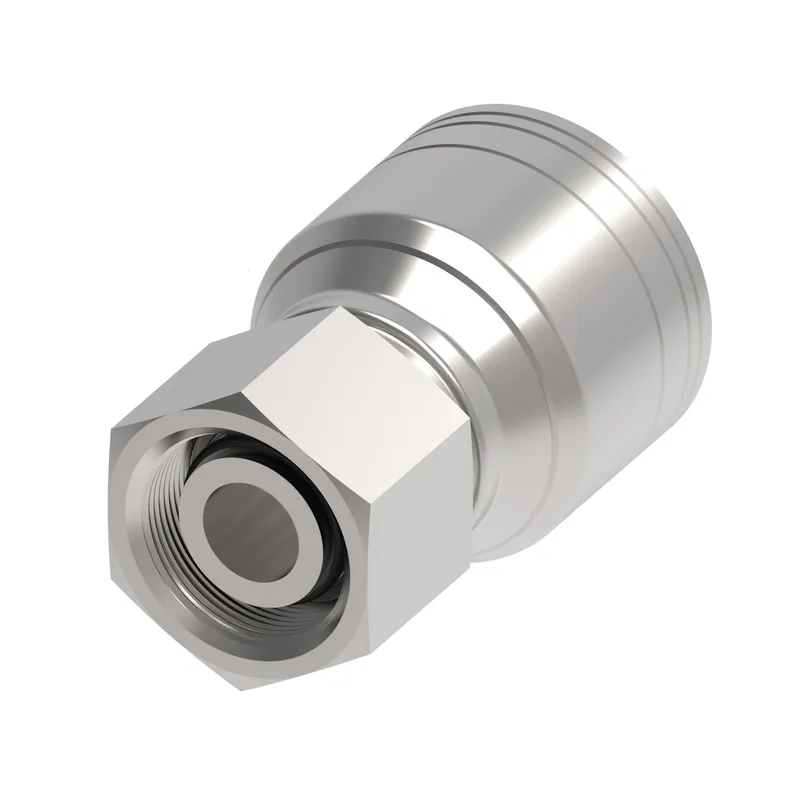

HOSE FTG, 1A/04, DKOL/05, AP, STR

MPN: 1AA5DL4C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA5DL4C?

Danfoss HOSE FTG, 1A/04, DKOL/05, AP, STR, manufacturer part number 1AA5DL4C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126818
A dimension IN	1.660
A dimension MM	42.100
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible tube OD IN	0.31
Compatible tube OD MM	7.874
Construction Style	Crimp
End connection torque	15-16 lb-ft(20-22 Nm)
End size 1	-5
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.551
Hex size 1 MM	14.000
Hex size 2 IN	0.000
Hose cut off factor IN	0.860
Hose cut off factor MM	21.900
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.880
Product height mm	22.352
Product length in	1.780
Product length mm	45.212
Product material	316 Stainless steel
Product width in	0.880
Product width mm	22.352
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M12x1.5
Tube OD 1 IN	0.310
Tube OD 1 MM	7.874
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
