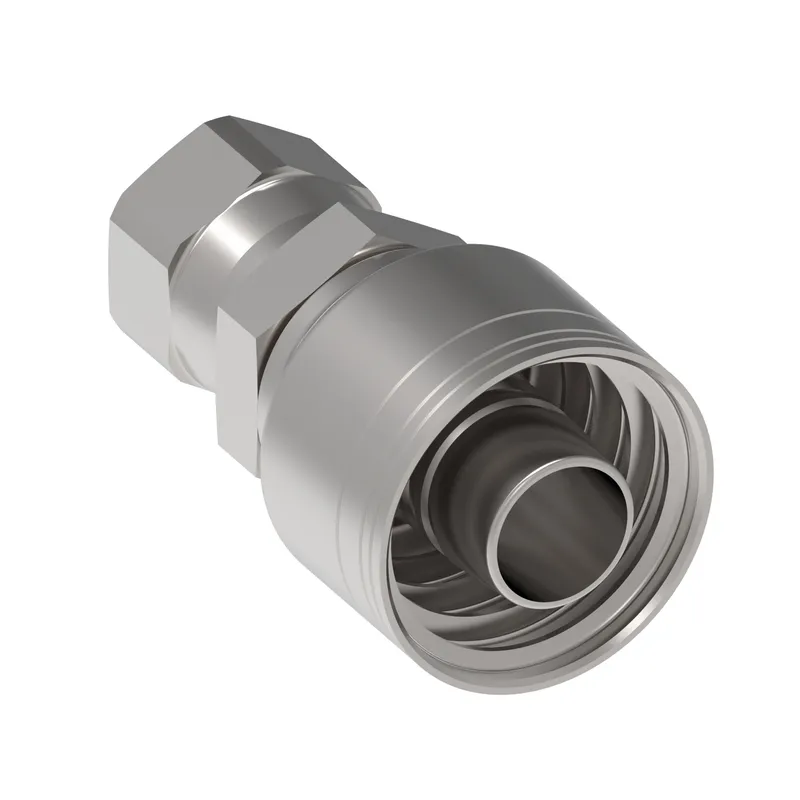

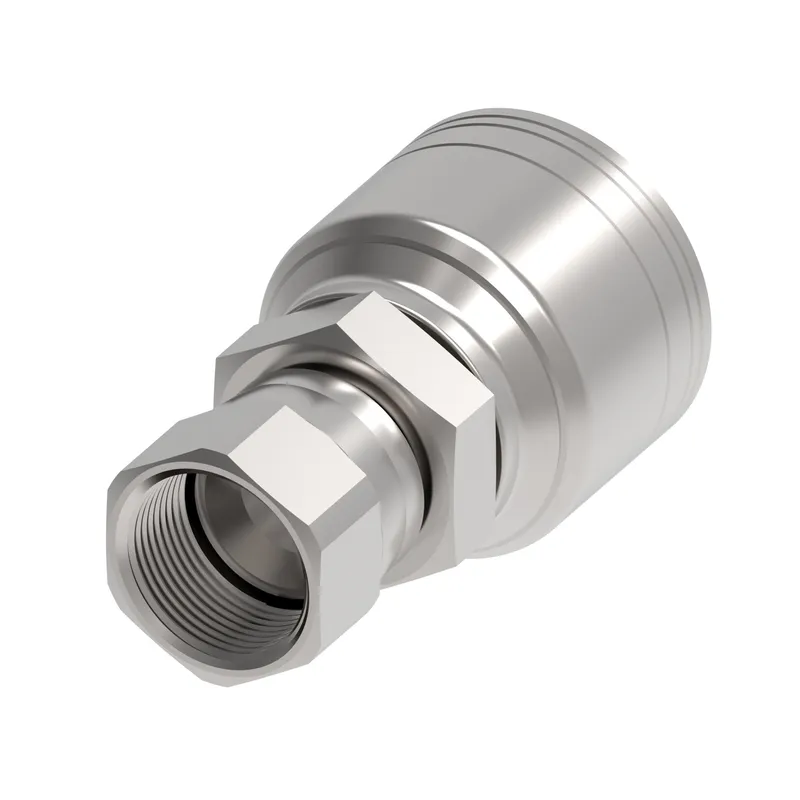

Danfoss 1AA5FJ6

HOSE FTG, 1A/06, JIC-F/05, CS, STR

MPN: 1AA5FJ6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA5FJ6?

Danfoss HOSE FTG, 1A/06, JIC-F/05, CS, STR, manufacturer part number 1AA5FJ6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126849
A dimension IN	2.080
A dimension MM	52.800
Angle shape	Straight
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	15-16 lb-ft(20-22 Nm)
End size 1	-5
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 2 MM	17.000
Hose cut off factor IN	1.240
Hose cut off factor MM	31.500
Hose size	-6
Inside diameter IN	0.230
Inside diameter MM	5.900
Product height in	1.070
Product height mm	27.178
Product length in	2.240
Product length mm	56.896
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread size 1	1/2-20 UNF
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
