Danfoss 1AA6FJ6C

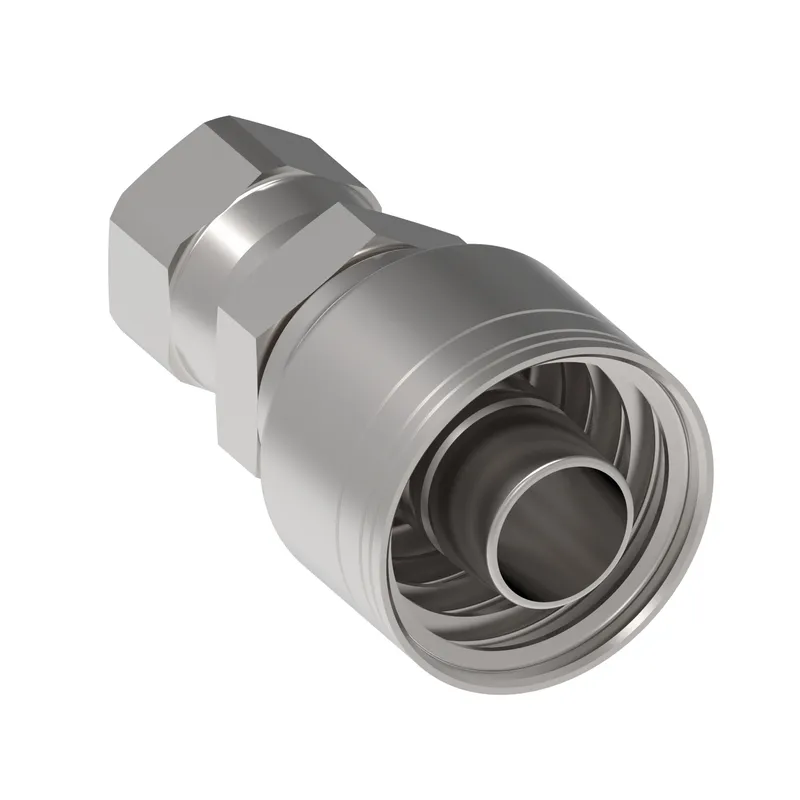

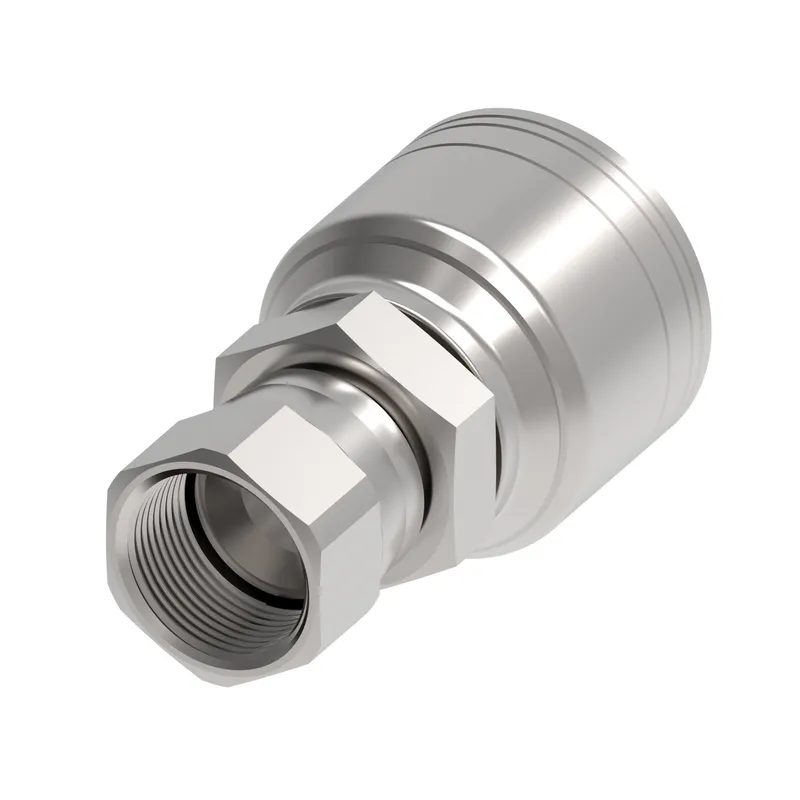

HOSE FTG, 1A/06, JIC-F/06, AP, STR

MPN: 1AA6FJ6C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA6FJ6C?

Danfoss HOSE FTG, 1A/06, JIC-F/06, AP, STR, manufacturer part number 1AA6FJ6C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127099
A dimension IN	2.120
A dimension MM	53.900
Angle shape	Straight
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	18-20 lb-ft(24-28 Nm)
End size 1	-6
End Type 1	Female 37 degree swivel
Hex size 2 MM	17.000
Hose cut off factor IN	1.280
Hose cut off factor MM	32.600
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.070
Product height mm	27.178
Product length in	2.260
Product length mm	57.060
Product material	316 Stainless steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread size 1	9/16-18 UNF
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
