Danfoss 1AA5MJ4

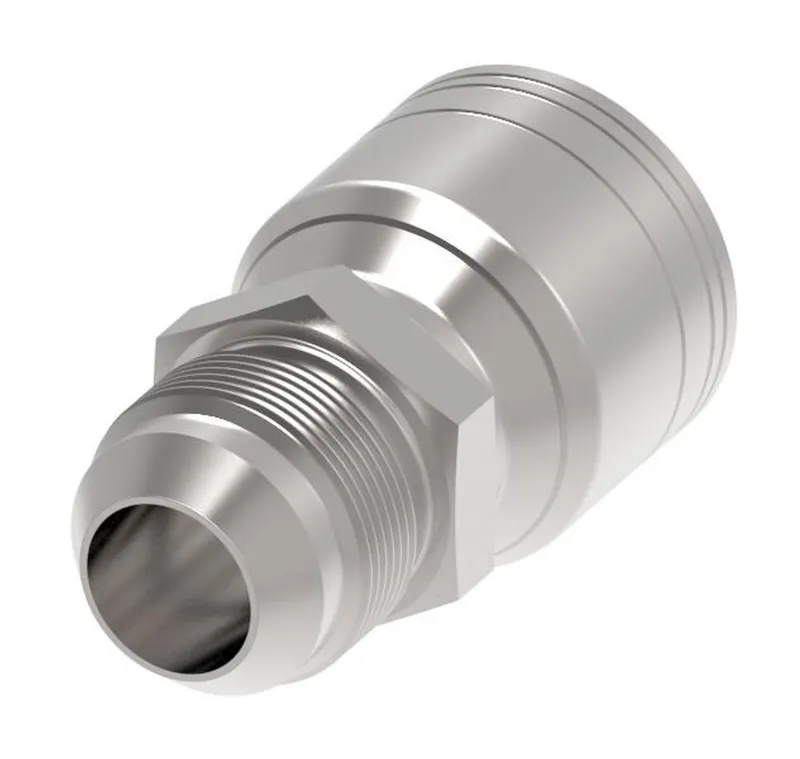

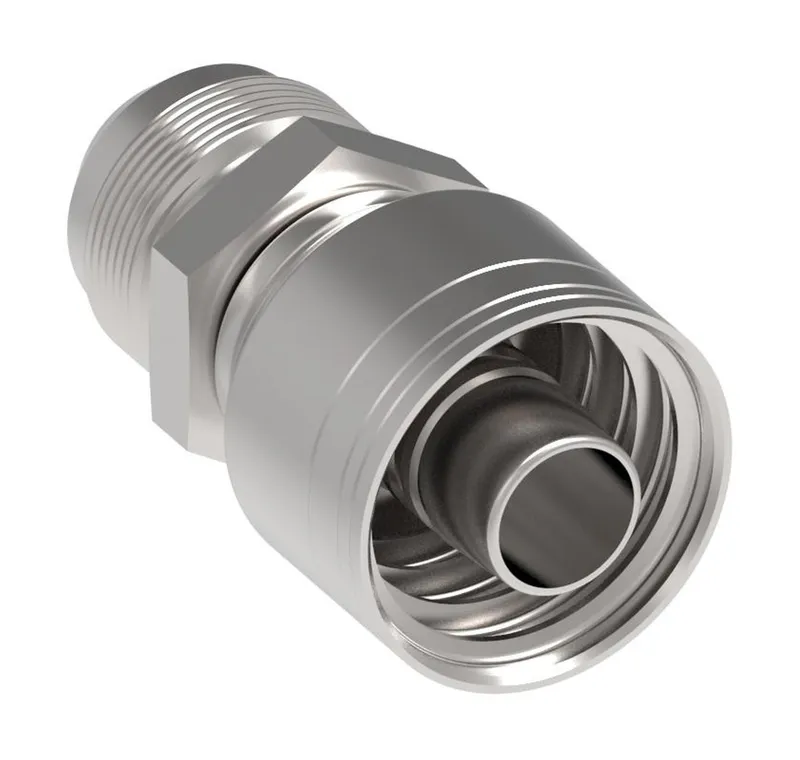

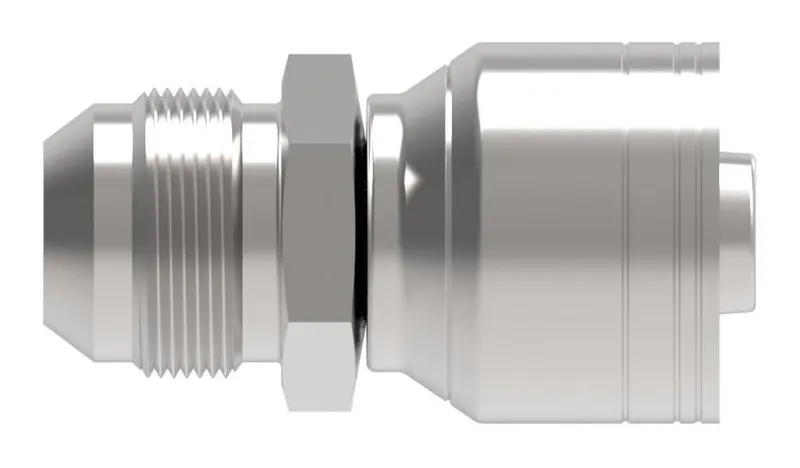

HOSE FTG, 1A/04, JIC-M/05, CS, STR

MPN: 1AA5MJ4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA5MJ4?

Danfoss HOSE FTG, 1A/04, JIC-M/05, CS, STR, manufacturer part number 1AA5MJ4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126962
A dimension IN	1.720
A dimension MM	43.700
Angle shape	Straight
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	15-16 lb-ft(20-22 Nm)
End size 1	-5
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	0.551
Hex size 2 MM	14.000
Hose cut off factor IN	0.930
Hose cut off factor MM	23.500
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.880
Product height mm	22.352
Product length in	1.840
Product length mm	46.736
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Series	1A/Z Series
Thread size 1	1/2-20 UNF
Working pressure max BAR	586
Working pressure max PSI	8600
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
