Danfoss 1AA5DS4C

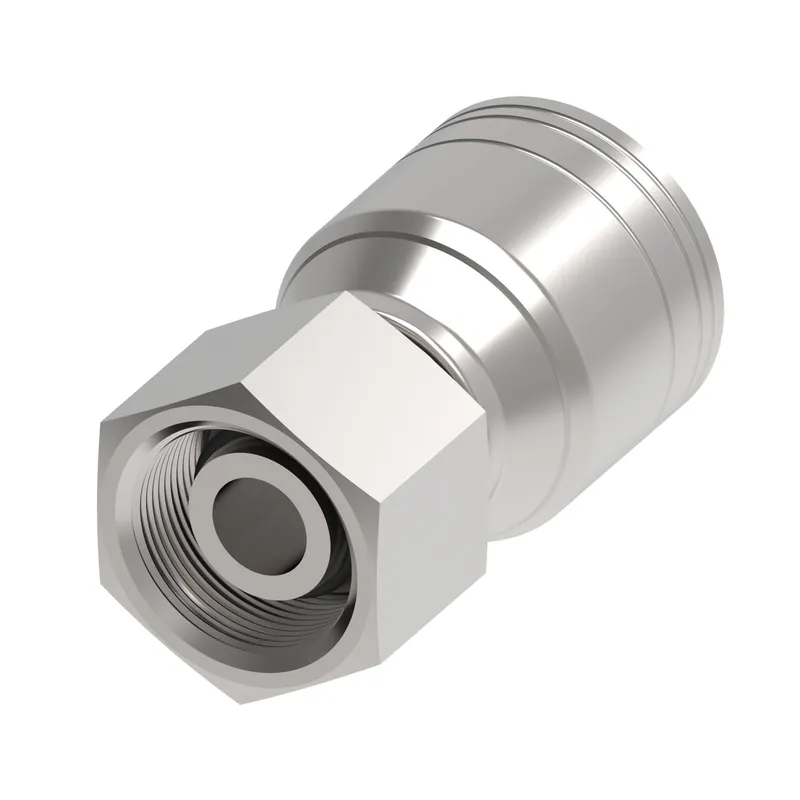

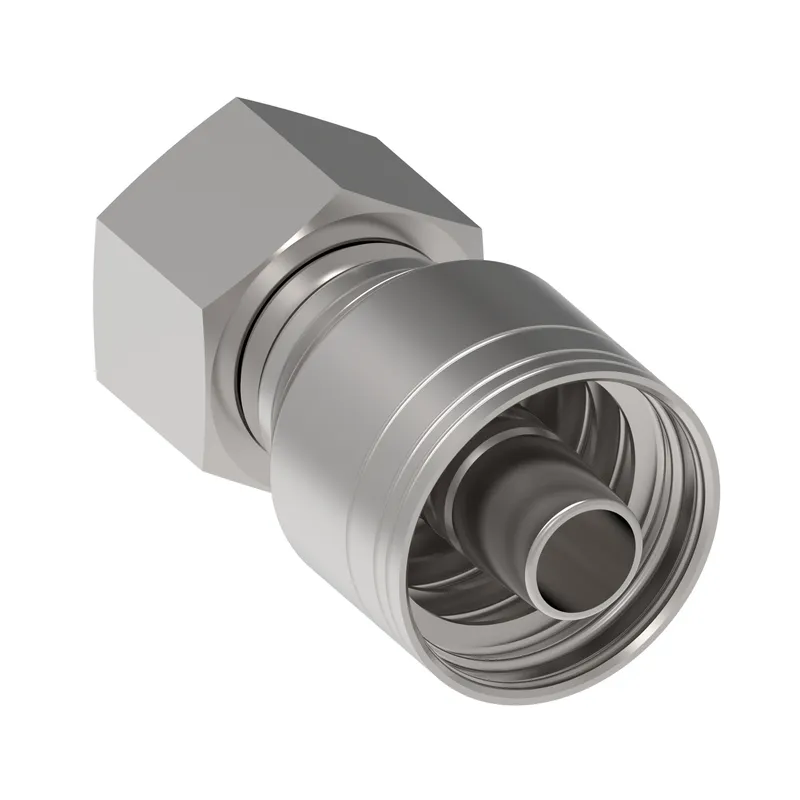

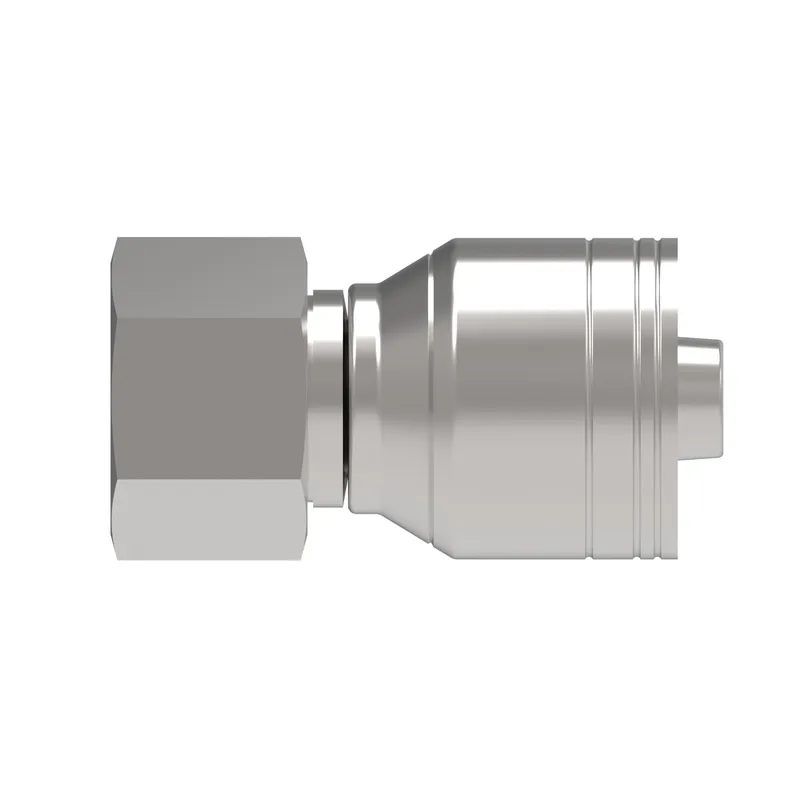

HOSE FTG, 1A/04, DKOH-B/05, AP, STR

MPN: 1AA5DS4C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA5DS4C?

Danfoss HOSE FTG, 1A/04, DKOH-B/05, AP, STR, manufacturer part number 1AA5DS4C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.830
A dimension MM	46.400
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible hoses	GH663, GH793
Construction Style	Crimp
End size 1	-5
End Type 1	24 deg. DKO swivel heavy duty
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Hose cut off factor IN	1.030
Hose cut off factor MM	26.200
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.880
Product height mm	25.352
Product length in	1.930
Product length mm	49.022
Product material	316 Stainless steel
Product width in	0.880
Product width mm	22.352
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M16x1.5
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
