Danfoss 1AA6BFB6C

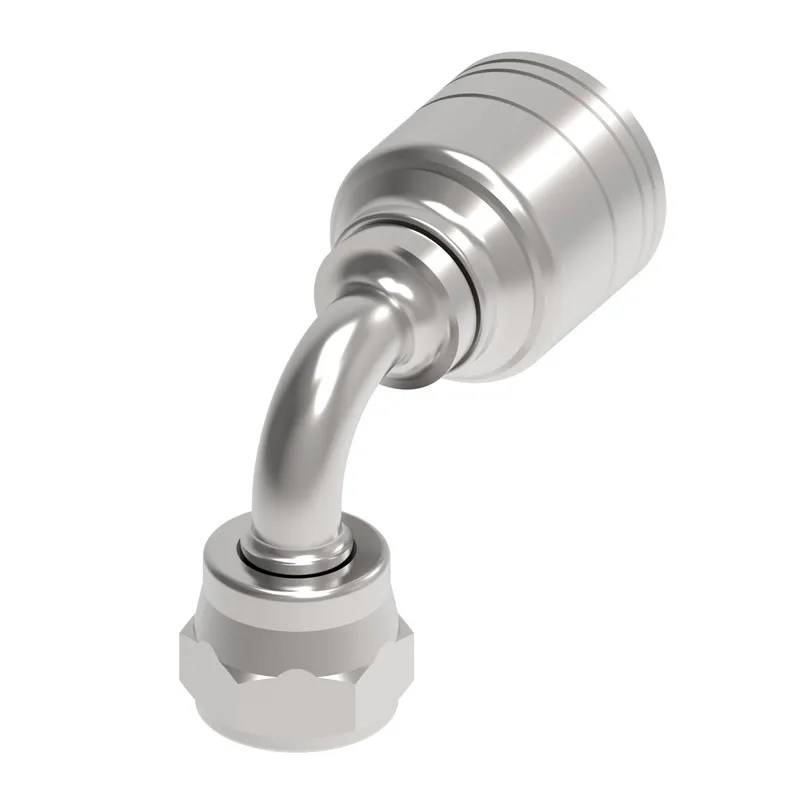

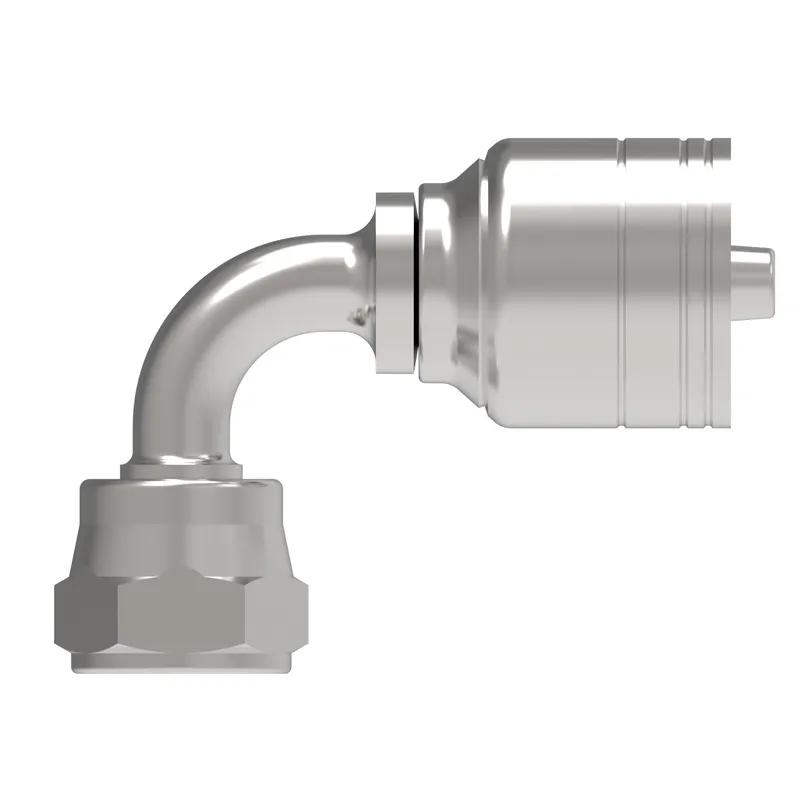

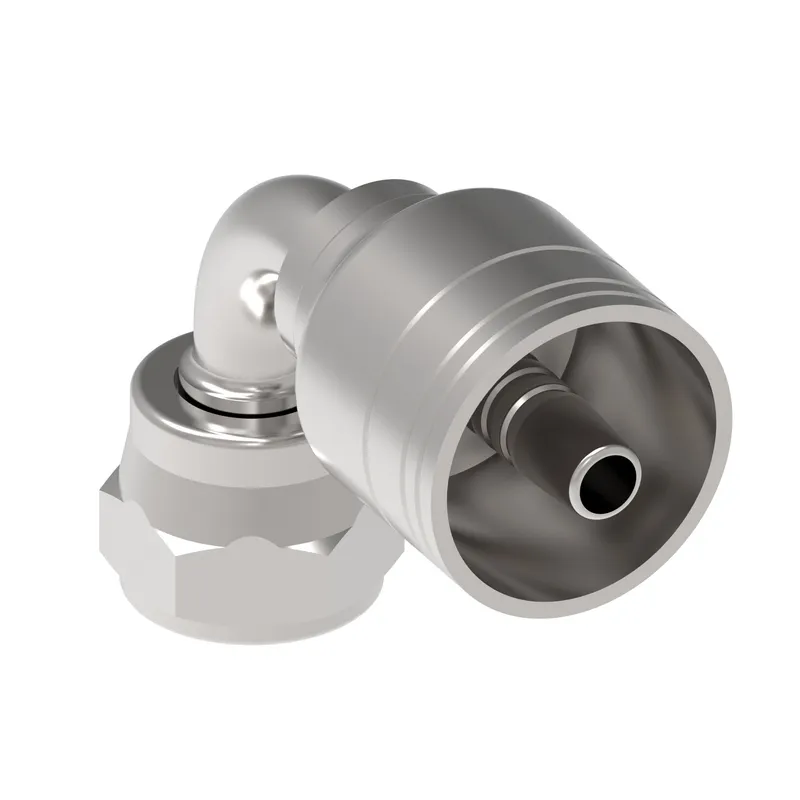

HOSE FTG, 1A/06, BF/06, AP, 90D

MPN: 1AA6BFB6C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA6BFB6C?

Danfoss HOSE FTG, 1A/06, BF/06, AP, 90D, manufacturer part number 1AA6BFB6C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127006
A dimension IN	2.180
A dimension MM	55.400
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.380
Drop dimension MM	35.00
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Hose cut off factor IN	1.340
Hose cut off factor MM	34.100
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.980
Product height mm	50.292
Product length in	2.760
Product length mm	70.104
Product material	316 Stainless steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 3/8
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
