Danfoss 1AA6DS4C

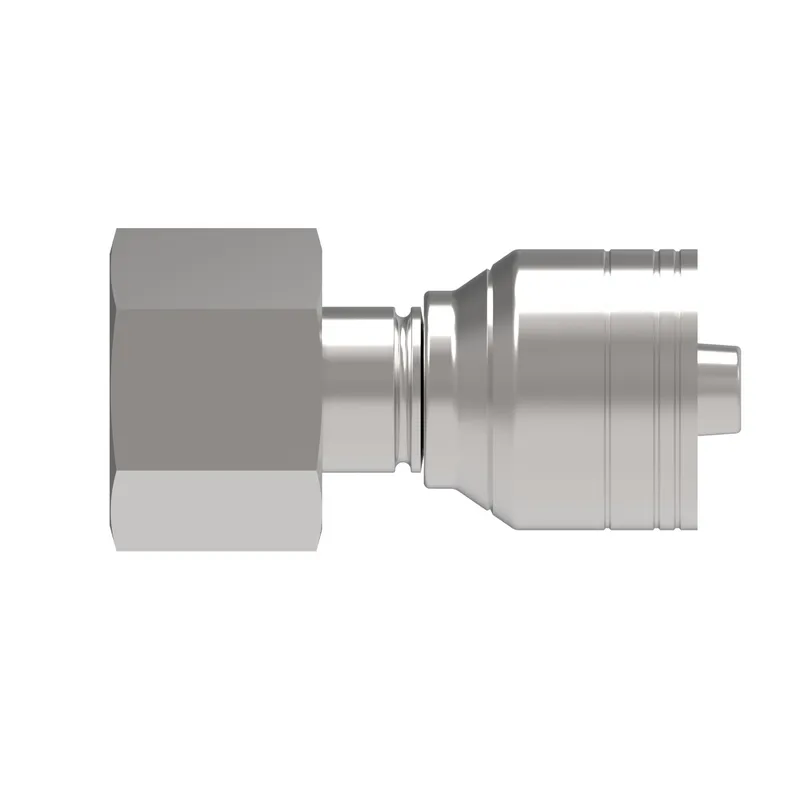

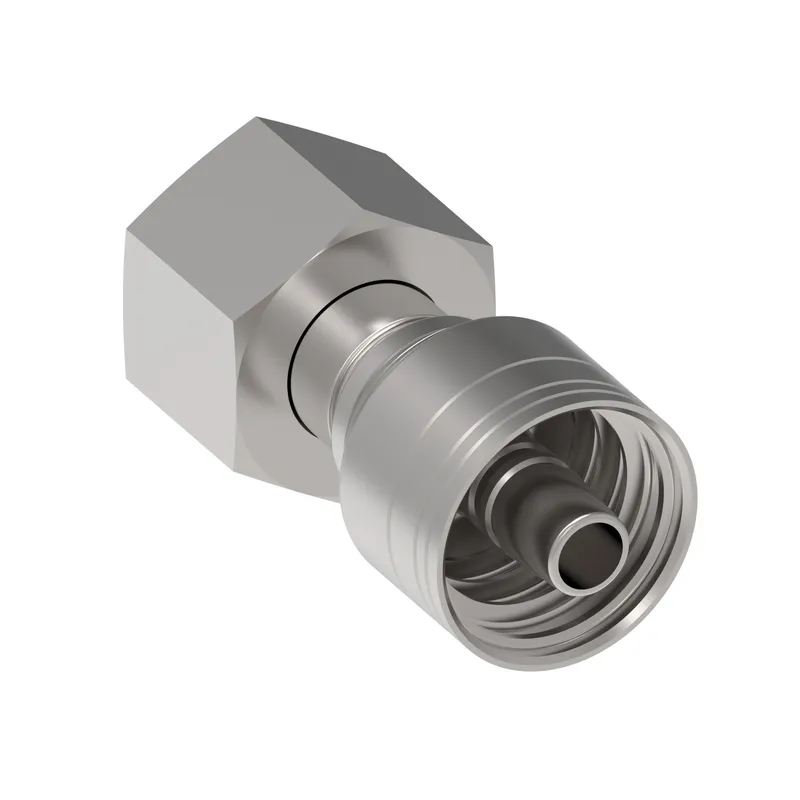

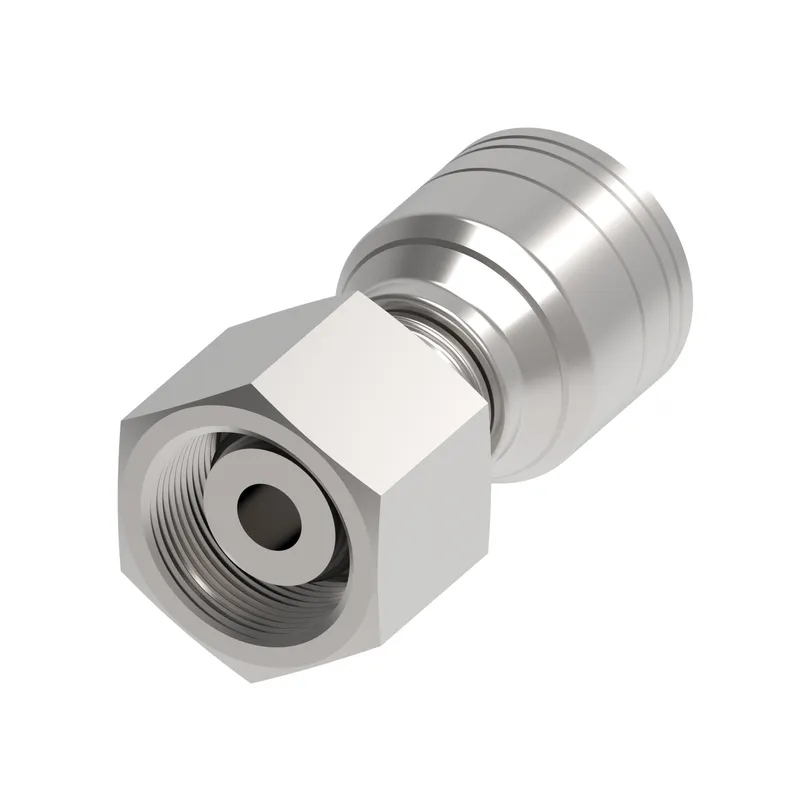

HOSE FTG, 1A/04, DKOH-B/06, AP, STR

MPN: 1AA6DS4C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA6DS4C?

Danfoss HOSE FTG, 1A/04, DKOH-B/06, AP, STR, manufacturer part number 1AA6DS4C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127044
A dimension IN	1.870
A dimension MM	47.500
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	37-44 lb-ft(50-60 Nm)
End size 1	-6
End Type 1	24 deg. DKO swivel heavy duty
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Hose cut off factor IN	1.080
Hose cut off factor MM	27.400
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.010
Product height mm	25.654
Product length in	2.080
Product length mm	52.832
Product material	316 Stainless steel
Product width in	0.880
Product width mm	22.352
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
