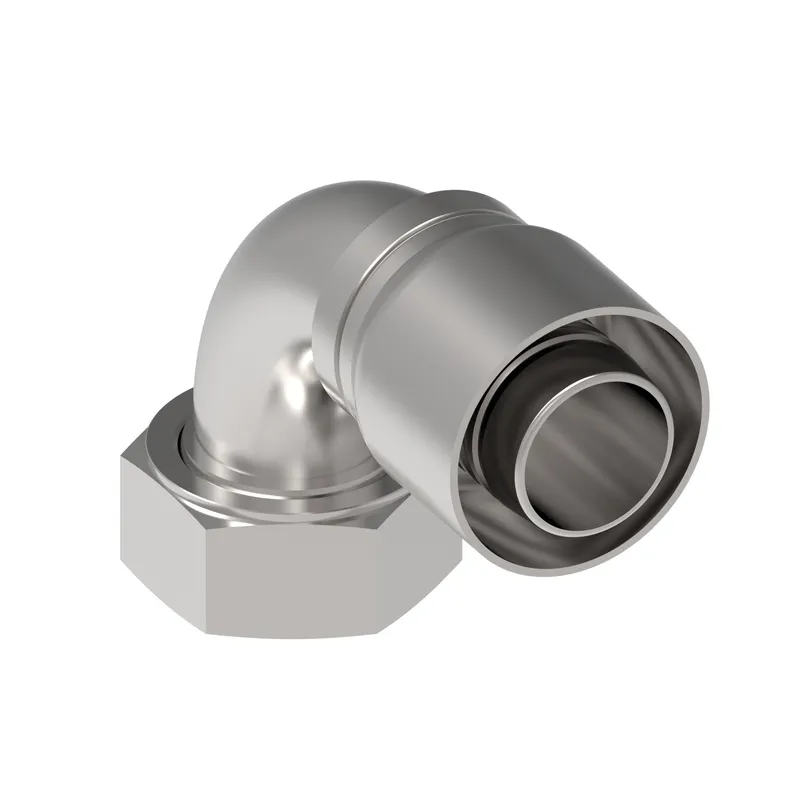

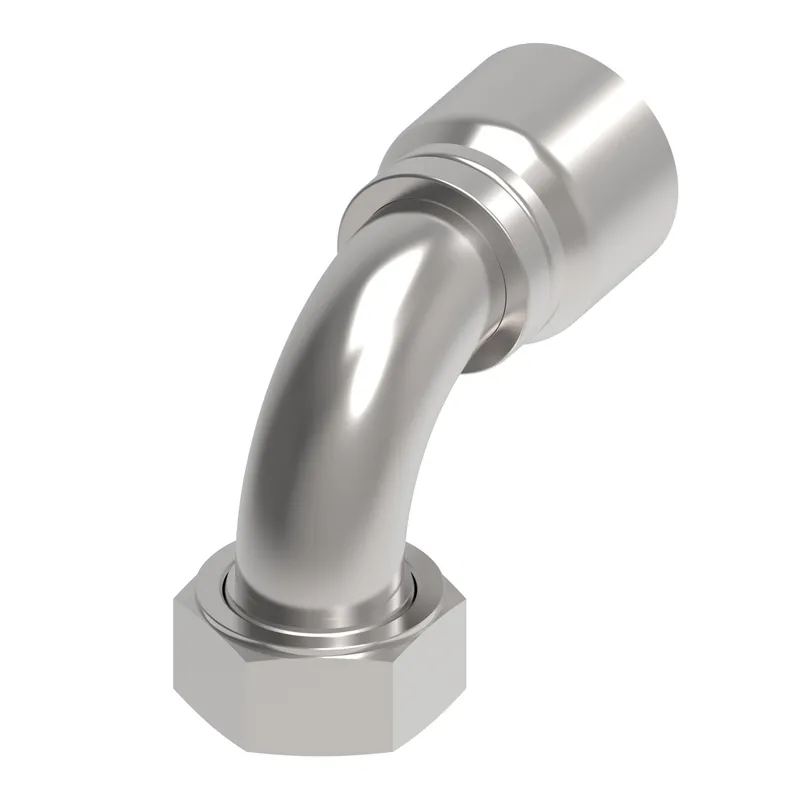

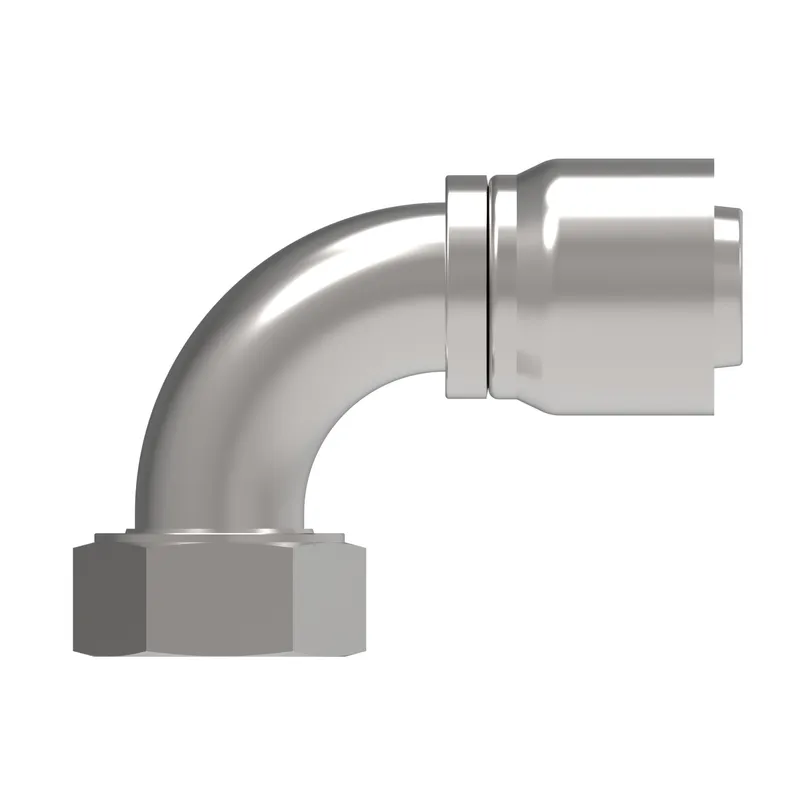

Danfoss 1GA24FRB24

HOSE FTG, 1G/24, ORS-F/24, CS, 90D

MPN: 1GA24FRB24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1GA24FRB24?

Danfoss HOSE FTG, 1G/24, ORS-F/24, CS, 90D, manufacturer part number 1GA24FRB24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.390
A dimension MM	111.900
Angle shape	90 Degree
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Drop dimension IN	2.700
Drop dimension MM	68.60
End connection torque	150-165 lb-ft(204-224 Nm)
End size 1	-24
End Type 1	Female ORFS swivel
Finish plating	Zinc plating
Hose cut off factor IN	2.811
Hose cut off factor MM	71.400
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	4.410
Product height mm	112.014
Product length in	5.750
Product length mm	146.050
Product material	Carbon steel
Product width in	2.590
Product width mm	65.786
Series	OTC
Thread size 1	2-12 UN
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
