Danfoss 1GA4FS4

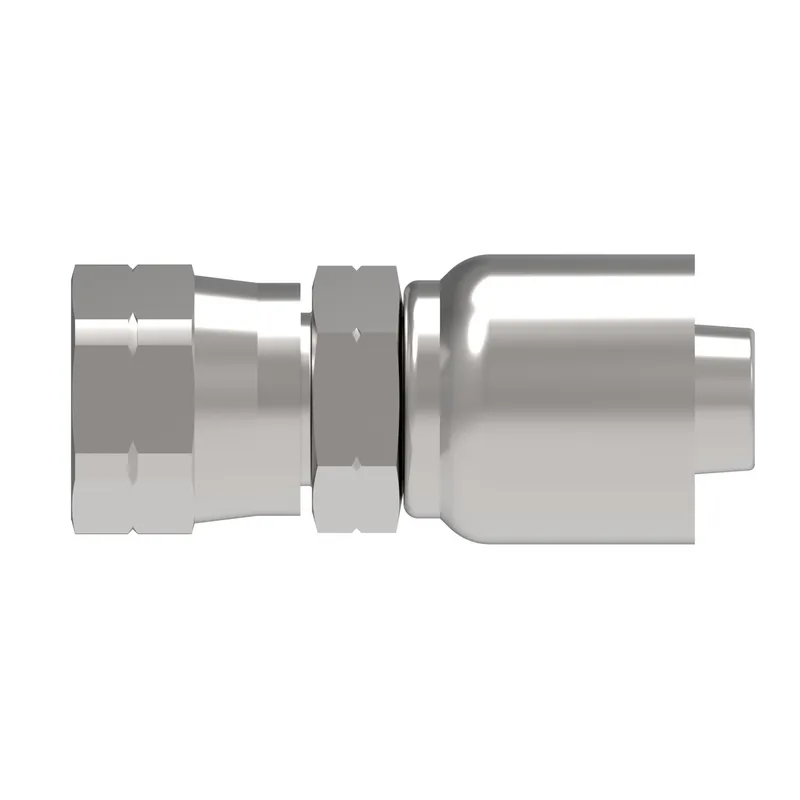

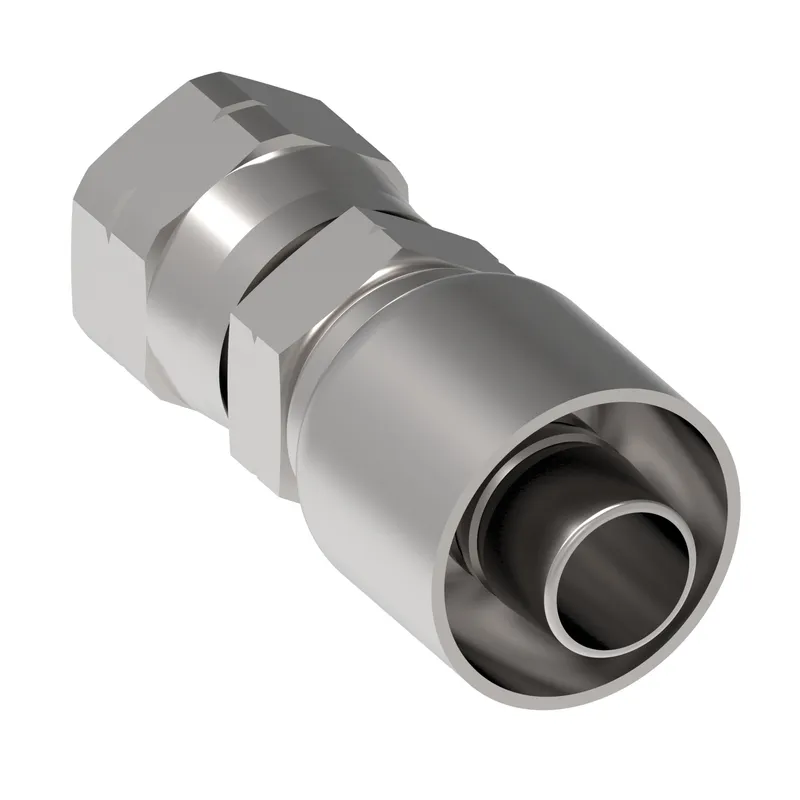

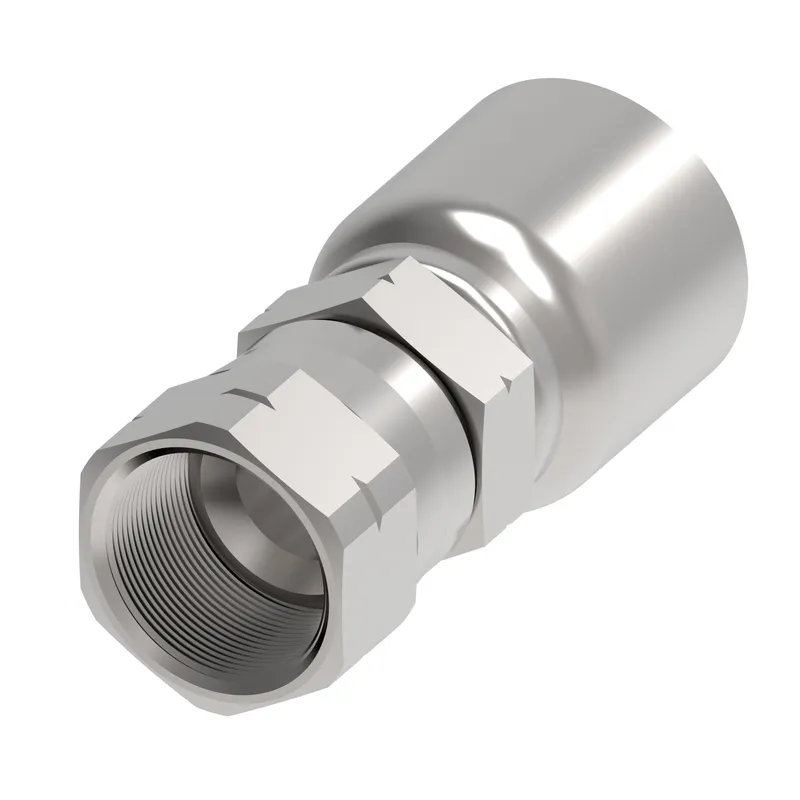

HOSE FTG, 1G/04, FS/04, CS, STR

MPN: 1GA4FS4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1GA4FS4?

Danfoss HOSE FTG, 1G/04, FS/04, CS, STR, manufacturer part number 1GA4FS4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.822
A dimension MM	46.300
Angle shape	Straight
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible hoses	2583, 2661, FC318, FC466, FC498, FC598, FC619, FC699
Construction Style	Crimp
End size 1	-4
End Type 1	Female 45 degree swivel
Finish plating	Zinc plating
Hex size 1 IN	0.563
Hex size 1 MM	14.288
Hex size 2 IN	0.563
Hex size 2 MM	14.000
Hose cut off factor IN	1.070
Hose cut off factor MM	27.178
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.318
Product height in	0.680
Product height mm	17.272
Product length in	2.000
Product length mm	50.800
Product material	Carbon steel
Product width in	0.680
Product width mm	17.272
Series	OTC
Thread sealant	No
Thread size 1	7/16-20 UNF
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
