Danfoss 1GA24FJ24

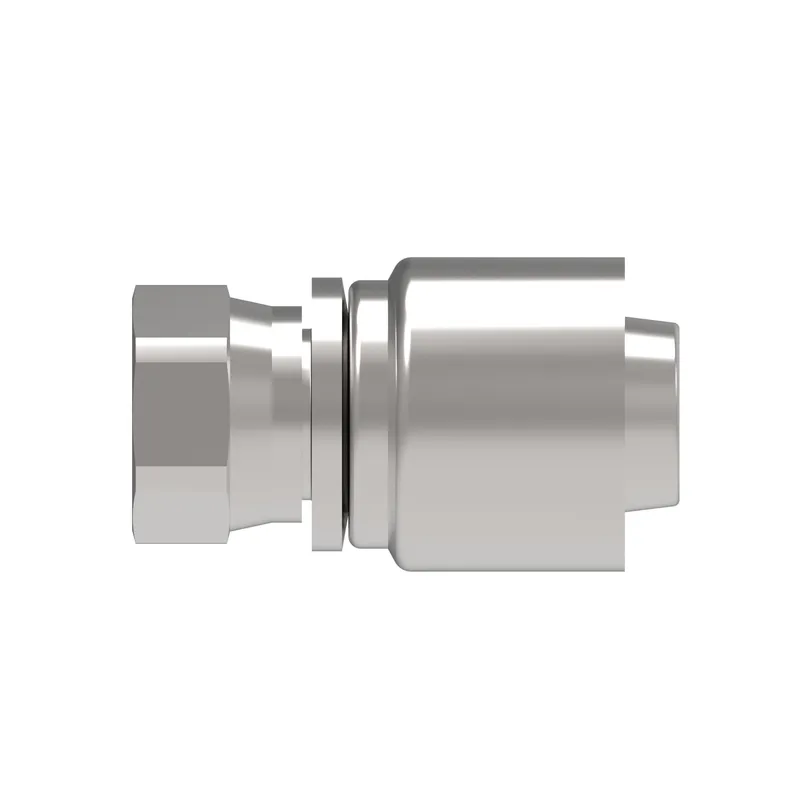

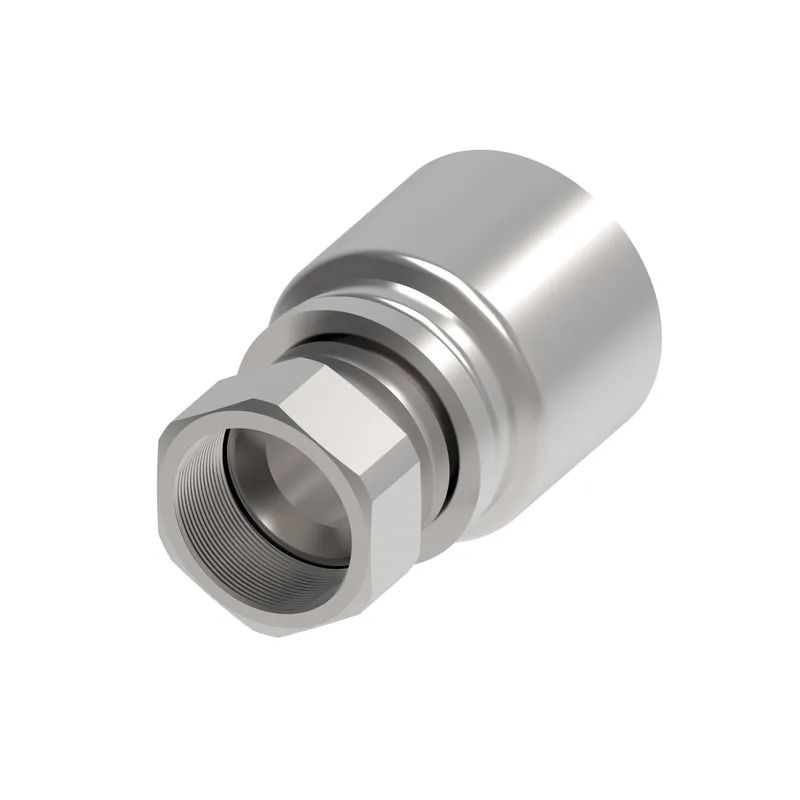

HOSE FTG, 1G/24, JIC-F/24, CS, STR

MPN: 1GA24FJ24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1GA24FJ24?

Danfoss HOSE FTG, 1G/24, JIC-F/24, CS, STR, manufacturer part number 1GA24FJ24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146132925
A dimension IN	3.670
A dimension MM	93.200
Angle shape	Straight
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
End connection torque	158-167 lb-ft(216-227 Nm)
End size 1	-24
End Type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hose cut off factor IN	2.100
Hose cut off factor MM	52.700
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	2.250
Product height mm	57.150
Product length in	3.900
Product length mm	99.060
Product material	Carbon steel
Product width in	2.250
Product width mm	57.15
Series	OTC
Thread size 1	1 7/8-12 UN
Working pressure max BAR	138.00
Working pressure max PSI	2000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
