Danfoss 1G8MCB8

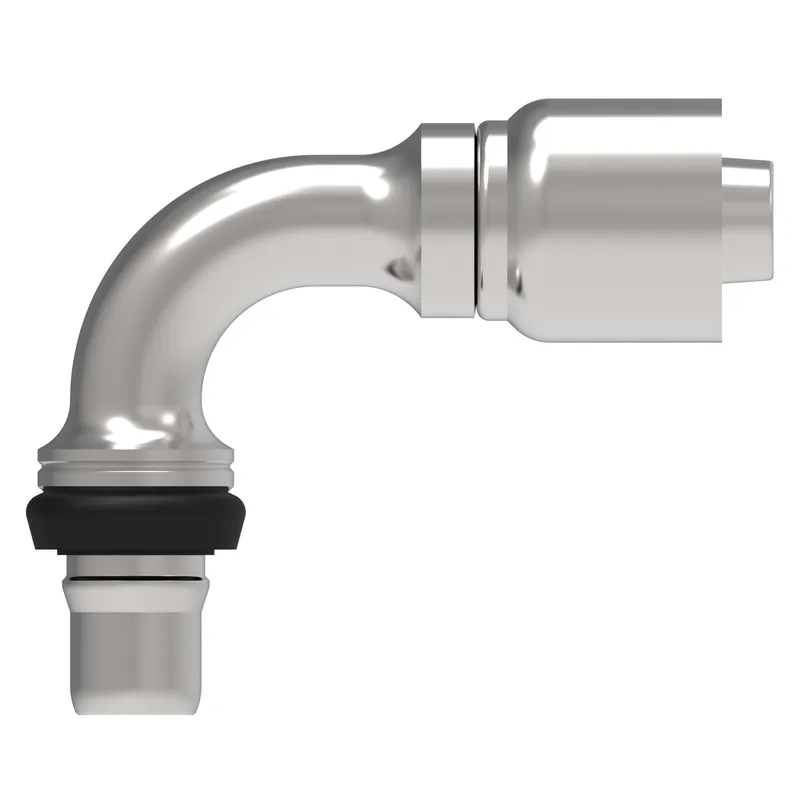

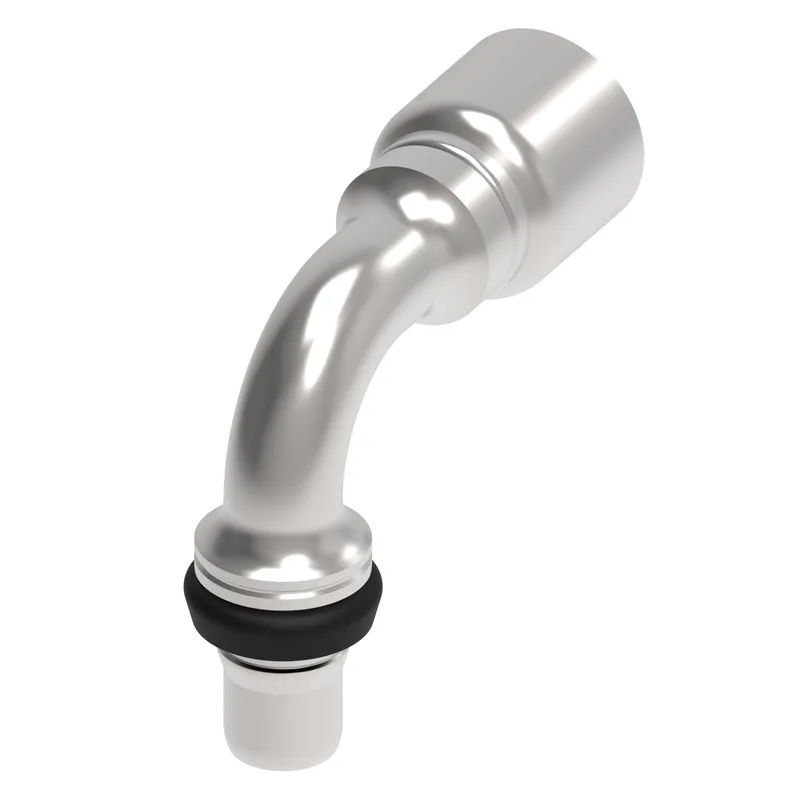

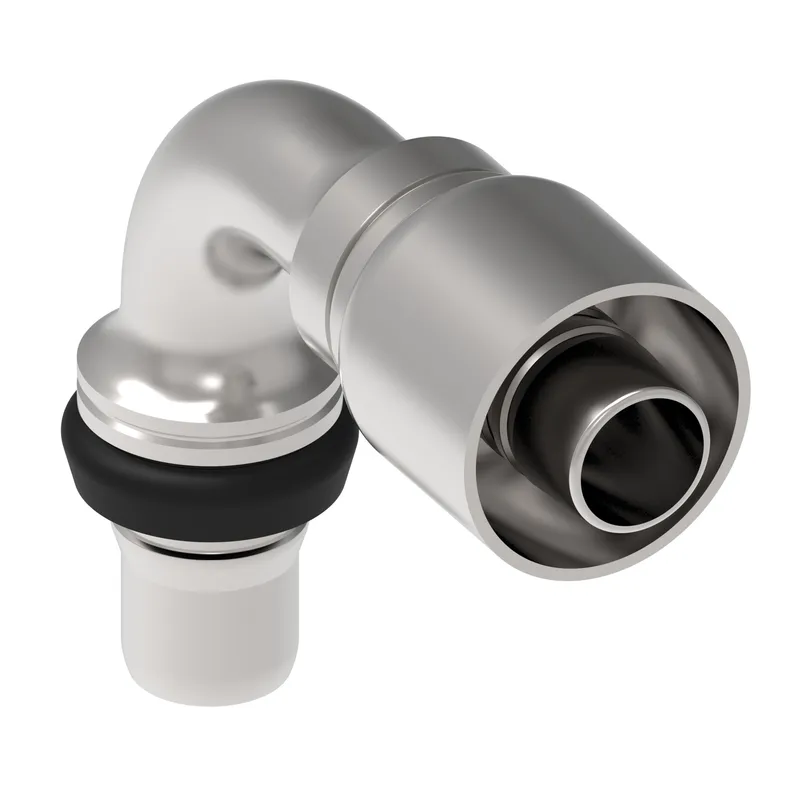

HOSE FTG, 1G/08, STC-M/08, CS, 90D

MPN: 1G8MCB8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G8MCB8?

Danfoss HOSE FTG, 1G/08, STC-M/08, CS, 90D, manufacturer part number 1G8MCB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.830
A dimension MM	72.000
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	2.090
Drop dimension MM	53.09
End size 1	-8
End Type 1	Male STC connector
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	0.000
Hose cut off factor IN	1.420
Hose cut off factor MM	36.068
Hose size	-8
Inside diameter IN	0.350
Inside diameter MM	8.890
Product height in	2.620
Product height mm	66.548
Product length in	3.280
Product length mm	83.312
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Seal material	Hydrogenated Nitrile (HNBR)
Series	OTC
Thread sealant	No
Working pressure max BAR	293
Working pressure max PSI	4250
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1G8MCB8: frequently asked questions

When can 1G8MCB8 be shipped?

1G8MCB8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1G8MCB8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1G8MCB8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G8MCB8, subject to availability and destination.
