Danfoss 1GA6FRA6

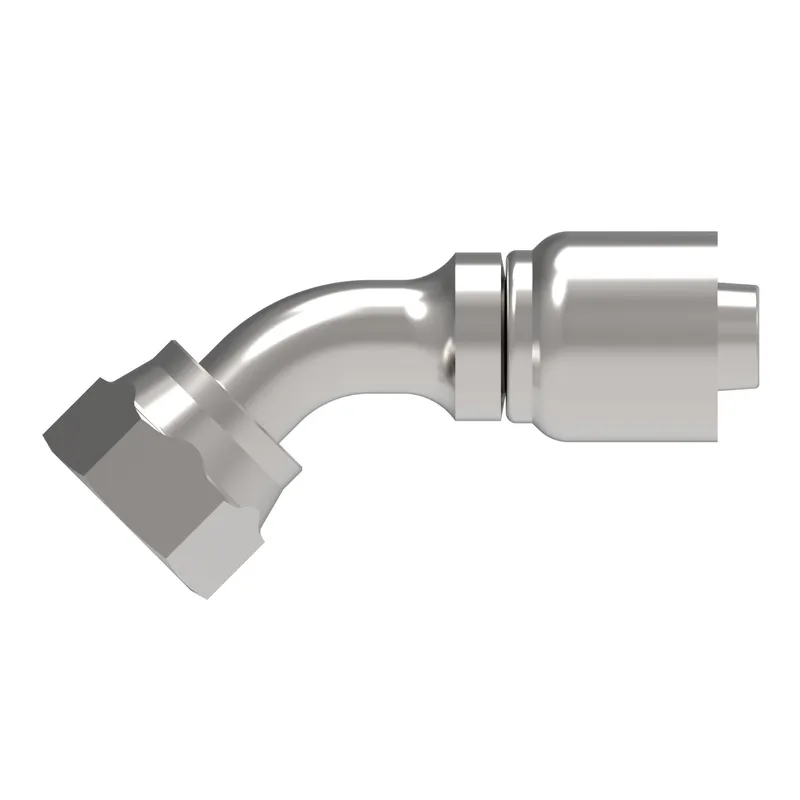

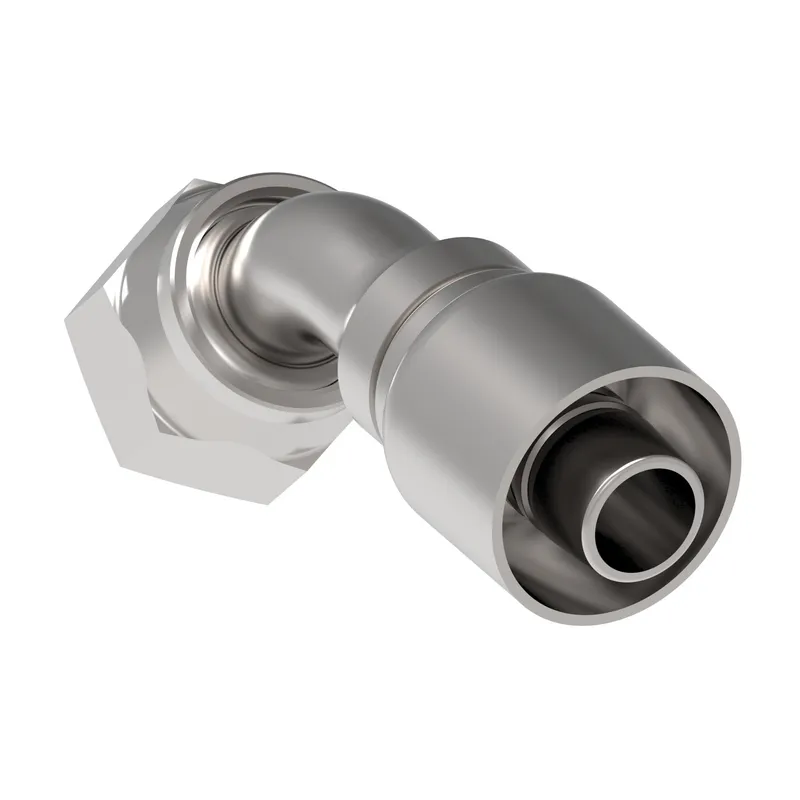

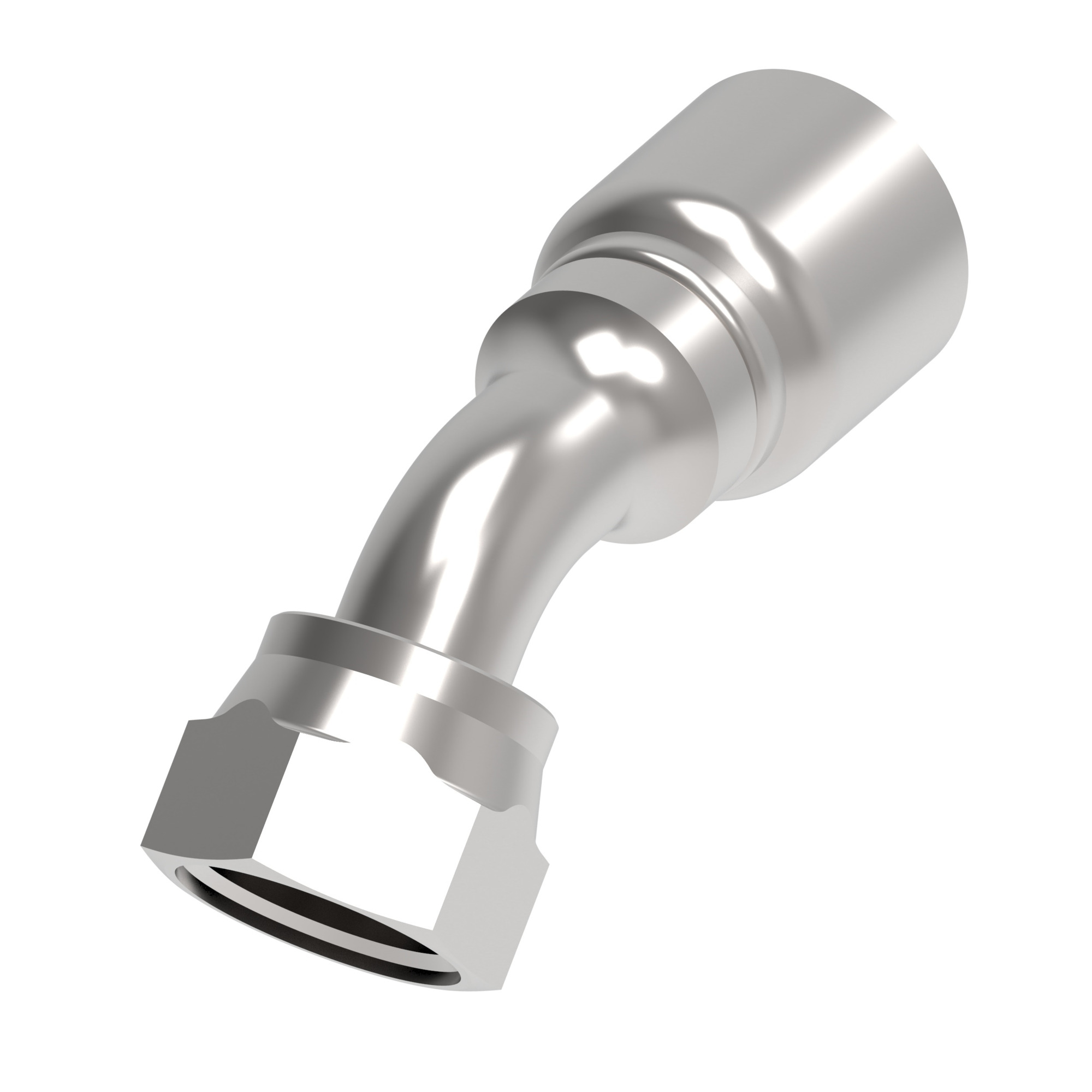

HOSE FTG, 1G/06, ORS-F/06, CS, 45D

MPN: 1GA6FRA6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1GA6FRA6?

Danfoss HOSE FTG, 1G/06, ORS-F/06, CS, 45D, manufacturer part number 1GA6FRA6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.230
A dimension MM	56.600
Angle shape	45 Degree
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	2583, 2661, FC318, FC466, FC498, FC598, FC619, FC699
Construction Style	Crimp
Drop dimension IN	0.430
Drop dimension MM	10.92
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.813
Hex size 1 MM	20.638
Hose cut off factor IN	1.430
Hose cut off factor MM	36.322
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.604
Product height in	1.650
Product height mm	41.910
Product length in	3.190
Product length mm	81.026
Product material	Carbon steel
Product width in	0.930
Product width mm	23.622
Series	OTC
Thread sealant	No
Thread size 1	11/16-16 UN
Working pressure max BAR	621.00
Working pressure max PSI	9100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
