Harmony GTU HMI Parts

Schneider Electric

HMIG5UL8B

Base unit, Harmony GTU, for Univ Panel, EcoStruxure Machine SCADA Expert v8.1+SP2 pre installed

Schneider Electric

HMIG5U

For Universal Panel

Schneider Electric

HMIG3XFH

Base unit, Harmony GTUX, Serie eXtreme Box full Coated

Schneider Electric

HMIG5U2

Base unit, Harmony GTU, , 32GB CFast card

Schneider Electric

HMIG3X

Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated

Schneider Electric

HMIG3UFC

Base unit, Harmony GTU, Premium BOX for Universal Panel

Schneider Electric

HMIG5U22FC

Base unit, Harmony GTU, , Universal Panel, with HMI software installed

Schneider Electric

HMIDT351

Advanced touchscreen panel, Harmony GTU, 7inch wide display, 800 x 480pixels WVGA

Schneider Electric

HMIDT551

Advanced touchscreen panel, Harmony GTU, 10inch wide display

Schneider Electric

HMIDT651

Advanced touchscreen panel, Harmony GTU, 12inch wide display, 1280 x 800pixels WVGA

Schneider Electric

HMIDT952

Flat screen, Harmony GTU, 19inch wide display, 1366 x 768pixels FWXGA

Schneider Electric

HMIDT752

Flat screen, Harmony GTU, 15inch wide display, 1366 x 768pixels FWXGA

Schneider Electric

HMIDT542

Flat screen, Harmony GTU, 10.4inch wide display

Schneider Electric

HMIDT642

Flat screen, Harmony GTU, 12.1inch wide display

Schneider Electric

HMIDT732

Flat screen, Harmony GTU, 15inch wide display, 1024 x 768pixels XGA

Schneider Electric

HMIG5U22

Base unit, Harmony GTU, Windows 10, Universal Panel, with HMI software installed

Schneider Electric

HMIG5U21

Base unit, Harmony GTU, Windows 10, Universal Panel, without HMI software installed

Schneider Electric

HMIG3U

Base unit, Harmony GTU, premium box, 1GB SD card

Schneider Electric

HMIG2U

Base unit, Harmony GTU, standard box, 1GB built-in flash memory

Schneider Electric

HMIZMDARX

Multi Display Adapter for Harmony GTU

Schneider Electric

XBTZGUMP

USB gateway, Harmony XBT, Modbus Plus terminal

Schneider Electric

MPCYK50SPSKIT

Disposable, dirt-resistant sheet for the 15' display (set of 5 ), Harmony GTU/P6/FP6

Schneider Electric

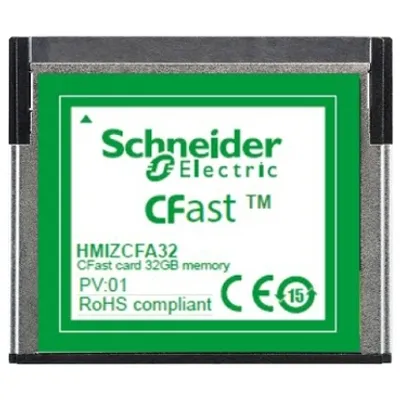

HMIZCFA32S

Memory cartridge, Harmony GTU, CFast card 32 GB system

Schneider Electric

HMIZSD1GS

Memory cartridge, Harmony GTU, 1GB SD card

Compare Harmony GTU HMI

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product or component type	Width	Height	Net weight	Ambient air temperature for operation
HMIG5UL8B	Base unit	188 mm	131 mm	0.9 kg	0…60 °C
HMIG5U	Base unit	188 mm	131 mm	0.9 kg	0…60 °C
HMIG3XFH	Base unit	188 mm	131 mm	0.9 kg	-30…70 °C conforming to IEC 61131-2
HMIG5U2	Base unit	188 mm	131 mm	0.9 kg	0…60 °C
HMIG3X	Base unit	188 mm	131 mm	0.9 kg	-30…70 °C
HMIG3UFC	Base unit	188 mm	131 mm	0.9 kg	0…60 °C
HMIG5U22FC	Base unit	188 mm	131 mm	0.9 kg	0…60 °C
HMIDT351	Advanced touchscreen panel	203.6 mm	148.6 mm	1.2 kg	0…60 °C conforming to IEC 61131-2
HMIDT551	Advanced touchscreen panel	268.5 mm	198.5 mm	2.5 kg	0…60 °C conforming to IEC 61131-2
HMIDT651	Advanced touchscreen panel	308.5 mm	230.5 mm	3 kg	0…60 °C conforming to IEC 61131-2
HMIDT952	Flat screen	483 mm	337 mm	6.8 kg	0…55 °C conforming to IEC 61131-2
HMIDT752	Flat screen	414 mm	295 mm	5 kg	0…55 °C conforming to IEC 61131-2
HMIDT542	Flat screen	272.5 mm	214.5 mm	2.7 kg	0…60 °C conforming to IEC 61131-2
HMIDT642	Flat screen	315 mm	241 mm	3 kg	0…60 °C conforming to IEC 61131-2
HMIDT732	Flat screen	397 mm	296 mm	4.5 kg	0…60 °C conforming to IEC 61131-2
HMIG5U22	Base unit	188 mm	131 mm	0.9 kg	0…60 °C
HMIG5U21	Base unit	188 mm	131 mm	0.9 kg	0…60 °C
HMIG3U	Base unit	188 mm	131 mm	0.9 kg	0…60 °C
HMIG2U	Base unit	188 mm	131 mm	0.9 kg	0…60 °C
HMIZMDARX	—	188 mm	131 mm	0.8 kg	0…60 °C
XBTZGUMP	—	—	—	—	—
MPCYK50SPSKIT	—	—	—	—	—
HMIZCFA32S	Memory cartridge	—	—	—	—
HMIZSD1GS	Memory cartridge	—	—	—	—
