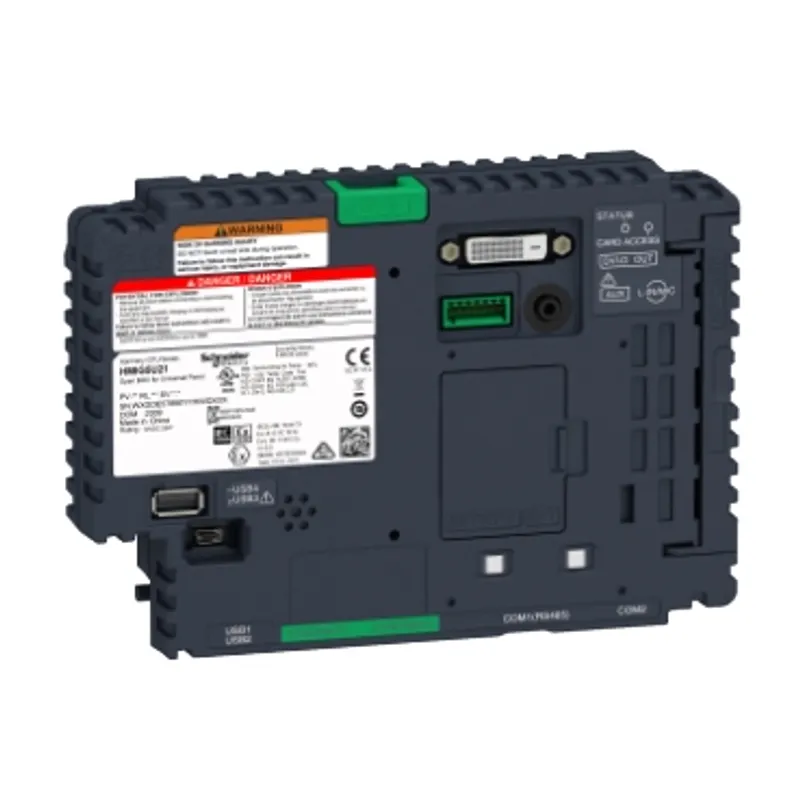

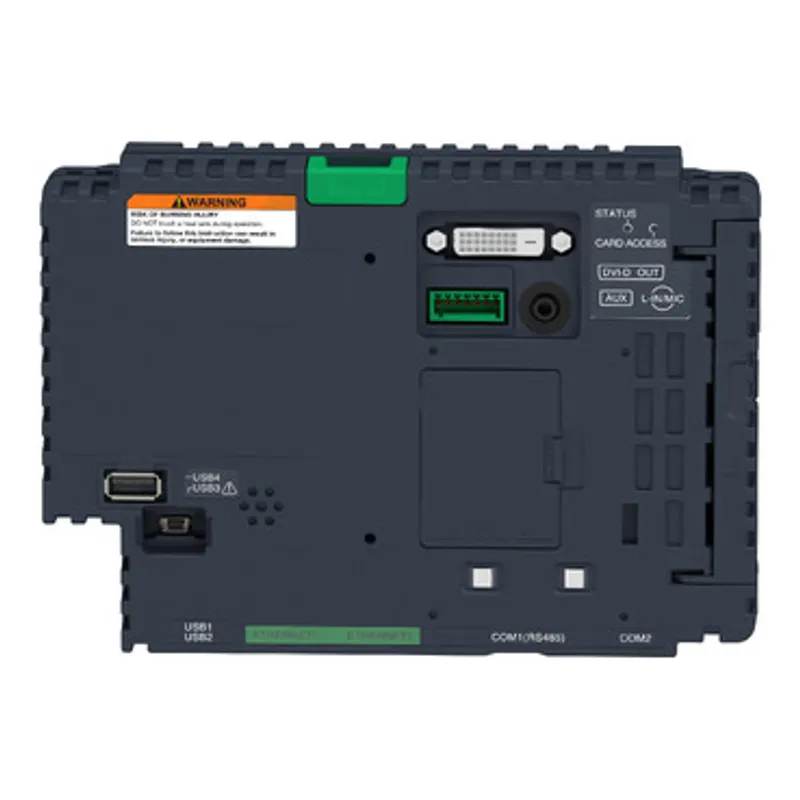

Schneider Electric HMIG5U21
Base unit, Harmony GTU, Windows 10, Universal Panel, without HMI software installed
- MPN
- HMIG5U21
- EAN
- 3606481893222
- Category
- Harmony GTU HMI
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric HMIG5U21?
This product is part of the Harmony GTU range, an offer of High performance IoT-ready modular HMI panels from 7 inch to 19 inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 4GB. This open box supports Windows 10 IoT Enterprise 2019 LTSC 32bit operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is not installed with HMI software. This product is certified by ATEX, IECEx, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. Harmony GTU (formerly known as Magelis GTU) are universal panels that include smartphone-like interface and Wireless technology. They offer unmatched comfort of use with no compromise on performance and openness.
Specifications
Specifications
| Range of product | Harmony GTU |
| Product or component type | Base unit |
| Device short name | Open Box |
| Range compatibility | Harmony GTU |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Integrated connection type | Ethernet TCP/IP with 2 RJ45, COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s, Auxiliary port terminal block, USB 2.0 port mini B USB, DVI-D video port DVI-D, Microphone mini-jack, USB 2.0 port with 3 USB type A |
| Communication port protocol | Modbus, Modbus TCP/IP, Uni-Telway |
| Software package | Vijeo Designer |
| Processor name | ARM Cortex-A9 |
| Data storage equipment | 32 GB CFast card |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Memory description | 512 KB NVRAM backup memory, 4 GB RAM internal |
| Number of slots | 1 slot(s) for SD card, 2 slot(s) for Cfast card |
| Realtime clock | Built-in |
| Local signalling | LED, multi-colour for status |
| Type of cooling | Natural convection |
| Width | 188 mm |
| Height | 131 mm |
| Depth | 45 mm |
| Net weight | 0.9 kg |
| Standards | CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213, IEC 61132-2 |
| Product certifications | CE, CULus, ATEX, IEC-Ex, RCM, DNV-GL, KC, CUL, EAC, UKCA, UKEX |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -20…60 °C |
| Pollution degree | 2 conforming to IEC 61131-2 ed.3 |
| Relative humidity | 10…90 % non-condensing |
| Vibration resistance | 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Packaging
| Package 1 | 1 PCE, 26.500 cm × 21.500 cm × 14.500 cm (L × W × H), 1.216 kg |
| Package 2 | 4 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 6.026 kg |
