Schneider Electric HMIG3X – Base unit, Harmony GTUX, Serie eXtreme Box Outdoor use, Rugged, Coated
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony GTU HMI |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | CN |
| UPC / EAN | 3606489747930 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can HMIG3X be shipped?
HMIG3X is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up HMIG3X in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for HMIG3X and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMIG3X, subject to availability and destination.
"This product is part of the Harmony GTUX range, an offer of eXtreme Box modules." "These eXtreme outdoor Box modules are a high-performance range of HMIs that are ideal for harsh outdoor environments." "It is designed with backup memory of NVRAM 512kB, system memory of 1GB, and internal RAM of 256MB." "It offers atmospheric resistance with partial conformal coating." "It comes with 2x Ethernet TCP/IP protocol and can operate between temperature range of -30 to 70 °C." "This product works at a power consumption of 29W and a rated voltage from 12V to 24V DC." "Its dimensions are 188mm (width) x 131mm (height) x 45mm (depth) and weighs 0.9 kg." "It is compatible with HMIDT35X, HMIDT65X, HMIDT75X displays." "It is CE certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards." "Harmony GTUX provides powerful visualization and control in extreme environment fully integrated into EcoStruxure Machine Expert software." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Harmony GTUX |
| Product or component type | Base unit |
| Device short name | eXtreme Box |
| [Us] rated supply voltage | 12 V DC power supply |
| Power consumption in W | 20.0 W |
Complementary
| Integrated connection type | Ethernet TCP/IP with 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T; COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s; COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s; COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s; COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s; Auxiliary port terminal block; Expansion unit fieldbus card; USB 2.0 port with 2 USB type A; USB 2.0 port mini B USB |
| Communication port protocol | Modbus TCP/IP; Modbus serial; Uni-Telway |
| Software package | EcoStruxure Operator Terminal Expert; Vijeo Designer |
| Processor name | ARM Cortex-A9 |
| Data storage equipment | 1 GB SD card |
| Memory description | 256 MB RAM internal (2 x 13 mm board); 512 KB NVRAM backup memory |
| Number of slots | 2 slot(s) for SD card |
| Type of cooling | Natural convection |
| Width | 188 mm |
| Height | 131 mm |
| Depth | 45 mm |
| Net weight | 0.9 kg |
Environment
| Standards | UL 61010; UL 121201; CSA C22.2 No 213; CSA C22.2 No 61010-1; IEC 61132-2 |
| Product certifications | CE; KC; RCM; EAC; ATEX zone 2/22; IEC-Ex; UL; CSA; UKCA; UKEX |
| Resistance to fast transients | 1 kV (signal ports) conforming to IEC 61000-4-4; 2 kV (power ports) conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 6 kV contact discharge conforming to IEC 61000-4-2 level 3; 8 kV air discharge conforming to IEC 61000-4-2 level 3 |
| Ambient air temperature for operation | -30…70 °C |
| Ambient air temperature for storage | -30…70 °C |
| Pollution degree | 2 conforming to IEC 61131-2 ed.3 |
| Environmental characteristic | Corrosive gas free |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| Vibration resistance | 7 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2; 19.6 m/s² (f = 9…150 Hz) conforming to IEC 61131-2 |
| Shock resistance | 392 m/s² (X, Y, Z directions for 3 times) conforming to IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet HMIG3X |
More Schneider Electric parts
Available on requestLicense, EcoStruxure Operator Terminal Expert, runtime, single, 1 station, perpetual, digital
Available on requestbase unit, Harmony GTU, standard box, 1GB built-in flash memory
Available on requestbase unit, Harmony GTU, premium box, 1GB SD card

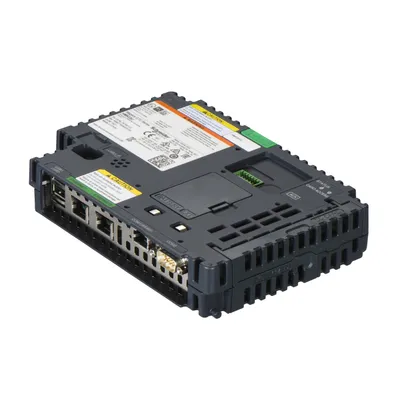

Available on requestBase unit, Harmony GTU, Premium BOX for Universal Panel
Available on requestBase unit, Harmony GTUX, Serie eXtreme Box full Coated
Available on requestOpen BOX for Universal Panel

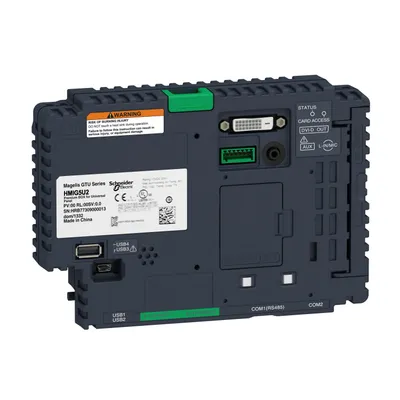

Available on requestbase unit, Harmony GTU, open box, 32GB CFast card
