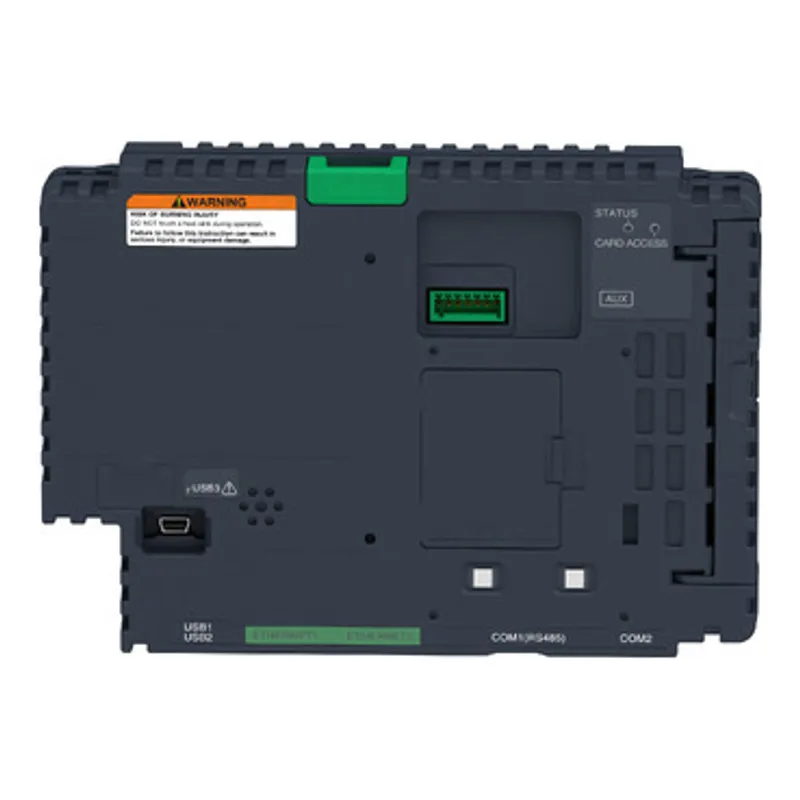

Schneider Electric HMIG3U
Base unit, Harmony GTU, premium box, 1GB SD card
- MPN
- HMIG3U
- EAN
- 3606480687204
- Category
- Harmony GTU HMI
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric HMIG3U?
This Magelis GTU premium box module has 256MB of RAM, a RISC CPU, 2 SD card slots, including a 1GB pre-installed card. It also has 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port and 1 Ethernet TCP/IP port. This universal premium box is designed for building advanced HMI systems together with Magellis universal GTU panels. It also offers a LED power indicator and a lock button to attach the box module and display. It has high performance RISC CPU for low latency display and automation. Its RS485 and Ethernet ports, ideal to supervise and control complex systems and machines.
Specifications
Specifications
| Range of product | Harmony GTU |
| Product or component type | Base unit |
| Device short name | Premium Box |
| Range compatibility | Harmony GTU |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Integrated connection type | Ethernet TCP/IP with 2 RJ45, COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s, COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s, Auxiliary port terminal block, Expansion unit fieldbus card, USB 2.0 port with 2 USB type A, USB 2.0 port mini B USB |
| Communication port protocol | Modbus, Modbus TCP/IP, Uni-Telway |
| Software package | Vijeo Designer |
| Processor name | ARM Cortex-A9 |
| Data storage equipment | 1 GB SD card |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Memory description | 256 MB RAM internal (2 x 13 mm board), 512 KB NVRAM backup memory |
| Type of cooling | Natural convection |
| Width | 188 mm |
| Height | 131 mm |
| Depth | 45 mm |
| Net weight | 0.9 kg |
| Standards | CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213, IEC 61132-2 |
| Product certifications | CE, CULus, ATEX, IEC-Ex, RCM, GL, KC, CUL, EAC, ABS, BV, CCS, DNV, LR, RINA, UKCA, UKEX |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -20…60 °C |
| Pollution degree | 2 conforming to IEC 61131-2 ed.3 |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| Vibration resistance | 3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2, 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Packaging
| Package 1 | 1 PCE, 26.500 cm × 21.500 cm × 14.500 cm (L × W × H), 1.196 kg |
| Package 2 | 4 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 5.943 kg |
| Package 3 | 16 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 32.772 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
HMIG3U: frequently asked questions
When can HMIG3U be shipped?
HMIG3U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up HMIG3U in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for HMIG3U and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMIG3U, subject to availability and destination.
