Schneider Electric HMIG5U22FC

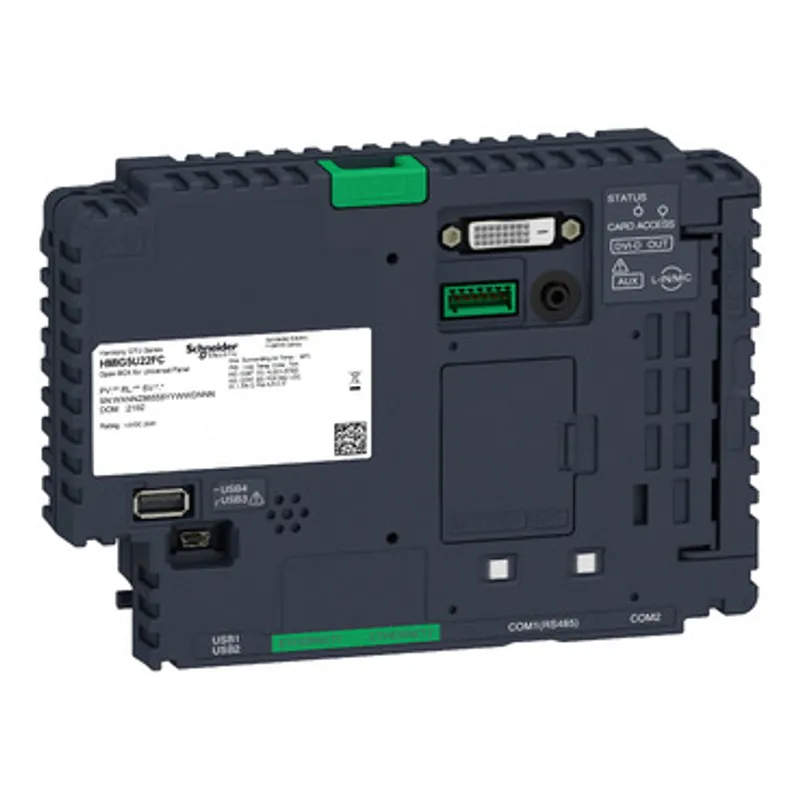

Base unit, Harmony GTU, , Universal Panel, with HMI software installed

MPN: HMIG5U22FC
Category: Harmony GTU HMI

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMIG5U22FC?

Schneider Electric base unit, Harmony GTU, Open BOX , Universal Panel, with HMI software installed, manufacturer part number HMIG5U22FC. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range of product	Harmony GTU
Product or component type	Base unit
Device short name	Open Box
Range compatibility	Harmony GTU
[Us] rated supply voltage	12...24 V DC power supply
Integrated connection type	Ethernet TCP/IP with 2 RJ45, COM1 serial link RJ45 RS485, transmission rate: 2400...115200 bps, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 2400...115200 bps, Auxiliary port terminal block, USB 2.0 port mini B USB, DVI-D video port DVI-D, Microphone mini-jack, USB 2.0 port with 3 USB type A
Communication port protocol	Modbus, Modbus TCP/IP, Uni-Telway
Software package	Vijeo Designer
Processor name	ARM Cortex-A9
Data storage equipment	32 GB CFast card
Port Ethernet	10BASE-T/100BASE-TX/1000BASE-T
Memory description	512 KB NVRAM backup memory, 4 GB RAM internal
Number of slots	1 slot(s) for SD card, 2 slot(s) for Cfast card
Realtime clock	Built-in
Local signalling	LED, multi-colour for status
Type of cooling	Natural convection
Width	188 mm
Height	131 mm
Depth	45 mm
Net weight	0.9 kg
Standards	CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213, IEC 61132-2
Product certifications	CE, CULus, ATEX, IEC-Ex, RCM, DNV-GL, KC, CUL, EAC, UKCA, UKEX
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-20…60 °C
Pollution degree	2 conforming to IEC 61131-2 ed.3
Relative humidity	10…90 % non-condensing
Operating altitude	2000
Vibration resistance	3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2, 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2
Shock resistance	147 m/s² conforming to IEC 61131-2
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Packaging

Package 1	1 PCE, 26.0 cm × 21.0 cm × 13.5 cm (L × W × H), 1.202 kg
Package 2	4 S04, 60.0 cm × 40.0 cm × 30.0 cm (L × W × H), 5.86 kg
