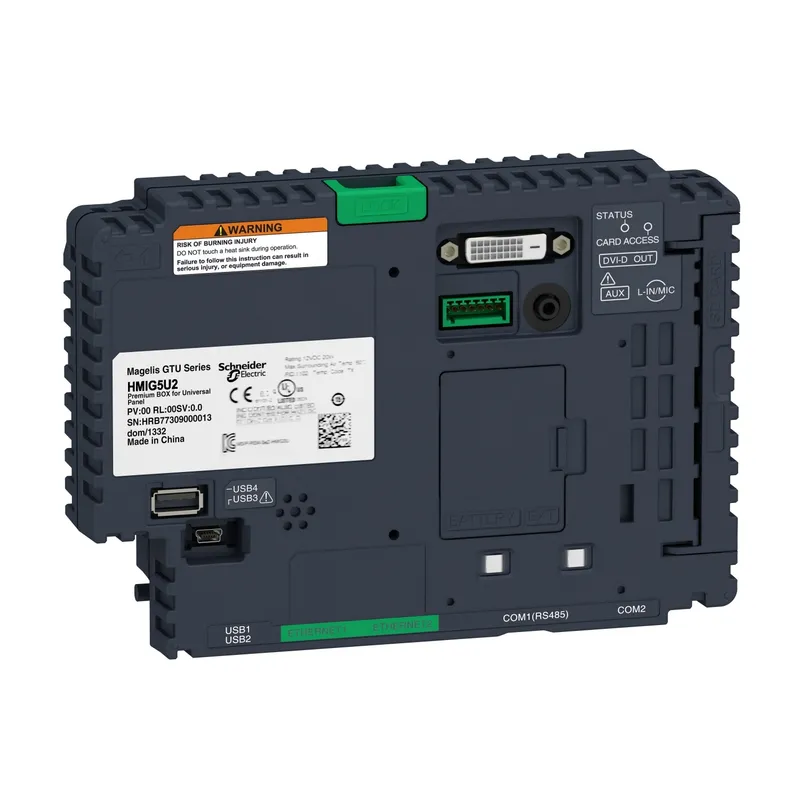

Schneider Electric HMIG5UL8B

Base unit, Harmony GTU, for Univ Panel, EcoStruxure Machine SCADA Expert v8.1+SP2 pre installed

MPN
HMIG5UL8B
EAN
3606489818517
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original HMIG5UL8B (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMIG5UL8B?

Schneider Electric HMIG5UL8B — Base unit, Harmony GTU, Open BOX for Univ Panel, EcoStruxure Machine SCADA Expert v8.1+SP2 pre installed. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productHarmony GTU
Product or component typeBase unit
Device short nameOpen Box
Range compatibilityHarmony GTU; Allen-Bradley; ABB; MitsubishI; Omron; Siemens
[Us] rated supply voltage12...24 V DC power supply

Complementary

Integrated connection typeEthernet TCP/IP with 2 RJ45; COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s; COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s; Auxiliary port terminal block; Expansion unit fieldbus card; USB 2.0 port mini B USB; DVI-D video port DVI-D; Microphone mini-jack; USB 2.0 port with 3 USB type A
Communication port protocolModbus; Modbus TCP/IP; Uni-Telway
Operating systemWindows Embedded 7
Software packageInternet Explorer; EcoStruxure machine SCADA expert trial version; .NET framework 4.0; Adobe PDF reader; Multimedia player; Office reader; VNC client/server
Processor nameIntel X86 1.33 GHz
Data storage equipment32 GB CFast card
Port Ethernet10BASE-T/100BASE-TX/1000BASE-T
Memory description512 KB NVRAM backup memory; 2 GB RAM internal
Number of slots1 slot(s) for SD card; 2 slot(s) for Cfast card
Realtime clockBuilt-in
Local signallingLED, multi-colour for status
Type of coolingNatural convection
Width188 mm
Height131 mm
Depth45 mm
Net weight0.9 kg

Environment

StandardsCSA C22.2 No 142; ANSI/ISA 12-12-01; UL 508; Class I division 2 CSA C22.2 No 213; IEC 61132-2
Product certificationsCE; CULus; ATEX; IEC-Ex; RCM; GL; KC; CUL; EAC; ABS; BV; CCS; DNV; LR; RINA
Resistance to fast transients1 kV (signal ports) conforming to IEC 61000-4-4; 2 kV (power ports) conforming to IEC 61000-4-4
Resistance to electrostatic discharge6 kV contact discharge conforming to IEC 61000-4-2 level 3; 8 kV air discharge conforming to IEC 61000-4-2 level 3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-20…60 °C
Pollution degree2 conforming to IEC 61131-2 ed.3
Relative humidity10…90 % non-condensing
Operating altitude2000 m
Vibration resistance3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2
Shock resistance147 m/s² conforming to IEC 61131-2
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

HMIG5UL8B: frequently asked questions

Can I still buy the HMIG5UL8B now that it is discontinued?

Yes. Schneider Electric has discontinued the HMIG5UL8B, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can HMIG5UL8B be shipped?

HMIG5UL8B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HMIG5UL8B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HMIG5UL8B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMIG5UL8B, subject to availability and destination.
