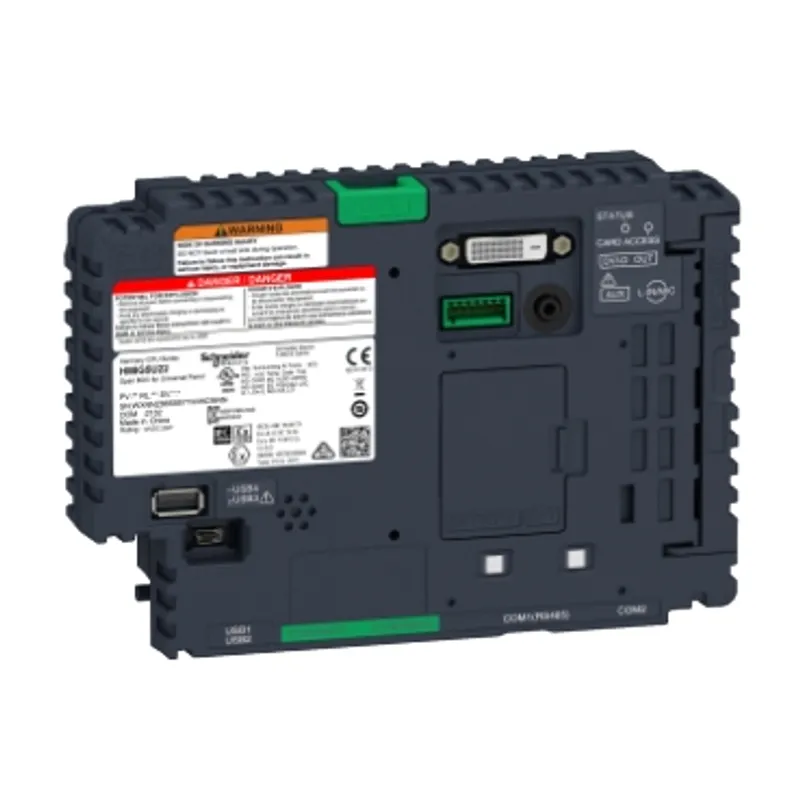

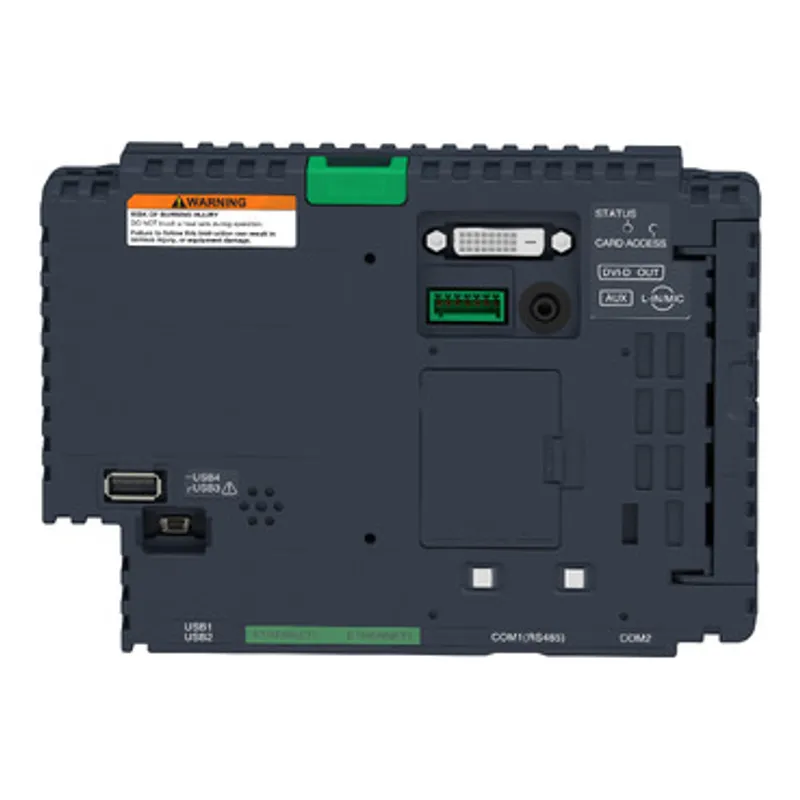

Schneider Electric HMIG5U22
Base unit, Harmony GTU, Windows 10, Universal Panel, with HMI software installed
- MPN
- HMIG5U22
- EAN
- 3606481058751
- Category
- Harmony GTU HMI
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric HMIG5U22?
This product is part of the Pro-face SP5000 range, an offer of High performance IoT-ready modular HMI panels from 7 inch to 19 inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 4GB. This open box supports Windows 10 IoT Enterprise 2019 LTSC 32bit operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is not installed with HMI software. This product is certified by ATEX, IECEx, Ex CCC, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. As a flagship model, SP5000 series, "Smart Portal", is available. SP5000 series offers unprecedented solutions for utilization of increasingly sophisticated information.
Specifications
Specifications
| Range of product | Harmony GTU |
| Product or component type | Base unit |
| Device short name | Open Box |
| Range compatibility | Harmony GTU |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Integrated connection type | Ethernet TCP/IP with 2 RJ45, COM1 serial link RJ45 RS485, transmission rate: 2400...115200 bps, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 2400...115200 bps, Auxiliary port terminal block, USB 2.0 port mini B USB, DVI-D video port DVI-D, Microphone mini-jack, USB 2.0 port with 3 USB type A |
| Communication port protocol | Modbus, Modbus TCP/IP, Uni-Telway |
| Software package | Vijeo Designer |
| Processor name | ARM Cortex-A9 |
| Data storage equipment | 32 GB CFast card |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Memory description | 512 KB NVRAM backup memory, 4 GB RAM internal |
| Number of slots | 1 slot(s) for SD card, 2 slot(s) for Cfast card |
| Realtime clock | Built-in |
| Local signalling | LED, multi-colour for status |
| Type of cooling | Natural convection |
| Width | 188 mm |
| Height | 131 mm |
| Depth | 45 mm |
| Net weight | 0.9 kg |
| Standards | CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213, IEC 61132-2 |
| Product certifications | CE, CULus, ATEX, IEC-Ex, RCM, DNV-GL, KC, CUL, EAC, UKCA, UKEX |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -20…60 °C |
| Pollution degree | 2 conforming to IEC 61131-2 ed.3 |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 |
| Vibration resistance | 3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2, 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2 |
| Shock resistance | 147 m/s² conforming to IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Packaging
| Package 1 | 1 PCE, 26.500 cm × 21.500 cm × 14.500 cm (L × W × H), 1.217 kg |
| Package 2 | 4 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 6.055 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
HMIG5U22: frequently asked questions
When can HMIG5U22 be shipped?
HMIG5U22 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up HMIG5U22 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for HMIG5U22 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMIG5U22, subject to availability and destination.
