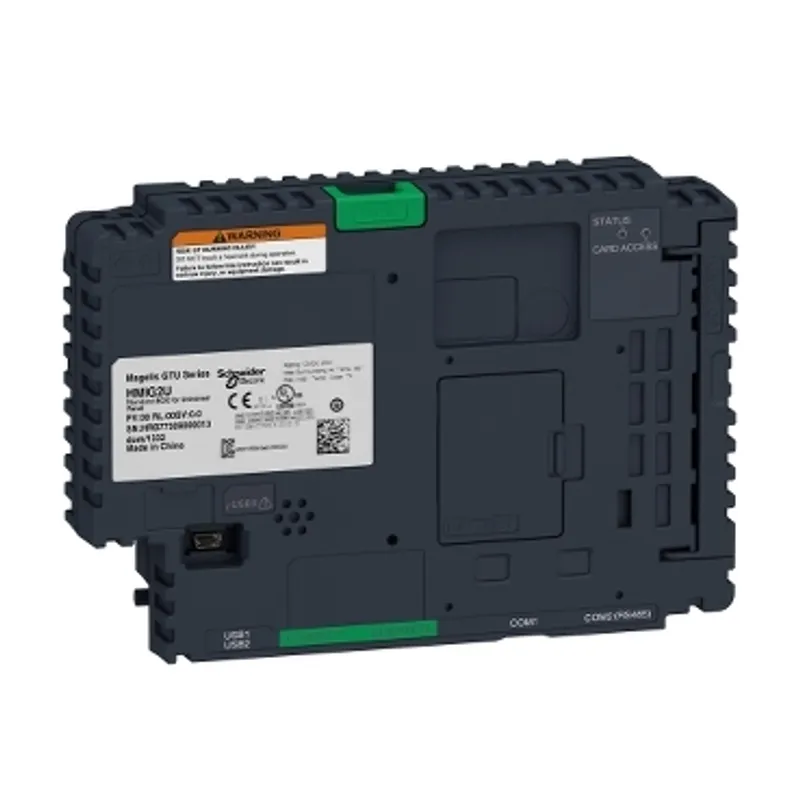

Schneider Electric HMIG2U
Base unit, Harmony GTU, standard box, 1GB built-in flash memory
- MPN
- HMIG2U
- EAN
- 3606489747176
- Category
- Harmony GTU HMI
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric HMIG2U?
"This product is part of the Harmony GTU range, an offer of Harmony GTU Universal Box Modules." "The standard box features Vijeo Designer run time 8000 variables software package." "It is designed with backup memory of FRAM/MRAM 512kB and internal memory of RAM 1GB." "It is equipped with 10BASE-T/100BASE-T Ethernet port." "Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway." "Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg." "This product is certified by ATEX, IECEx, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards." "Harmony GTU are universal panels that include smartphone-like interface and Wireless technology. They offer unmatched comfort of use with no compromise on performance and openness."
Specifications
Specifications
| Range of product | Harmony GTU |
| Product or component type | Base unit |
| Device short name | standard box |
| Range compatibility | Harmony GTU, Allen-Bradley, ABB, MitsubishI, Omron, Siemens |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Integrated connection type | Ethernet TCP/IP with 2 RJ45, COM1 serial link SUB-D 9 RS232C, transmission rate: 2400...115200 bps, COM2 serial link RJ45 RS485, transmission rate: 187.5 kbps, USB 2.0 port with 2 USB type A, USB 2.0 port mini B USB |
| Communication port protocol | Modbus, Modbus TCP/IP, Uni-Telway |
| Software package | Vijeo Designer |
| Processor name | ARM Cortex-A9 |
| Data storage equipment | 1 GB built-in flash memory |
| Port Ethernet | 10BASE-T/100BASE-T |
| Memory description | 256 MB RAM internal (2 x 13 mm board), 512 KB NVRAM backup memory |
| Number of slots | 1 slot(s) for SD card |
| Realtime clock | Built-in |
| Local signalling | LED: (steady), green for operating status (RUN), LED: (faded), green for stand-by, LED: (flashing), orange for software starting up, LED: (steady), red for power ON, LED: (alternate), green, orange and red for module error (ERR), LED: (alternate), red/orange for boot status, LED: (alternate), green/red for connection status |
| Type of cooling | Natural convection |
| Width | 188 mm |
| Height | 131 mm |
| Depth | 45 mm |
| Net weight | 0.9 kg |
| Standards | CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213, IEC 61132-2 |
| Product certifications | CE, CULus, ATEX, IEC-Ex, RCM, GL, KC, CUL, EAC, UKCA, UKEX |
| Resistance to fast transients | 1 kV (signal ports) conforming to IEC 61000-4-4, 2 kV (power ports) conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 6 kV contact discharge conforming to IEC 61000-4-2 level 3, 8 kV air discharge conforming to IEC 61000-4-2 level 3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -20…60 °C |
| Pollution degree | 2 conforming to IEC 61131-2 ed.3 |
| Environmental characteristic | Corrosive gas free |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| Vibration resistance | 3.5 mm constant amplitude (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2, 9.8 m/s² (f = 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2 |
| Shock resistance | 147 m/s² (X, Y, Z directions for 3 times) conforming to IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Packaging
| Package 1 | 1 PCE, 26.500 cm × 21.500 cm × 14.500 cm (L × W × H), 1.167 kg |
| Package 2 | 4 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 5.778 kg |
