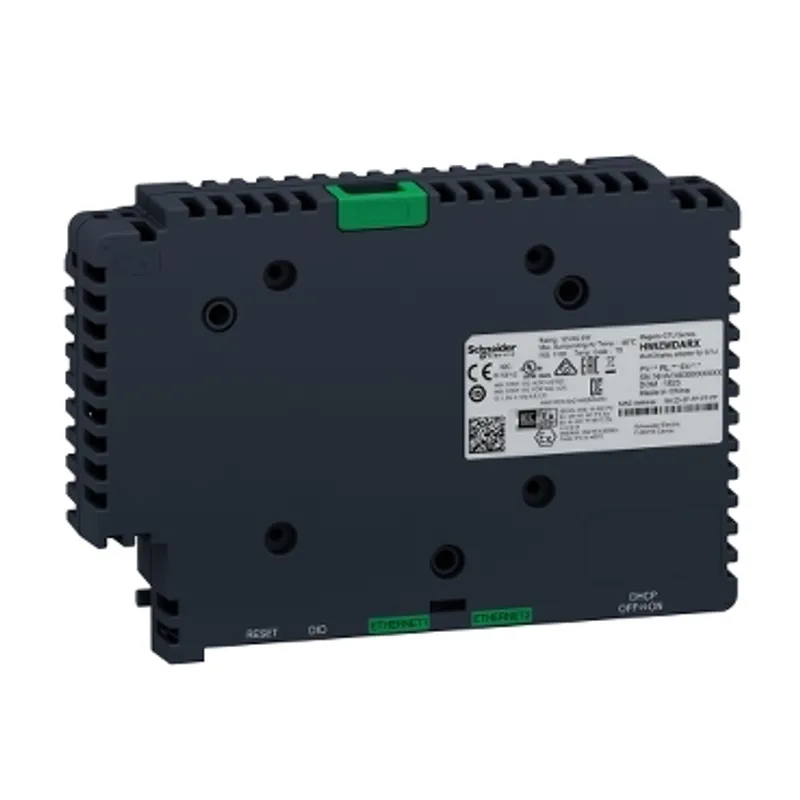

Schneider Electric HMIZMDARX
Multi Display Adapter for Harmony GTU
- MPN
- HMIZMDARX
- EAN
- 3606480778711
- Category
- Harmony GTU HMI
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original HMIZMDARX (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric HMIZMDARX?
Schneider Electric Multi Display Adapter for Harmony GTU, manufacturer part number HMIZMDARX. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Harmony GTU |
| Accessory / separate part type | Adaptor |
| Accessory / separate part category | Adaptation accessory |
| Product compatibility | Harmony GTU open, Harmony iPC industrial PCs |
| Accessory / separate part destination | Harmony GTU display |
| [Us] rated supply voltage | 12 V DC module supply |
| Input voltage | 12 V DC module supply, 24 V DC |
| Integrated connection type | 1 DIO type terminal block 3 inputs + 1 output, 2 Ethernet TCP/IP type RJ45 jack |
| Output voltage | 24 V |
| Output voltage type | DC |
| Output current | 50 mA |
| Power consumption in W | 8 W |
| Net weight | 0.8 kg |
| Local signalling | LED green, steady for operating status (RUN), LED green, faded for stand-by, LED green/orange, alternate for program mode, LED orange, flashing for establishing communication connection, LED red, steady for power ON, LED green, orange and red, alternate for ERROR (fault) |
| Type of cooling | Natural |
| Height | 131 mm |
| Depth | 35 mm |
| Width | 188 mm |
| Pollution degree | 2 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -20…60 °C |
| Operating altitude | 2000 m |
| Product certifications | UL 508, CSA C22-2 No 142, CSA C22-2 No 213, cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01, IEC-Ex, ATEX zone 2/22, EAC, UKCA, UKEX |
| Relative humidity | 10…90 % non-condensing |
| Vibration resistance | 3.5 mm constant amplitude (f= 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2, 9.8 m/s² constant acceleration (f= 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2 |
| Shock resistance | 147 m/s² for X, Y, Z directions for 3 times conforming to IEC 61131-2 |
| Resistance to fast transients | 1 kV (signal ports) conforming to IEC 61000-4-4, 2 kV (power ports) conforming to IEC 61000-4-4 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 |
| Environmental characteristic | Corrosive gas free, Dustproof |
Packaging
| Package 1 | 1 PCE, 26.5 cm × 21 cm × 14 cm (L × W × H), 1.054 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
HMIZMDARX: frequently asked questions
Can I still buy the HMIZMDARX now that it is discontinued?
Yes. Schneider Electric has discontinued the HMIZMDARX, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can HMIZMDARX be shipped?
HMIZMDARX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up HMIZMDARX in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for HMIZMDARX and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMIZMDARX, subject to availability and destination.
