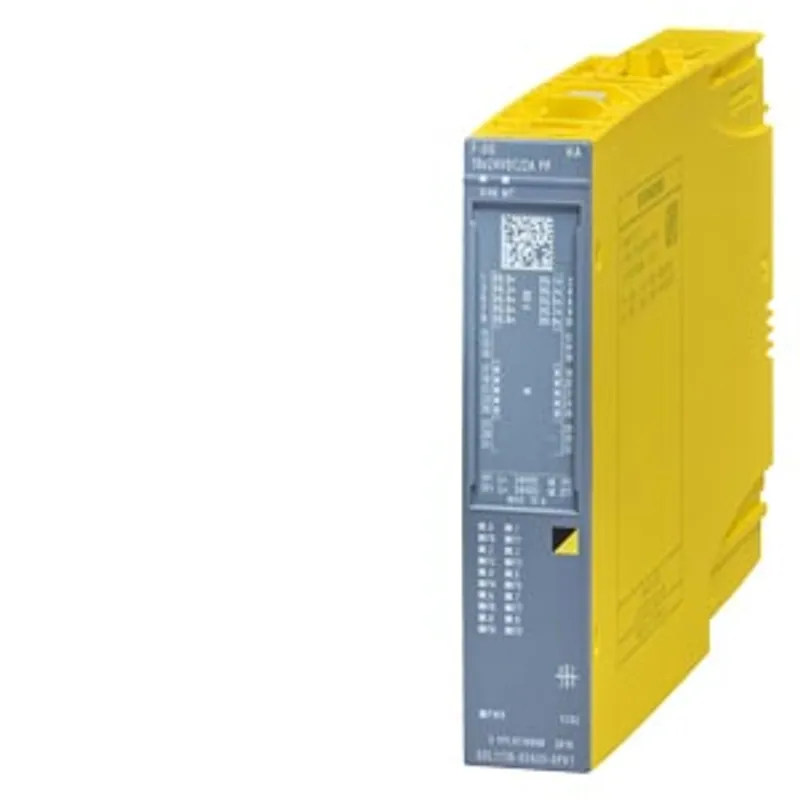

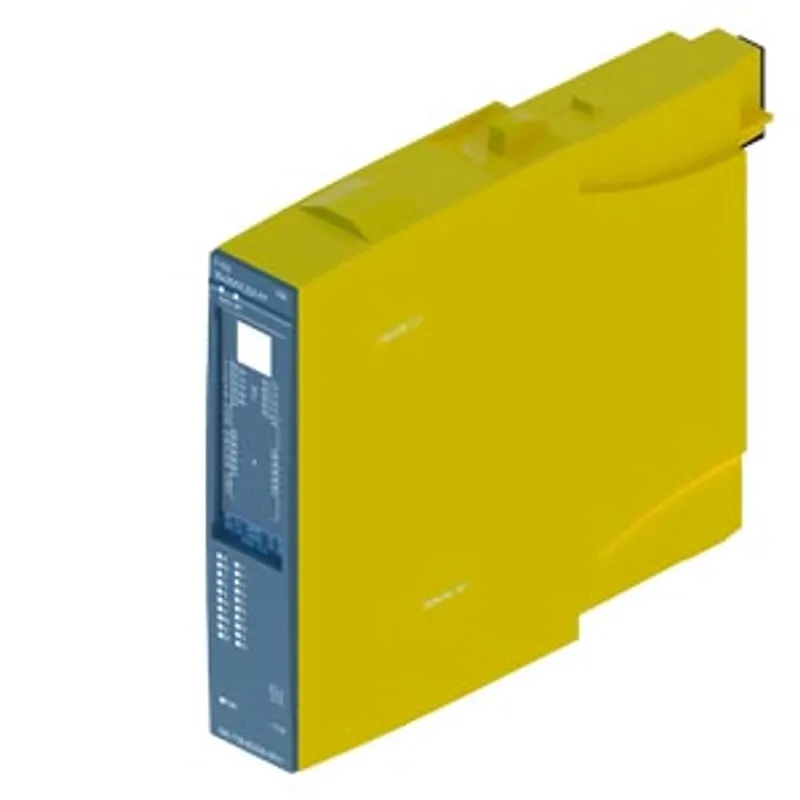

Siemens 6DL1136-6DA00-0PH1
SIMATIC ET 200SP HA, digital output module, safety-oriented F-DQ 10X24VDC/2A HA, SIL3 (IEC 61508)
- MPN
- 6DL1136-6DA00-0PH1
- Category
- Fail-safe I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL1136-6DA00-0PH1?
SIMATIC ET 200SP HA, digital output module, safety-oriented F-DQ 10X24VDC/2A HA, SIL3 (IEC 61508), up to PL e (ISO 13849-1) suitable for terminal block H1, M1, color code CC02, channel diagnostics
Specifications
General information
| Product type designation | F-DQ 10x24VDC/2A PP HA |
| HW functional status | 02 |
| Firmware version | V1.0.3 |
| Firmware version — FW update possible | Yes |
| Usable terminal block | type H1, M1, N0, H0, M0 (for details see the system manual) |
| Color code for module-specific color-coded label | CC02 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V21 |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 SP1 HF5 (with S7 F system V6.3) |
| Engineering with — PCS 7 configurable/integrated from version | V9.0 SP3 (with S7 F Systems V6.3) |
| Operating mode — DQ | Yes |
| Redundancy — Redundancy capability | Yes; with TB type M0 and M1 |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
Input current
| Current consumption (rated value) | 65 mA |
| Current consumption, max. | 130 mA |
Power
| Power consumption from the backplane bus | 90 mW |
Power loss
| Power loss, typ. | 5 W; Total current 5 A at rated voltage and ambient temperature |
Address area
| Address space per module — Inputs | 7 byte |
| Address space per module — Outputs | 7 byte |
Hardware configuration
| Automatic encoding | Yes |
| Automatic encoding — Mechanical coding element | Yes |
Digital outputs
| Type of digital output | PP-switching |
| Number of digital outputs | 10 |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | Yes |
| Short-circuit protection — Response threshold, typ. | 4.1 A |
| Open-circuit detection | Yes |
| Open-circuit detection — Response threshold, typ. | 7 mA; FS01: 10 mA |
| Switching capacity of the outputs — on lamp load, max. | 10 W |
| Load resistance range — lower limit | 12 Ω |
| Load resistance range — upper limit | 3 400 Ω |
| Output current — for signal "1" rated value | 2 A |
| Output current — for signal "1" permissible range, min. | 12 mA |
| Output current — for signal "1" permissible range, max. | 2.4 A |
| Output current — for signal "0" residual current, max. | 0.5 mA |
| Switching frequency — with resistive load, max. | 20 Hz |
| Switching frequency — with inductive load (acc. to IEC 60947-5-1, DC13), max. | 0.1 Hz |
| Switching frequency — on lamp load, max. | 10 Hz |
| Total current of the outputs — Current per module, max. | 10 A |
| Total current of the outputs (per module) — horizontal installation — up to 30 °C, max. | 9 A; uneven load distribution |
| Total current of the outputs (per module) — horizontal installation — up to 40 °C, max. | 7.5 A; uneven load distribution |
| Total current of the outputs (per module) — horizontal installation — up to 50 °C, max. | 6.2 A; uneven load distribution |
| Total current of the outputs (per module) — horizontal installation — up to 60 °C, max. | 4.5 A; uneven load distribution |
| Total current of the outputs (per module) — horizontal installation — up to 70 °C, max. | 2.5 A; uneven load distribution |
| Total current of the outputs (per module) — vertical installation — up to 30 °C, max. | 7 A; uneven load distribution |
| Total current of the outputs (per module) — vertical installation — up to 40 °C, max. | 6 A; uneven load distribution |
| Total current of the outputs (per module) — vertical installation — up to 50 °C, max. | 4.5 A; uneven load distribution |
| Total current of the outputs (per module) — vertical installation — up to 60 °C, max. | 3 A; uneven load distribution |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 600 m |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Alarms — Diagnostic alarm | Yes |
| Alarms — Maintenance interrupt | Yes |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Monitoring the supply voltage | Yes; module-wise |
| Diagnoses — Wire break | Yes; channel by channel |
| Diagnoses — Short-circuit to ground | Yes; channel by channel |
| Diagnoses — Short-circuit to L+ | Yes; channel by channel |
| Diagnostics indication LED — MAINT LED | Yes; Yellow MT LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — between the channels and the power supply of the electronics | No |
Isolation
| Isolation tested with | 1 500 V DC/1 min, type test |
Standards, approvals, certificates
| Highest safety class achievable in safety mode — Performance level according to ISO 13849-1 | Up to PLe |
| Highest safety class achievable in safety mode — Category according to ISO 13849-1 | Up to Cat. 4 |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | SIL 3 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL3 | < 7.00E-05 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL3 | < 2.00E-09 1/h |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 70 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 60 °C |

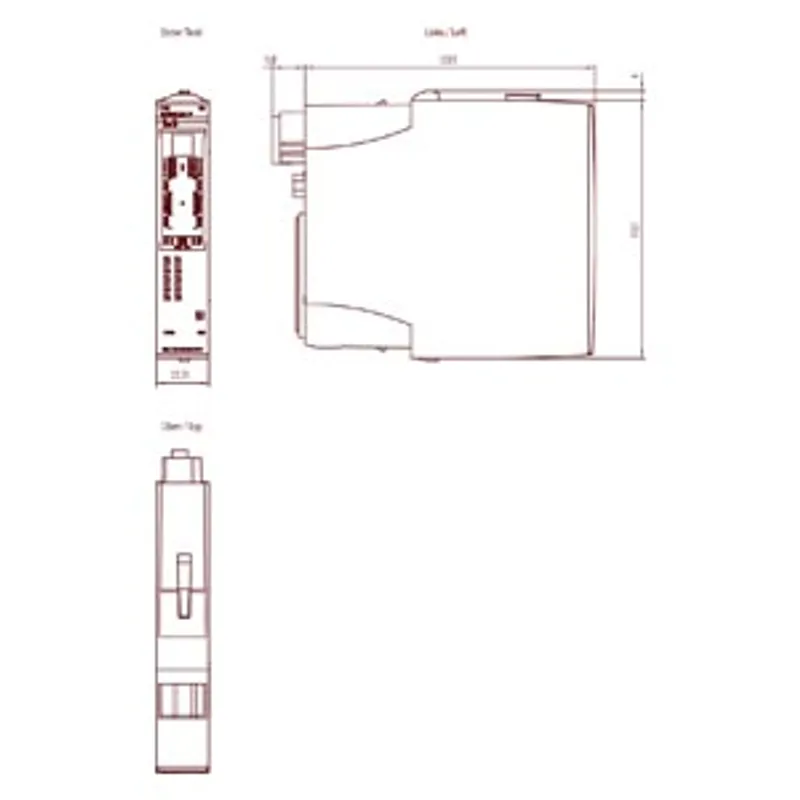

Dimensions
| Width | 22.5 mm |
| Height | 115 mm |
| Depth | 138 mm |
Weights
| Weight, approx. | 230 g |
