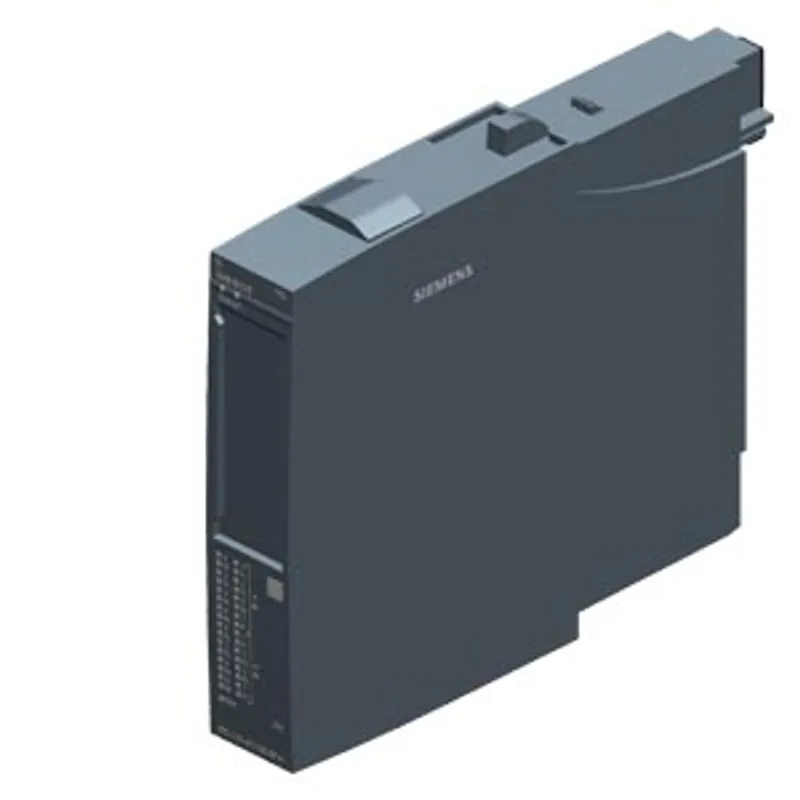

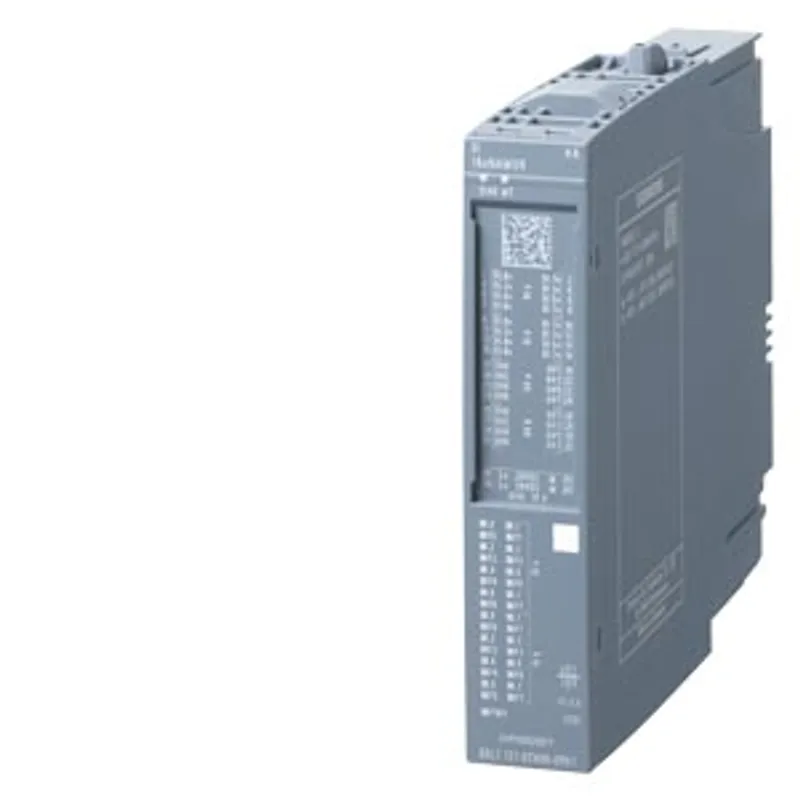

Siemens 6DL1131-6TH00-0PH1
SIMATIC ET 200SP HA, digital input module, DI 16XNAMUR HA, suitable for terminal block H1, M1
- MPN
- 6DL1131-6TH00-0PH1
- Category
- Digital I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL1131-6TH00-0PH1?
SIMATIC ET 200SP HA, digital input module, DI 16XNAMUR HA, suitable for terminal block H1, M1, color code CC01, channel diagnostics
Specifications
General information
| Product type designation | DI 16xNAMUR HA |
| Firmware version | V1.0 |
| Firmware version — FW update possible | Yes |
| Usable terminal block | type H1, M1, N0, H0, M0 (for details see the system manual) |
| Color code for module-specific color-coded label | CC01 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V16 |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 |
| Engineering with — PCS 7 configurable/integrated from version | V9.0 |
| Engineering with — PCS neo can be configured/integrated from version | V3.0 |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Operating mode — DI | Yes |
| Operating mode — Counter | No |
| Redundancy — Redundancy capability | Yes; With TB type M1 |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
Input current
| Current consumption (rated value) | 95 mA |
| Current consumption, max. | 115 mA |
Encoder supply
| Number of outputs | 16 |
| Output voltage, min. | 8.1 V |
| Short-circuit protection | Yes |
Power
| Power consumption from the backplane bus | 74 mW |
Power loss
| Power loss, typ. | 2.4 W |
Address area
| Address space per module — Address space per module, max. | 2 byte; + 2 bytes for QI information |
Digital inputs
| Number of digital inputs | 16; NAMUR |
| Digital inputs, parameterizable | Yes |
| Pulse extension | Yes; 0.5 s, 1 s, 2 s |
| Time stamp | Yes; Resolution 10 ms |
| Time stamp (with precision of 1 ms) | No |
| Edge evaluation | Yes; rising edge, falling edge, edge change |
| Signal change flutter | Yes; 2 to 32 signal changes |
| Flutter observation window | Yes; 0.5 s, 1 s to 100 s in 1-s steps |
| Input voltage — Rated value (DC) | 8.2 V |
| Input current — for 10 k switched contact — for signal "0", min. | 0.35 mA |
| Input current — for 10 k switched contact — for signal "0", max. | 1.2 mA |
| Input current — for 10 k switched contact — for signal "1", min. | 2.1 mA |
| Input current — for 10 k switched contact — for signal "1", max. | 6.4 mA |
| Input current — for unswitched contact — for signal "0", max. (permissible quiescent current) | 0.5 mA |
| Input current — for unswitched contact — for signal "1", typ. | 8 mA |
| Input current — for NAMUR encoders — for signal "0", min. | 0.35 mA |
| Input current — for NAMUR encoders — for signal "0", max. | 1.2 mA |
| Input current — for NAMUR encoders — for signal "1", min. | 2.1 mA |
| Input current — for NAMUR encoders — for signal "1", max. | 6.4 mA |
| Input delay (for rated value of input voltage) — tolerated changeover time for changeover contacts | 300 ms |
| Input delay (for rated value of input voltage) — for NAMUR inputs — at "0" to "1", max. | 17 ms |
| Input delay (for rated value of input voltage) — for NAMUR inputs — at "1" to "0", max. | 25 ms |
| Cable length — shielded, max. | 600 m |
| Cable length — unshielded, max. | 200 m |
Encoder
| Connectable encoders — NAMUR encoder/changeover contact according to EN 60947 | Yes |
| Connectable encoders — Single contact / changeover contact unconnected | Yes |
| Connectable encoders — Single contact / changeover contact connected with 10 kΩ | Yes |
| Connectable encoders — 2-wire sensor | Yes; Acc. to NAMUR |
| Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max. | 1.2 mA |
Interrupts/diagnostics/status information
| Alarms — Diagnostic alarm | Yes; channel by channel |
| Alarms — Hardware interrupt | Yes; Parameterizable, channels 0 to 15, rising/falling edge |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Monitoring the supply voltage — parameterizable | Yes |
| Diagnoses — Monitoring of encoder power supply | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — Short-circuit | Yes |
| Diagnoses — Group error | Yes |
| Diagnoses — Changeover contact error | Yes |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — Between the channels and load voltage L+ | Yes |
Isolation
| Isolation tested with | 1 500 V DC/1 min, type test |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 70 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 60 °C |

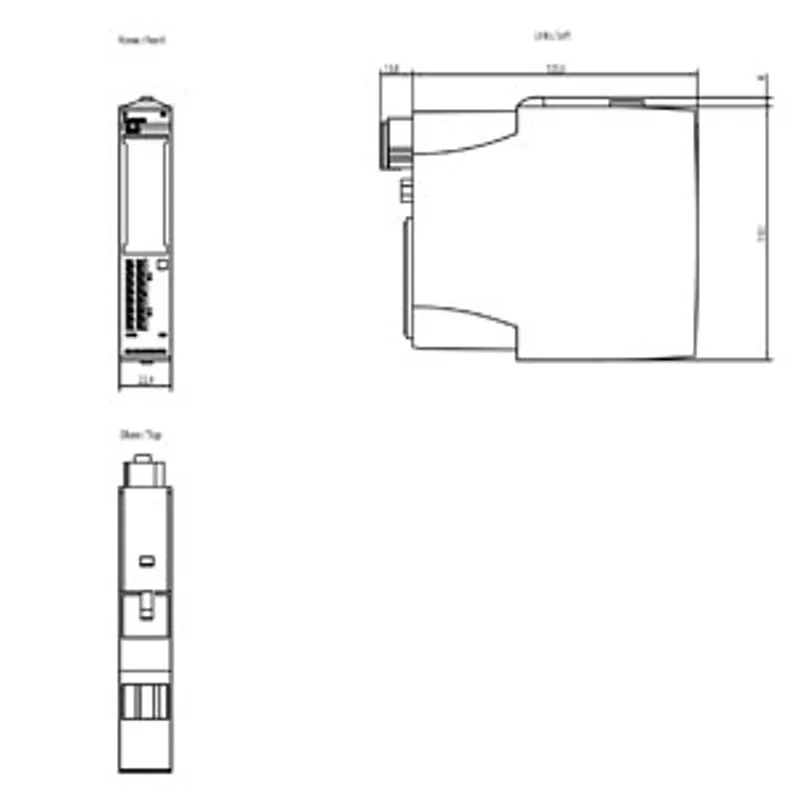

Dimensions
| Width | 22.5 mm |
| Height | 115 mm |
| Depth | 138 mm |
Weights
| Weight, approx. | 153 g |
