Digital I/O modules Parts
Compare Digital I/O modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | Color code for module-specific color-coded label | Current consumption (rated value) | Current consumption, max. | Weight, approx. |
|---|---|---|---|---|---|

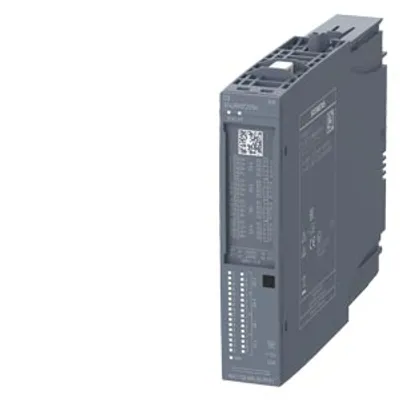

| 6DL1132-6BL00-0PH1 | DQ 32x24VDC/0.5A HA | CC00 | 60 mA; without load | 70 mA; without load | 150 g |

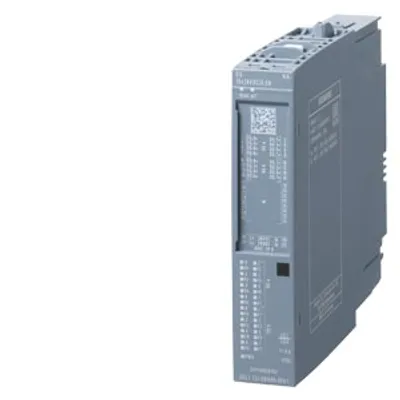

| 6DL1132-6BH00-0PH1 | DQ 16x24VDC/0.5A HA | CC02 | 60 mA; without load | 70 mA; without load | 137 g |

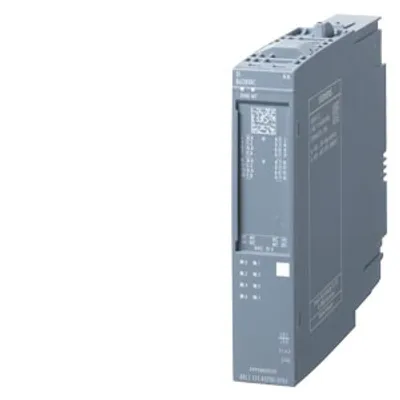

| 6DL1131-6GF00-0PK0 | DI 8x230VAC HA | CC42 | — | — | 148 g |

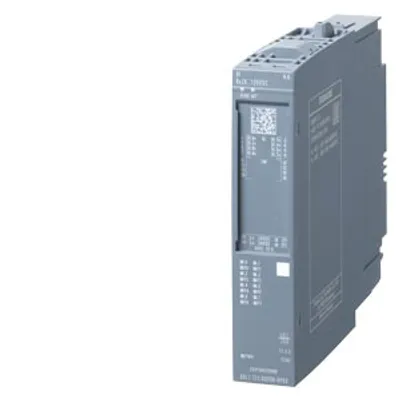

| 6DL1131-6DF00-0PK0 | DI 8x24 ... 125 V DC HA | CC42 | 16 mA | 20 mA | 165 g |

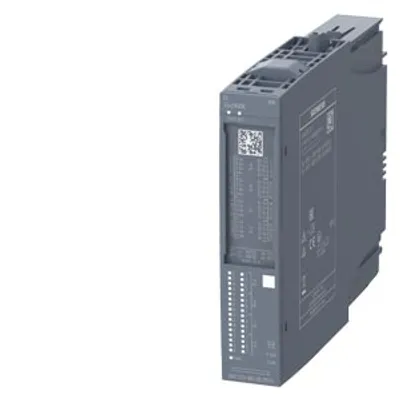

| 6DL1131-6BL00-0PH1 | DI 32x24VDC HA | CC00 | 11.5 mA | 15 mA | 150 g |
| 6DL1131-6BH00-0PH1 | DI 16x24VDC HA | CC01 | 60 mA; without sensor supply | 120 mA; without sensor supply | 135 g |
Common to all listed parts
| Firmware version | V1.0 |
| Firmware version — FW update possible | Yes |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V16 |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 |
| Engineering with — PCS 7 configurable/integrated from version | V9.0 |
| Engineering with — PCS neo can be configured/integrated from version | V3.0 |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.3 |
