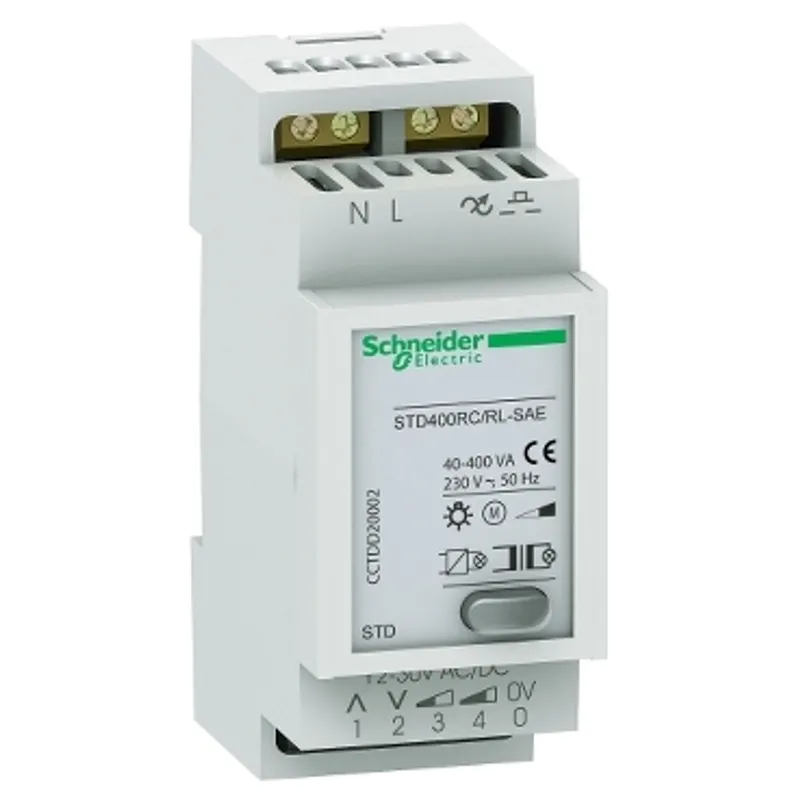

STD - SAE - remote control dimmer - 400 W

MPN: CCTDD20002
Category: Acti9 STD-SCU

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric CCTDD20002?

Schneider Electric STD - SAE - remote control dimmer - 400 W, manufacturer part number CCTDD20002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

range of product	Acti9
Product name	Acti9 STD
Product or component type	Remote control dimmer
Device short name	STD
Product compatibility	Power regulators designed
Function available	Automatic load type detection
Device application	Building
Load type	230 V AC halogen lamp: 40...400 W, 230 V AC incandescent lamp: 40...400 W, low voltage halogen lamp with electronic transformer: 40...400 W, motor: 40...200 W, low voltage halogen lamp with conventional transformer: 40...400 W, low voltage halogen lamp with toroidal transformer: 40...300 W
Control type	Local control: push-button, Remote control: push-button
Power consumption in VA	0.8 VA
Thermal losses	3 W
Input type	Push-button 4 allows control up to 20 dimmers
[Ue] rated operational voltage	230 V AC +/- 10 % at 50 Hz
Input voltage	12...30 V AC/DC
Protection type	Electronic over temperature protection, Electronic overload protection, Single shot thermal fuse, Electronic overvoltage protection
Mounting support	DIN rail
9 mm pitches	4
Connected auxiliaries	Maximum 25 auxiliary push-buttons without light indication, distance : < 50 m, Maximum 5 auxiliary push-buttons with light indication, distance : < 50 m
Connections - terminals	Screw terminals, 2 cable(s) 4 mm² top, Screw terminals, 5 cable(s) 2.5 mm² bottom
Maximum cable distance between devices	50 m
Height	85 mm
Width	36 mm
Depth	62 mm
Net weight	80 g
IP degree of protection	IP20
Standards	EN 60669-2-1
Directives	73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility
Ambient air temperature for operation	0…70 °C
Ambient air temperature for storage	0…60 °C

Packaging

Package 1	1 PCE, 9.700 cm × 9.700 cm × 8.000 cm (L × W × H), 155.000 g
Package 2	24 S03, 40 cm × 30 cm × 30 cm (L × W × H), 4.207 kg
