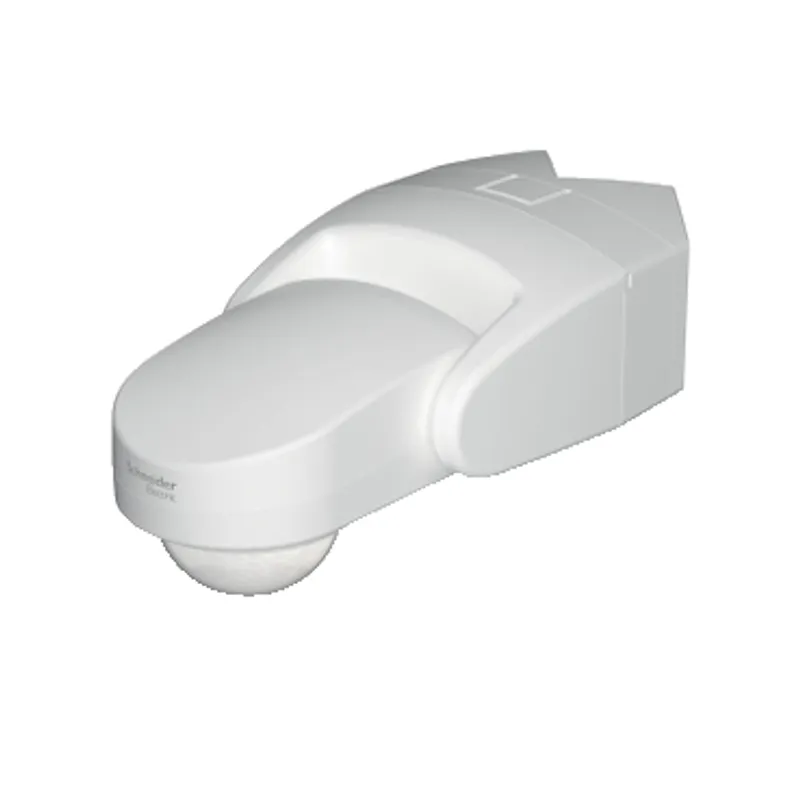

Schneider Electric CCT56P008

ARGUS standard outdoor 360° - carton

MPN
CCT56P008
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric CCT56P008?

ARGUS Standard 360° outdoor PIR. Electronic movement detector for outdoor mounting. 360° surface monitoring. High quality infrared sensor and components. Convenience and security: reacts to all visitors or intruders by turning the light ON and OFF automatically. Easy to use and energy saving with quick settings for switch on time and light sensitivity levels. Protected against UV, dust, heavy rains and water protection. Undesired areas can be blanked out of the detection range. Mains voltage: AC 220-240 V, 50 Hz. Max. switching current: 10 A, AC 220-240 V, cos Phi 0.6. Nominal capacity: Incandescent lamps AC 230 V: 1000 W. Halogen lamps AC 230 V: 800 W. Halogen with electronic transformator: 315 VA. Halogen with iron core transformator: 500 VA. Fluorescent tubes: 250 VA. Capacitive loads (6 A test current): 28 µF. Capacitive loads (10 A test current): 21 µF. Compact fluorescent lamps: 4 x 23 W. Upstream fuse: 10 A. Stand-by current consumption: max. 2.5 W. Angle of detection: 360°. Range: max. 12 m. Light sensitivity (lux setting): 5-2000 Lux. Time setting: approx. 5 s to approx. 20 min, lower tolerance 2-8 s. Switching modes: Auto mode, manual override. Connection: 3-wires. Operating temperature: -15 °C to +40 °C. Type of protection: IP 55. EC directives: Low voltage directive 2006/95/EC and EMV-directive 2004/108/EC. Colour: white, RAL 9010. Dimensions (LxWxH): 170x88x76 mm (with corner bracket), 142.5x88x76 (without corner bracket). Net weight: 256g (with corner bracket), 230g (without corner bracket). Contents: With mounting bracket for outer/inner corners. Colour: white.

Specifications

Specifications

Range of productARGUS standard movement detector
RangeARGUS
Product or component typeMovement detector
Load typeIncandescent lamp: 1000 W, AC, Low voltage halogen lamp with wire-wound transformer: 500 VA, Low voltage halogen lamp with electronic transformer: 315 VA, Fluorescent tube: 250 VA, AC, Compact fluorescent lamp: 4 x 23 W, AC, Capacitive: : 6 A, 28 µF, AC, Capacitive: : 10 A, 21 µF, AC, Halogen lamp: 800 W, AC
Colour tintWhite
Type of packingCarton
[Ue] rated operational voltage220...240 V
Network frequency50 Hz
Output current10 A
Type of settingTime adjustment, Light sensitivity adjustable
Time delay5 s...20 min
Light intensity adjustment5…2000 lux
Horizontal detection angle0…360 °
detection rangeFrontal: 12 m
MaterialPC (polycarbonate) matt
Device mountingSurface
Mounting height2.5 m
IP degree of protectionIP55
Ambient air temperature for operation-15…40 °C

Packaging

Package 11 PCE, 17.200 cm × 10.000 cm × 9.600 cm (L × W × H), 378.000 g
Package 230 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 12.680 kg
Package 3360 P12, 120.000 cm × 80.000 cm × 105.000 cm (L × W × H), 164.160 kg

CCT56P008: frequently asked questions

When can CCT56P008 be shipped?

CCT56P008 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CCT56P008 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CCT56P008 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CCT56P008, subject to availability and destination.
