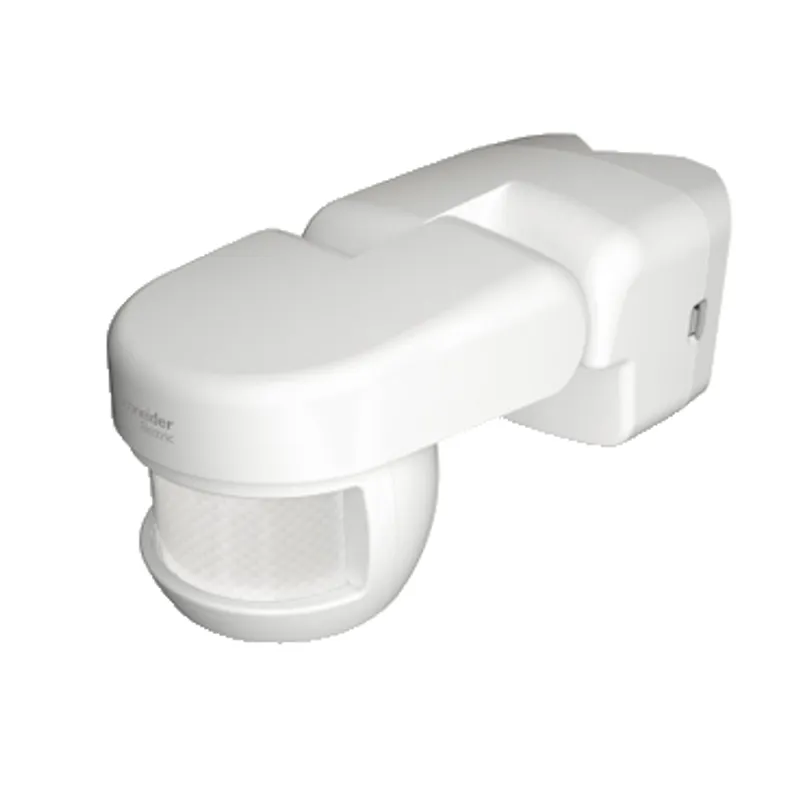

Schneider Electric CCT56P004

ARGUS standard outdoor 120° - carton

MPN
CCT56P004
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric CCT56P004?

ARGUS Standard 120° outdoor PIR. Electronic outdoor movement detector. 120° surface monitoring for smaller house fronts and sections of the house. High quality infrared sensor and components. Convenience and security: reacts to all visitors or intruders by turning the light ON and OFF automatically. Easy to use and energy saving with quick settings for switch on time and light sensitivity levels. Protected against UV, dust, heavy rains and water protection. Undesired areas can be blanked out of the detection range. Mains voltage: AC 220-240 V, 50 Hz. Max. switching current: 10 A, AC 220-240 V, cos Phi 0.6. Nominal capacity: Incandescent lamps AC 230 V: 1000 W. Halogen lamps AC 230 V: 900 W. Halogen with electronic transformer: 250 VA. Halogen with iron core transformer: 500 VA. Fluorescent tubes: 200 VA. Capacitive loads (6 A test current): 21 µF. Capacitive loads (10 A test current): 14 µF. Compact fluorescent lamps: 3 x 23 W. Upstream fuse: 10 A. Stand-by current consumption: < 2 W. Angle of detection: 120°. Range: max. 12 m. Light sensitivity (lux setting): 5-2000 Lux. Time setting: approx. 3 s to approx. 30 min, lower tolerance 2-6 s. Switching modes: auto mode, manual override. Connection: 3-wires. Operating temperature: -15 °C to +40 °C. Type of protection: IP 55. EC directives: Low voltage directive 2006/95/EC and EMC directive 2004/108/EC. Colour: white, RAL 9010. Dimensions (LxWxH): 164x80x75 mm (with corner bracket), 140x80x75 (without corner bracket). Net weight: 226g (with corner bracket), 205g (without corner bracket). Contents: With mounting bracket for outer/inner corners. Colour: white.

Specifications

Specifications

Range of productARGUS standard movement detector
RangeARGUS
Product or component typeMovement detector
Load typeIncandescent lamp: 1000 W, AC, Low voltage halogen lamp with wire-wound transformer: 500 VA, Low voltage halogen lamp with electronic transformer: 250 VA, Fluorescent tube: 200 VA, AC, Compact fluorescent lamp: 3 x 23 W, AC, Capacitive: : 6 A, 21 µF, AC, Capacitive: : 10 A, 14 µF, AC, Halogen lamp: 900 W, AC
Colour tintWhite
Type of packingCarton
[Ue] rated operational voltage220...240 V
Network frequency50 Hz
Output current10 A
Type of settingLight sensitivity adjustable, Time adjustment
Time delay3 s...30 min
Light intensity adjustment5…2000 lux
Horizontal detection angle0…120 °
detection rangeFrontal: 12 m
MaterialPC (polycarbonate) matt
Device mountingSurface
Mounting height2.5 m
IP degree of protectionIP55
Ambient air temperature for operation-15…40 °C

Packaging

Package 11 PCE, 9.8 cm × 17.2 cm × 9.2 cm (L × W × H), 343 g
Package 236 S04, 60 cm × 40 cm × 30 cm (L × W × H), 13.294 kg
Package 3432 P12, 120 cm × 80 cm × 105 cm (L × W × H), 171.528 kg
