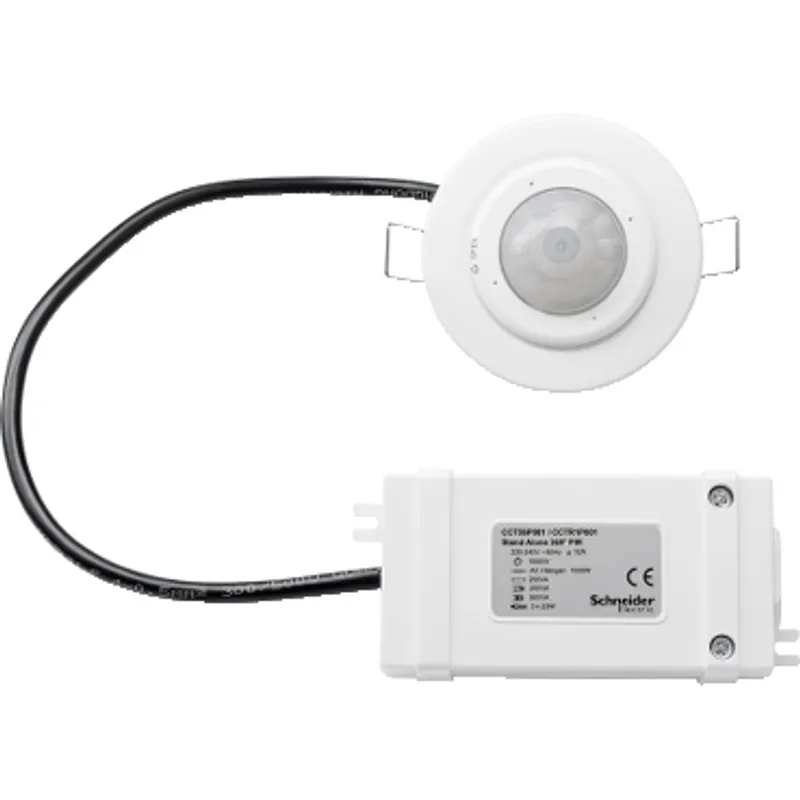

Movement detector, ARGUS, 360 deg detection, 230VAC, 10A, standard indoor, surface, white

MPN
CCT56P001
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric CCT56P001?

Schneider Electric Movement detector, ARGUS, 360 deg detection, 230VAC, 10A, standard indoor, surface, white, manufacturer part number CCT56P001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Range of productARGUS standard movement detector
RangeARGUS
Product or component typeMovement detector
Load typeIncandescent lamp: 1000 W, AC, Halogen lamp: 1000 W, AC, Low voltage halogen lamp with wire-wound transformer: 500 VA, Low voltage halogen lamp with electronic transformer: 250 VA, Fluorescent tube: 200 VA, AC, Compact fluorescent lamp: 3 x 23 W, AC, Capacitive: : 6 A, 21 µF, AC, Capacitive: : 10 A, 14 µF, AC
Colour tintWhite
Type of packingCarton
Main colour tintWhite
Depth33.5 mm
Width105.3 mm
Height56.7 mm
Connections - terminalsScrew terminal
[Ue] rated operational voltage220...240 V
Network frequency50 Hz
Output current10 A
Type of settingLight sensitivity adjustable, Time adjustment
Time delay5 s...10 min
Light intensity adjustment5…2000 lux
Horizontal detection angle0…360 °
detection rangeRadius: 3.9 m
MaterialABS + PC matt
Device mountingCeiling
Mounting height3 m
Condition of useIndoor use only
IP degree of protectionIP20
Ambient air temperature for operation-15…40 °C

Packaging

Package 11 PCE, 13.000 cm × 12.500 cm × 7.000 cm (L × W × H), 284.000 g
Package 224 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.271 kg
Package 3576 P12, 120.000 cm × 80.000 cm × 105.000 cm (L × W × H), 186.560 kg
