Acti9 STD-SCU Parts
Compare Acti9 STD-SCU
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product name | Device short name | 9 mm pitches | Width | Net weight |
|---|---|---|---|---|---|

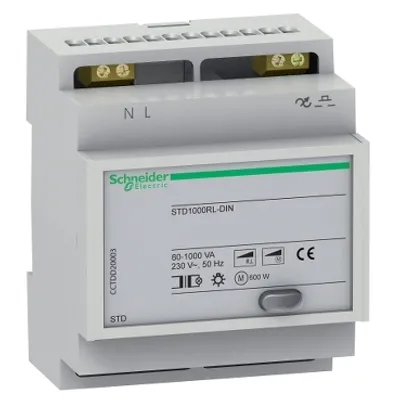

| CCTDD20004 | Acti9 STD | STD | 8 | 72 mm | 130 g |
| CCTDD20003 | Acti9 STD | STD | 8 | 72 mm | 120 g |

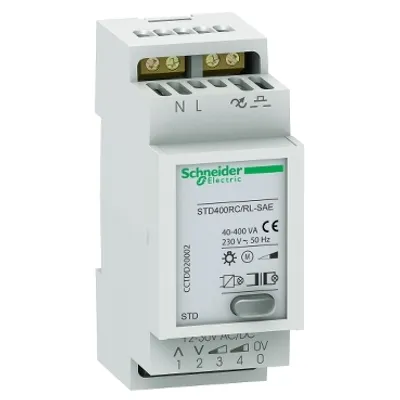

| CCTDD20002 | Acti9 STD | STD | 4 | 36 mm | 80 g |

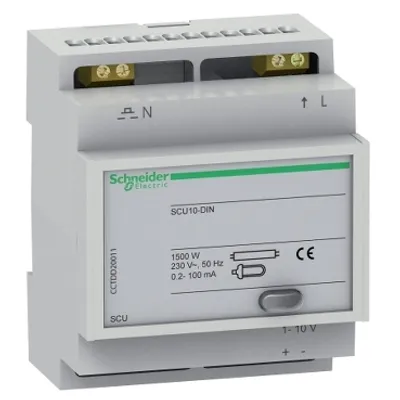

| CCTDD20011 | Acti9 SCU | SCU | 8 | 72 mm | 130 g |
Common to all listed parts
| range of product | Acti9 |
| Product or component type | Remote control dimmer |
| Device application | Building |
| Control type | Local control: push-button, Remote control: push-button |
| Power consumption in VA | 0.8 VA |
| Thermal losses | 3 W |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50 Hz |
| Mounting support | DIN rail |
