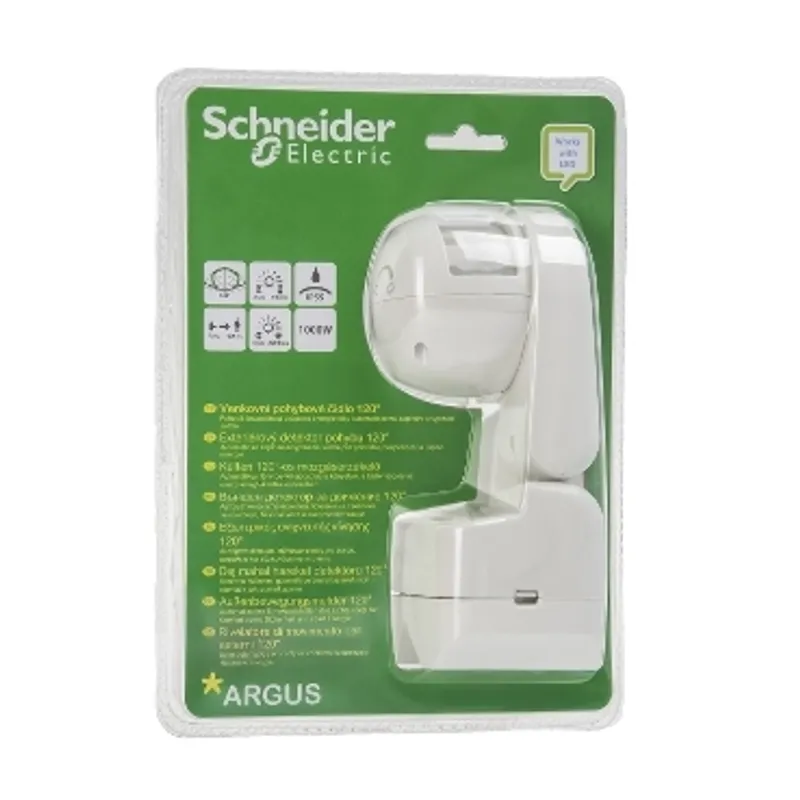

Schneider Electric CCTR1P004
ARGUS standard outdoor 120° - blister
- MPN
- CCTR1P004
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric CCTR1P004?
Schneider Electric ARGUS standard outdoor 120° - blister, manufacturer part number CCTR1P004. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | ARGUS standard movement detector |
| Range | ARGUS |
| Product or component type | Movement detector |
| Load type | Incandescent lamp: 1000 W, AC, Low voltage halogen lamp with wire-wound transformer: 500 VA, Low voltage halogen lamp with electronic transformer: 250 VA, Fluorescent tube: 200 VA, AC, Compact fluorescent lamp: 3 x 23 W, AC, Capacitive: : 6 A, 21 µF, AC, Capacitive: : 10 A, 14 µF, AC, Halogen lamp: 900 W, AC |
| Colour tint | White |
| Type of packing | Blister |
| [Ue] rated operational voltage | 220...240 V |
| Network frequency | 50 Hz |
| Output current | 10 A |
| Type of setting | Light sensitivity adjustable, Time adjustment |
| Time delay | 3 s...30 min |
| Light intensity adjustment | 5…2000 lux |
| Horizontal detection angle | 0…120 ° |
| detection range | Frontal: 12 m |
| Material | PC (polycarbonate) matt |
| Device mounting | Surface |
| Mounting height | 2.5 m |
| IP degree of protection | IP55 |
| Ambient air temperature for operation | -15…40 °C |
Packaging
| Package 1 | 1 PCE, 23.700 cm × 17.500 cm × 7.800 cm (L × W × H), 332.000 g |
| Package 2 | 24 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 8.827 kg |
CCTR1P004: frequently asked questions
When can CCTR1P004 be shipped?
CCTR1P004 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CCTR1P004 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CCTR1P004 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CCTR1P004, subject to availability and destination.
