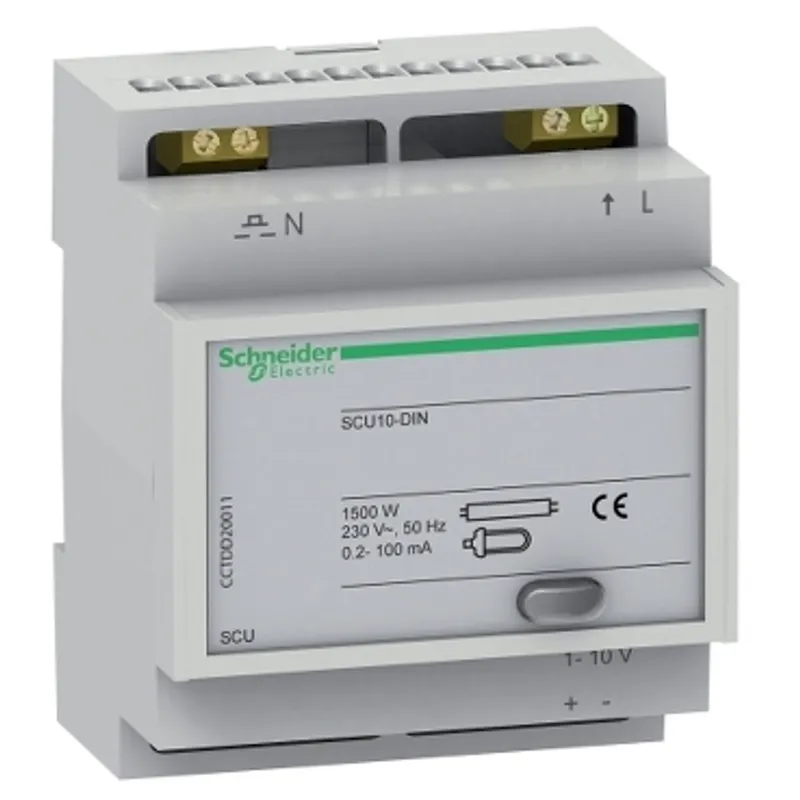

Schneider Electric CCTDD20011
SCU - DIN - remote control dimmer - 1..10 V
- MPN
- CCTDD20011
- Category
- Acti9 STD-SCU
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric CCTDD20011?
Schneider Electric SCU - DIN - remote control dimmer - 1..10 V, manufacturer part number CCTDD20011. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| range of product | Acti9 |
| Product name | Acti9 SCU |
| Product or component type | Remote control dimmer |
| Device short name | SCU |
| Device application | Building |
| Load type | 50 x fluocompact lamp, electronic ballast: <= 1500 W, 12 x dual mounted fluorescent tube, electronic ballast: 58 W, 20 x dual mounted fluorescent tube, electronic ballast: 36 W, 25 x fluorescent tube, electronic ballast: 58 W, 40 x dual mounted fluorescent tube, electronic ballast: 18 W, 40 x fluorescent tube, electronic ballast: 36 W, 50 x fluorescent tube, electronic ballast: 18 W |
| Control type | Local control: push-button, Remote control: push-button |
| Power consumption in VA | 0.8 VA |
| Thermal losses | 3 W |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50 Hz |
| Output current | 0.2...100 mA |
| Protection type | Electronic overvoltage protection, Electronic over temperature protection, Single shot thermal fuse, Electronic overload protection |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Connected auxiliaries | Maximum 25 auxiliary push-buttons without light indication, distance : < 50 m, Maximum 5 auxiliary push-buttons with light indication, distance : < 50 m |
| Connections - terminals | Screw terminals, 2 cable(s) 4 mm² top |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 62 mm |
| Net weight | 130 g |
| IP degree of protection | IP20 |
| Standards | EN 60669-2-1 |
| Directives | 89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive |
| Ambient air temperature for operation | 0…70 °C |
| Ambient air temperature for storage | 0…60 °C |
Packaging
| Package 1 | 1 PCE, 9.800 cm × 9.600 cm × 8.100 cm (L × W × H), 172.000 g |
| Package 2 | 24 CAR, 40.700 cm × 30.600 cm × 19.800 cm (L × W × H), 4.506 kg |
