Schneider Electric CCTDD20003

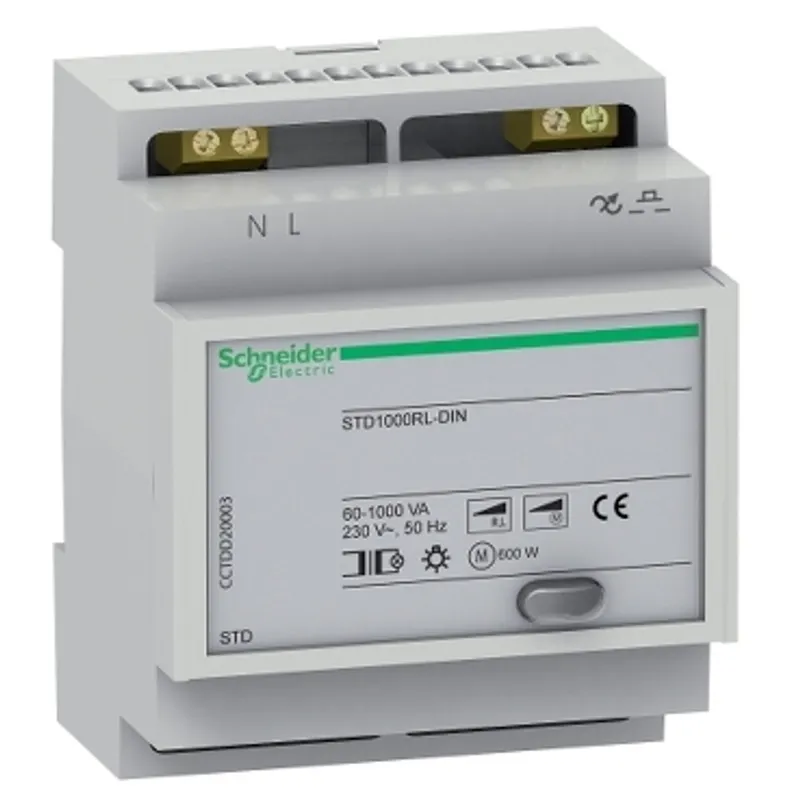

STD - DIN - remote control dimmer - 1000 W
- MPN
- CCTDD20003
- Category
- Acti9 STD-SCU
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric CCTDD20003?
Schneider Electric STD - DIN - remote control dimmer - 1000 W, manufacturer part number CCTDD20003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| range of product | Acti9 |
| Product name | Acti9 STD |
| Product or component type | Remote control dimmer |
| Device short name | STD |
| Device application | Building |
| Load type | 230 V AC halogen lamp: 60...1000 W, 230 V AC incandescent lamp: 60...1000 W, low voltage halogen lamp with conventional transformer: 60...1000 W, motor: 60...600 W |
| Control type | Local control: push-button, Remote control: push-button |
| Power consumption in VA | 0.8 VA |
| Thermal losses | 3 W |
| Input type | Push-button |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50 Hz |
| Protection type | Electronic over temperature protection, Electronic overvoltage protection, Single shot thermal fuse, Electronic overload protection |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Connected auxiliaries | Maximum 25 auxiliary push-buttons without light indication, distance : < 50 m, Maximum 5 auxiliary push-buttons with light indication, distance : < 50 m |
| Connections - terminals | Screw terminals, 2 cable(s) 4 mm² top |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 62 mm |
| Net weight | 120 g |
| IP degree of protection | IP20 |
| Standards | EN 60669-2-1 |
| Directives | 73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility |
| Ambient air temperature for operation | 0…70 °C |
| Ambient air temperature for storage | 0…60 °C |
Packaging
| Package 1 | 1 PCE, 9.500 cm × 9.500 cm × 8.000 cm (L × W × H), 183.000 g |
| Package 2 | 24 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.228 kg |
