Schneider Electric CCT56P002

ARGUS standard indoor 360° - carton

MPN
CCT56P002
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric CCT56P002?

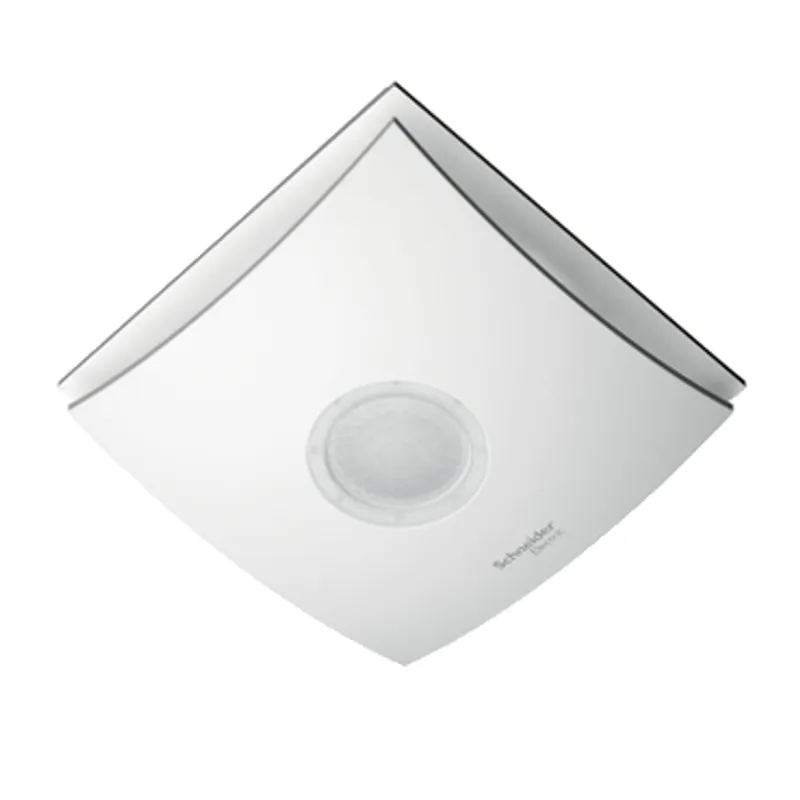

ARGUS Standard 360° indoor PIR. Electronic movement detector for indoor ceiling mounting. 360° surface monitoring. Efficient and discrete infrared sensor for all types of room in your home. Quick and easy settings for switch on time and light sensitivity levels. Attractive design to fit with your interior. Mains voltage: AC 220-240 V, 50 Hz. Max. switching current: 10 A, AC 220-240 V, cos Phi 0.6. Nominal capacity: Incandescent lamps AC 230 V: 1000 W. Halogen lamps AC 230 V: 1000 W. Halogen with electronic transformer: 315 VA. Halogen with iron core transformer: 500 VA. Fluorescent tubes: 250 VA. Capacitive loads (6 A test current): 28 µF. Capacitive loads (10 A test current): 21 µF. Compact fluorescent lamps: 4 x 23 W. Upstream fuse: 6 A. Stand-by current consumption: < 2 W. Angle of detection: 360°. Range: radius of max. 7.4 m (at a mouning height of 2.4 m). Light sensitivity (lux setting): 5-2000 Lux. Time setting: approx. 3 s to approx. 10 min, lower tolerance 2-8 s. Switching modes: Auto mode. Connection: 3-wires, neutral conductor required. Light sensitivity (lux setting): 5-2000 Lux. Time setting: approx. 3 s to approx. 10 min, lower tolerance 2-8 s. Switching modes: Auto mode. Anschluss: 3-wired. Operating temperature: indoor use only. Type of protection: IP 20. EC directives: Low voltage directive 2006/95/EC and EMV-directive 2004/108/EC. Colour: white, RAL 9010. Dimensions (LxWxH): 135x135x43 mm. Net weight: 208g. Colour: white.

Specifications

Specifications

Range of productARGUS standard movement detector
RangeARGUS
Product or component typeMovement detector
Load typeCapacitive: : 6 A, 28 µF, AC, Halogen lamp: 1000 W, AC, Compact fluorescent lamp: 4 x 23 W, AC, Low voltage halogen lamp with wire-wound transformer: 500 VA, Low voltage halogen lamp with electronic transformer: 315 VA, Fluorescent tube: 250 VA, AC, Incandescent lamp: 1000 W, AC
Colour tintWhite
Type of packingCarton
[Ue] rated operational voltage220...240 V
Network frequency50 Hz
Output current10 A
Type of settingTime adjustment, Light sensitivity adjustable
Time delay3 s...10 min
Light intensity adjustment5…2000 lux
Horizontal detection angle0…360 °
detection rangeRadius: 3.9 m
MaterialABS + PC matt
Device mountingCeiling
Mounting height2.4 m
Condition of useIndoor use only
IP degree of protectionIP20

Packaging

Package 11 PCE, 14.200 cm × 14.200 cm × 6.200 cm (L × W × H), 318.000 g
Package 220 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.804 kg

CCT56P002: frequently asked questions

When can CCT56P002 be shipped?

CCT56P002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CCT56P002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CCT56P002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CCT56P002, subject to availability and destination.
