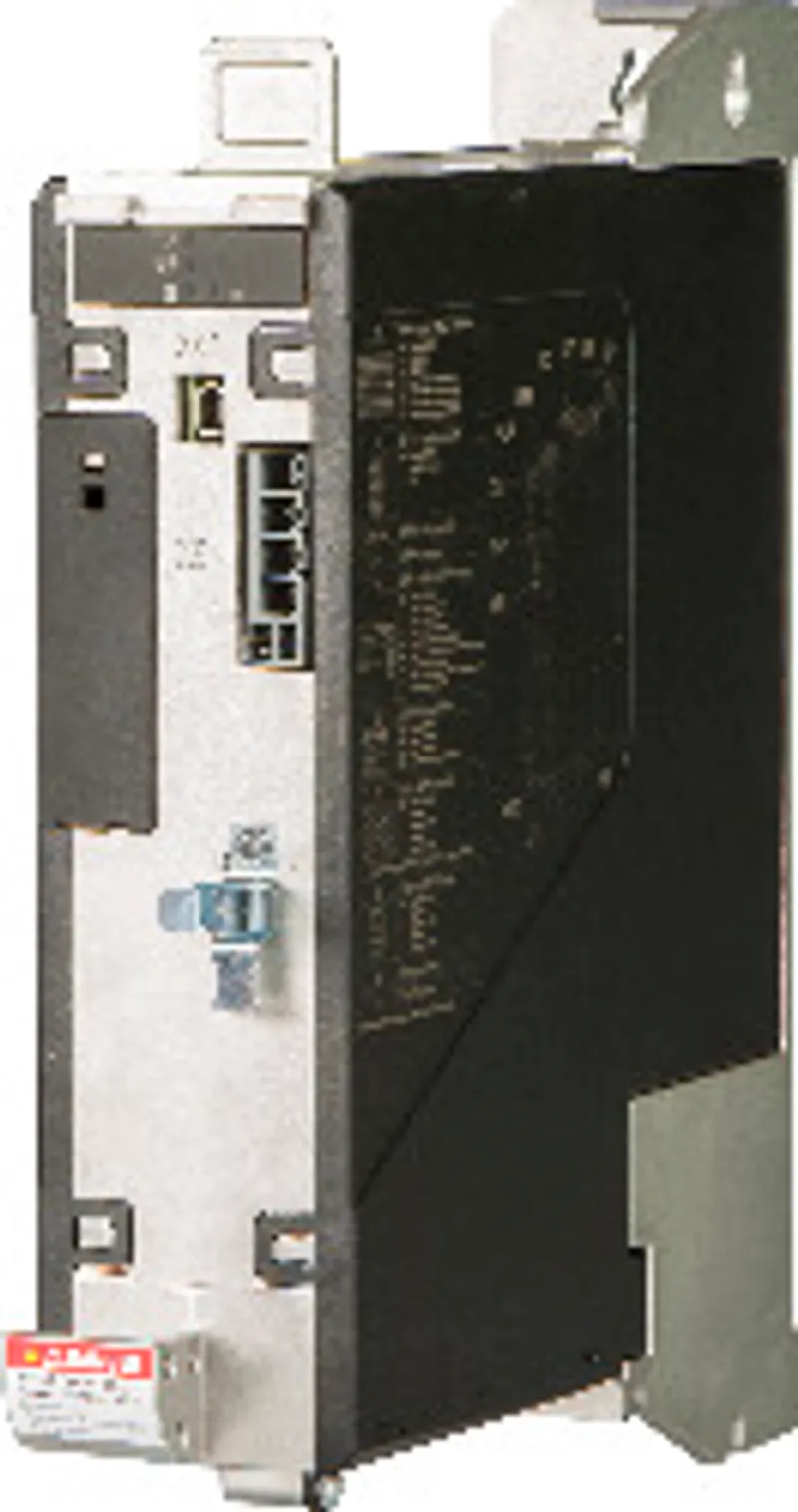

B&R 8EI1X6HWS10.XXXX-1 – ACOPOS P3 servo drive, 1 digital multi-standard encoder…

Name: B&R 8EI1X6HWS10.XXXX-1 – ACOPOS P3 servo drive, 1 digital multi-standard encoder…
Brand: B&R
SKU: 8EI1X6HWS10.XXXX-1

MPN: 8EI1X6HWS10.XXXX-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Wall mounting
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	3.2 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8EI1X6HWS10.XXXX-1 be shipped?

8EI1X6HWS10.XXXX-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8EI1X6HWS10.XXXX-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8EI1X6HWS10.XXXX-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8EI1X6HWS10.XXXX-1, subject to availability and destination.

ACOPOS P3 servo drive, 1 digital multi-standard encoder interface per axis, 3x 200-480 VAC, 1.6 A, 1 axis, wall mounting

Accessories

Optional accessories (28)

8EAD0000.000-1	Display modules — An 8EAD display module can be plugged into the X9 interface of an 8EI servo drive to display information about the drive and set its parame…
8EXF100.0000-00	Fan modules — ACOPOS P3 fan module, replacement fan for ACOPOS P3 servo drive single-width (8EI1X6/8EI2X2/8EI4X5/ 8EI8X8/8EI013/8EI017xxS)
8EXA100.0020-00	Front covers — 8EXA covers protect the interfaces on the front of ACOPOS P3 8EI servo drives and contribute to a uniform appearance inside the control cab…
8EXA100.0010-00	Front covers — 8EXA covers protect the interfaces on the front of ACOPOS P3 8EI servo drives and contribute to a uniform appearance inside the control cab…
8B0F0550H000.000-1	Line filters passive — Wide mains input voltage range; Optimally suited for ACOPOSmulti 8B0P power supply modules; Compliance with limit values per CISPR11, group…
8B0F0300H000.000-1	Line filters passive — Wide mains input voltage range; Optimally suited for ACOPOSmulti 8B0P power supply modules; Compliance with limit values per CISPR11, group…
8B0F0160H000.100-1	Line filters passive — Passive line filter, 16 A, 3x 528 VAC, 50/60 Hz, IP20, specially designed also for operation at 2.5 kHz
8B0F0160H000.000-1	Line filters passive — Wide mains input voltage range; Optimized for ACOPOSmulti 8B0P power supply modules and ACOPOS P3; Compliance with limit values per CISPR11…
8EAC0152.001-1	Plug-in modules — ACOPOS P3 plug-in module, analog multi-encoder interface
8EAC0151.001-1	Plug-in modules — ACOPOS P3 plug-in module, incremental encoder interface
8EAC0150.001-1	Plug-in modules — ACOPOS P3 plug-in module, digital multi-encoder interface
8EAC0130.000-1	Plug-in modules — ACOPOS P3 plug-in module, 8 digital I/O 24 V (4x 400 mA, 4x 100 mA) individually configurable as inputs or outputs, 2 digital I/O 24 V 2 A…
8EAC0122.001-1	Plug-in modules — Resolver interface for installation in ACOPOS P3 servo drives; Encoder monitoring; High resolution ACOPOS P3 plug-in module, resolver inter…
8SCSE02.0200-00	Shield component sets — ACOPOS P3 shield component set: 1x shield connection clamp type SK20
8SCSE02.0100-00	Shield component sets — ACOPOS P3 shield component set: 1x shield connection clamp type SK14
8SCSE01.0300-00	Shield component sets — Shield component set 8SCSE01.0300-00 consists of a support plate with 2 grounding clamps and can be used to provide shielding or strain rel…
8SCSE01.0100-00	Shield component sets — Shield component set 8SCSE01.0100-00 is installed on the underside of ACOPOS P3 8EI servo drives with a width of 66 mm and consists of a sh…
8TB3308.222A-00	Terminal blocks — 4+4-pin push-in terminal block 1-row / 2-row, pitch: 7.62 mm, label 2: T- B- T+ B+ PE W V U coding A: 0000
8TB3206.222B-40	Terminal blocks — 6-pin push-in terminal block, 2-row, with locking mechanism, pitch: 7.62 mm, label 2: PE L3 L2 L1 DC- DC+, coding B: 000001
8TB3202.222C-40	Terminal blocks — 2-pin push-in terminal block, 2-row, with locking mechanism, pitch: 7.62 mm, label 2: COM 24 V, coding C: 10
8TB3106.222B-20	Terminal blocks — 6-pin push-in terminal block, 1-row, with locking mechanism, pitch: 7.62 mm, label 2: PE L3 L2 L1 DC- DC+, coding B: 000001
8TB3103.222A-20	Terminal blocks — 3-pin push-in terminal block, 1-row, with locking mechanism, pitch: 7.62 mm, label 2: PE RB- RB+, coding A: 000
8TB3102.222C-20	Terminal blocks — 2-pin push-in terminal block, 1-row, with locking mechanism, pitch: 7.62 mm, label 2: COM 24 V, coding C: 10
8TB2204.2210-50	Terminal blocks — 4-pin push-in terminal block, yellow, 2-row, pitch: 5.08 mm, label 1: 4 3 2 1,
8TB2104.2210-50	Terminal blocks — 4-pin push-in terminal block, yellow, 1-row, with locking mechanism, pitch: 5.08 mm, label 1: 4 3 2 1
8TB2104.2210-00	Terminal blocks — 4-pin push-in terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8EZI8X8HS1.2202-0	Terminal set — Terminal block set for ACOPOS P3 modules 8EIXHS10.**-1, 8EI01HS10.***-1: 1x 8TB2104.2210-00, 1x 8TB2204.2210-50, 1x 8TB3202.222C-40…
8EZI8X8HS1.2201-0	Terminal set — Terminal block set for ACOPOS P3 modules 8EI1X6HS1, 8EI2X2HS1, 8EI4X5HS1, 8EI8X8HS1, 8EI013HS1, 8EI017HS1: 1x 8TB2104.2210-00, 1x 8TB…

Specifications

General information

Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Slots for plug-in modules	1

Mains connection

Terminal connection cross section – With wire end sleeve	0.25 to 4 mm²
Terminal connection cross section – UL/C-UL-US	24 to 8 AWG
Terminal connection cross section – CSA	24 to 8 AWG
Network configurations	TT, TN, TN-S, TN-C-S, IT " data-placement="top" data-html="true" data-container="body" data-content="Operation on TT and IT power systems and on TN power systems that are not grounded to a star point is only permitted for 8EI servo drives with 8ZELxxxx Rev. E0 and higher. See the device information on the left side cover of the 8EI servo drive. Remove IT jumper X10 before operating in IT networks!">
Mains input voltage	3x 200 VAC to 480 VAC ±10%; 24 to 120 VDC " data-placement="top" data-html="true" data-container="body" data-content="Operating the module at a mains input voltage of 24 to 120 VDC is only permitted if this mains input voltage is also specified in the device information on the left-hand side cover (Input: ... 24 - 120 VDC ...).">
Frequency	50 / 60 Hz ±4%
Installed load	Max. 1.75 kVA
Inrush current	Max. 45 A
Switch-on interval	Typ. 60 s
Integrated line filter per EN 61800-3, category C3	No " data-placement="top" data-html="true" data-container="body" data-content="A line filter must be connected.<br>CE compliance can only be ensured by connecting an upstream B&R line filter (8B0F...).<br>In extreme cases, using line filters from 3rd-party manufacturers can result in irreparable damage to the ACOPOS P3 8EI servo drive.">
Power dissipation at device nominal power without braking resistor	[(40 + 6.9 * P AVG [kW] + 7.5 * I AX1 [A] + 0.25 * I BR1 2 [A] + P VSLOT ) * 1.1] [W] " data-placement="top" data-html="true" data-container="body" data-content="P<sub>AVG</sub> ... Average continuous power of the module <br>I<sub>AX1</sub> ... RMS value of the current on axis 1 <br>I<sub>BR1</sub> ... Nominal current of the motor holding brake for axis 1 <br>P<sub>VSLOT</sub> ... Power dissipation of the 8EAC plug-in module">
Max. line length	3 m " data-placement="top" data-html="true" data-container="body" data-content="Maximum line length between line filter and mains connection on the module.">

DC bus connection

Reduction of continuous power depending on mains input voltage " data-placement="top" data-html="true" data-container="body" data-content="Starting with mapp Motion V6.2.0, continuous total power monitoring (INVR_TPOW_CONT_LOAD) and peak total power monitoring (INVR_TPOW_PEAK_LOAD) are automatically disabled for a mains input voltage of 24 to 120 VDC."> – Mains input voltage <3x 400 VAC	0.7 kW * (Mains input voltage [V] / 400 V)
Terminal connection cross sections – With wire end sleeves	0.25 to 4 mm²
Terminal connection cross sections – UL/C-UL-US	24 to 8 AWG
Terminal connection cross sections – CSA	24 to 8 AWG
Continuous power " data-placement="top" data-html="true" data-container="body" data-content="Valid for mains input voltage ≥3x 400 VAC.<br>The sum of the continuous power values on all motor connections and the power of the DC bus connector is not permitted to exceed this value.">	0.7 kW " data-placement="top" data-html="true" data-container="body" data-content="The continuous power is reduced as a percentage of the continuous current if the continuous current is subject to derating.">
DC bus capacitance	470 µF
Max. line length	3 m " data-placement="top" data-html="true" data-container="body" data-content="This value applies to unshielded wiring inside a control cabinet.<br>Maximum length of the DC bus wiring inside a control cabinet.">

24 VDC power supply

Terminal connection cross sections – With wire end sleeves	0.25 to 4 mm²
Terminal connection cross sections – UL/C-UL-US	24 to 8 AWG
Terminal connection cross sections – CSA	24 to 8 AWG
Input voltage	24 VDC ±25%
Input capacitance	5500 µF
Current consumption	0.9 A + Current for motor holding brake " data-placement="top" data-html="true" data-container="body" data-content="Current consumption depends on the respective configuration of the ACOPOS P3 8EI servo drive.<br>The inrush current of the 24 VDC power supply is not limited by the module.">
Max. line length	30 m

Motor connection

Reduction of continuous current depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="The temperature specifications refer to the ambient temperature."> – Switching frequency 5 kHz	No reduction
Reduction of continuous current depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="The temperature specifications refer to the ambient temperature."> – Switching frequency 10 kHz	No reduction
Reduction of continuous current depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="The temperature specifications refer to the ambient temperature."> – Switching frequency 20 kHz	No reduction
Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	0.16 A eff per 1000 m
Protective measures – Overload protection	Yes
Protective measures – Short-circuit and ground fault protection	Yes
Variant – U, V, W, PE	Connector
Variant – Shield connection	Yes; Clamping range of the grounding clamp: 11 to 16 mm
Terminal connection cross section – With wire end sleeve	1.5 to 6 mm²
Terminal connection cross section – UL/C-UL-US	24 to 8 AWG
Terminal connection cross section – CSA	24 to 8 AWG
Max. motor line length depending on switching frequency – Switching frequency 5 kHz	75 m " data-placement="top" data-html="true" data-container="body" data-content="The sum of the cable lengths of all motor cables connected to this module is not permitted to exceed this value.">
Max. motor line length depending on switching frequency – Switching frequency 10 kHz	38 m " data-placement="top" data-html="true" data-container="body" data-content="The sum of the cable lengths of all motor cables connected to this module is not permitted to exceed this value.">
Max. motor line length depending on switching frequency – Switching frequency 20 kHz	19 m " data-placement="top" data-html="true" data-container="body" data-content="The sum of the cable lengths of all motor cables connected to this module is not permitted to exceed this value.">
Quantity	1
Continuous power per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 560 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.<br>For DC bus voltages U_ZK < 560 VDC, maximum continuous power P_OUT is calculated as follows: P_OUT = Continuous power per motor connection * U_ZK / 560.">	0.7 kW " data-placement="top" data-html="true" data-container="body" data-content="The continuous power is reduced as a percentage of the continuous current if the continuous current is subject to derating.">
Continuous current per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 560 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">	1.6 A eff
Peak current per motor connection	4.5 A eff
Peak power output	1.75 kW
Nominal switching frequency	5 kHz
Possible switching frequencies " data-placement="top" data-html="true" data-container="body" data-content="B&R recommends operating the module at its nominal switching frequency. Operating the module at a higher switching frequency for application-specific reasons reduces the continuous current and increases CPU utilization.">	2.5 / 5 / 10 / 20 kHz " data-placement="top" data-html="true" data-container="body" data-content="Switching frequency 2.5 kHz is only available for 8EI servo drives with 8ZESxxxx Rev. F0 and higher.">
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A " data-placement="top" data-html="true" data-container="body" data-content="Only applies when using B&R motor cables and B&R motors.">
Max. output frequency	598 Hz " data-placement="top" data-html="true" data-container="body" data-content="The module's electrical output frequency (SCTRL_SPEED_ACT * MOTOR_POLEPAIRS) is monitored to protect against dual use in accordance with Regulation (EC) 428/2009 \| 3A225. If the electrical output frequency of the module exceeds the limit value of 598 Hz uninterrupted for more than 0.5 s, then the current movement is aborted and error 6060 is output ("Power unit: Limit speed exceeded").">

Motor holding brake connection

Terminal connection cross section – With wire end sleeve	0.25 to 1.5 mm²
Terminal connection cross section – UL/C-UL-US	26 to 16 AWG
Terminal connection cross section – CSA	26 to 16 AWG
Protective measures – Overload and short-circuit protection	Yes
Protective measures – Open-circuit monitoring	Yes
Protective measures – Undervoltage monitoring	Yes
Quantity	1
Output voltage " data-placement="top" data-html="true" data-container="body" data-content="At values <22.9 V, under voltage monitoring is triggered and the servo drive signals error 6029 or 6055. In this case, the input voltage at connection X2 (24 VDC power supply) is too low and must be increased.">	Depends on the input voltage on connector X2
Continuous current per connection	1.3 A
Max. internal resistance	0.25 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	1.5 Ws
Max. switching frequency	0.5 Hz
Response threshold for open-circuit monitoring	Approx. 30 mA
Response threshold for undervoltage monitoring	Approx. 23 V
Max. line length	75 m " data-placement="top" data-html="true" data-container="body" data-content="During configuration, it is necessary to check if the minimum voltage can be maintained on the holding brake with the intended line length. For the permissible operating voltage range of the holding brake, see the user documentation for the motor being used.">

Braking resistor " data-placement="top" data-html="true" data-container="body" data-content="There is a connection for external braking resistors. An internal braking resistor is available as an option.">

Protective measures – Overload protection	No
Protective measures – Short-circuit and ground fault protection	Short-circuit protection: Yes; Ground fault protection: No
Peak power int./ext.	7 kW / 25 kW
Continuous power int./ext.	100 W / 2 kW
Minimum braking resistance (ext.)	25 Ω
Max. line length	3 m

Fieldbus

Type	POWERLINK V2 controlled node (CN)
Variant	2x RJ45, shielded, 2-port hub
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s

Enable inputs

Electrical isolation – Input - ACOPOS P3	Yes
Electrical isolation – Input - Input	Yes
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Switching delay at nominal input voltage – Enable 1 → 0, PWM off	2 ms
Switching delay at nominal input voltage – Enable 0 → 1, ready for PWM	0.3 ms; ACP10 5.16.2 and later: 4.3 ms
Terminal connection cross sections – With plastic wire end sleeves	0.25 to 2.5 mm²
Terminal connection cross sections – UL/C-UL-US	26 to 12 AWG
Terminal connection cross sections – CSA	26 to 12 AWG
Quantity	2
Circuit	Sink
Input current at nominal voltage	Approx. 9 mA
Modulation compared to ground potential	Max. ±38 V
OSSD signal connections " data-placement="top" data-html="true" data-container="body" data-content="OSSD (output signal switching device) signals are used to monitor signal lines for short circuits and cross faults.">	0.5 ms
Max. line length	30 m

Encoder interfaces

Electrical isolation – Encoder - ACOPOS P3	No
Encoder power supply – Short-circuit proof	Yes
Encoder power supply – Overload-proof	Yes
Encoder power supply – Output voltage	Configurable; Typ. 11.45 V ±0.1 V / 5.2 V ±0.1 V " data-placement="top" data-html="true" data-container="body" data-content="The output voltage is not predefined from the factory (with the exception of encoder types EnDat 2.2, EnDat 3.0 and HIPERFACE DSL). It must be configured in Automation Studio based on the encoder type. If no output voltage is configured, then the encoder will not be supplied by digital multi-encoder interface X4x. Power to the encoder can then be supplied externally.<br>Output voltage 5.2 V is only available under the following conditions:<br>- 8EI servo drive with 8ZECxxx revision D0 and higher - see the device information on the left side cover of the 8EI servo drive<br>- ACOPOS operating system 3.15.0 and higher (for 8EIxxxxxD... 2-axis modules and 8EIxxxxxT... 3-axis modules)<br>- ACOPOS operating system 3.17.0 and higher (for 8EIxxxxxS... 1-axis modules)">
Encoder power supply – Load capacity	Max. 300 mA
Encoder power supply – Sense lines	2, compensation of max. 2x 0.7 V
Synchronous serial interface – Minimum	2.0 V
Synchronous serial interface – Maximum	6.0 V
Synchronous serial interface – Signal transmission	RS485 " data-placement="top" data-html="true" data-container="body" data-content="Except encoder type HIPERFACE DSL.">
Synchronous serial interface – Data transfer rate	Depends on the configured encoder type
Quantity	1
Type	Digital multi-encoder interface, configurable " data-placement="top" data-html="true" data-container="body" data-content="The encoder type is not predefined from the factory. The encoder type necessary in each case must be configured in Automation Studio.">
Connections	8-pin female Mini I/O connector
Status indicators	None " data-placement="top" data-html="true" data-container="body" data-content="The direction of rotation of the encoder can be displayed on the 8EAD0000.000-1 display module.">
Max. encoder cable length	75 m ; Depends on the cross section of the power supply wires in the encoder cable " data-placement="top" data-html="true" data-container="body" data-content="Maximum encoder cable length l<sub>max</sub> can be calculated as follows (the maximum permissible encoder cable length of 75 m is not permitted to exceeded): <br><br>l<sub>max</sub> = f / I<sub>G</sub> * A * 1/(2ρ) <br><br>f ... (Output voltage of encoder interface [V] - Min. permissible supply voltage of connected encoder [V]) 1.1<br>I<sub>G</sub> ... Max. current consumption of the connected encoder [A]. <br>A ... Cross section of the power supply wires [mm²] <br>ρ ... Specific resistance [Ω mm²/m] (e.g. for copper: ρ = 0.0178)">
Max. power consumption per encoder interface	P ENCODER [W] = U 24V [V] * (I ENCODER [A] * 0.7) + 0.5 W " data-placement="top" data-html="true" data-container="body" data-content="I<sub>ENCODER</sub> ... Current consumption of the encoder<br>U<sub>24V</sub> ... Input voltage on the +24 VDC input of the module">

Trigger inputs

Electrical isolation – Input - ACOPOS P3	Yes
Electrical isolation – Input - Input	Yes
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Switching delay – Rising edge	<51 µs
Switching delay – Falling edge	<52 µs
Terminal connection cross section – With wire end sleeve	0.25 to 2.5 mm²
Terminal connection cross section – UL/C-UL-US	26 to 12 AWG
Terminal connection cross section – CSA	26 to 12 AWG
Quantity	2
Circuit	Sink
Input current at nominal voltage	7 mA
Modulation compared to ground potential	Max. ±38 V
Max. line length	100 m

Temperature sensor connection

Quantity	1
Resistance range	500 Ω to 5 kΩ

Support

Motion system – mapp Motion	5.03.0 and higher
Motion system – ACP10/ARNC0	3.13.0 and higher

Electrical properties

Energy efficiency (IE classification) " data-placement="top" data-html="true" data-container="body" data-content="The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. The power dissipation was determined at a switching frequency of 5 kHz (factory setting). Classification is performed at 90% of the frequency and at 100% of the continuous current. When operating the module in connection with an induction motor, the module is only permitted to be operated with a switching frequency of 5 kHz."> – Power dissipation relative to continuous apparent power " data-placement="top" data-html="true" data-container="body" data-content="Continuous apparent power S[VA] = √3 * UMains[Vrms] * IMains[Arms]. IE2 notation (a; b) stands respectively for a load point with frequency a (as a percentage of the nominal frequency of the motor) and current b (as a percentage of the continuous current).">

IE2 (10,25) 4.7%; IE2 (50,25) 4.7%; IE2 (10,50) 4.7%; IE2 (50,50) 4.7%; IE2 (90,50) 4.8%; IE2 (10,100) 4.9%; IE2 (50,100) 5%; IE2 (90,100) 5.1%

11.8 W

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Standing horizontally	Yes
Installation elevation above sea level – Nominal	0 to 500 m
Installation elevation above sea level – Maximum	4000 m " data-placement="top" data-html="true" data-container="body" data-content="For operation on phase-grounded/center-grounded delta networks (TT and TN) and IT networks, the value is reduced to 2000 m.">
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20 " data-placement="top" data-html="true" data-container="body" data-content="The specified degree of protection is only met if either the slot cover is installed on the module or an 8EAC plug-in module is installed and suitable terminals are connected to all connectors and all fans are installed.">

Ambient conditions

Temperature – Minimum	-25°C " data-placement="top" data-html="true" data-container="body" data-content="Only permitted for modules with 8ZEL... Revision E0 and higher. See the device information on the left side cover of the module. During storage or transport, sudden temperature changes may cause condensation or icing in the module. The module is only permitted to be commissioned if it is free of condensation or icing at the time of commissioning.">
Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%, non-condensing
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	95% at 40°C

Mechanical properties

Dimensions – Wall mounting	258.5 mm (with 8EXA front cover: 261 mm)
Dimensions – Width	66 mm
Dimensions – Height	290 mm
Weight	3.2 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8EI1X6HWS10.XXXX-1	PDF · 900 KB · 1.8 (03/10/2022) - EN
ACOPOS P3 User´s Manual	PDF · 178 MB · 1.40 (06/16/2025) - EN

CAD & dimension drawings

3D STEP file 8EIxXxxWS1x.xxxx-1 1-axis modules	ZIP · 935 KB · 1.0 (09/21/2016)
3D STEP file 8EIxXxxWS1x.xxxx-1 1-axis modules with 8EXA100 front cover	ZIP · 1,016 KB · 1.0 (09/27/2016)

Certificates (7)

ACOPOS P3 KC certificates	ZIP · 2 MB · 1.20 (11/13/2023)
E225616 UL Certificate of Compliance ACOPOS P3	PDF · 241 KB · 1.2 (09/11/2019)
EU Declaration FS Servos ACOPOS P3	PDF · 193 KB · 2023-11 (12/01/2023)
EU Declaration Servos ACOPOS P3	PDF · 238 KB · 2025-07 (10/27/2025)
TÜV-certificate - function "Safe Pulse Disabling" for ACOPOS P3	ZIP · 623 KB · 2.00 (08/20/2024) - EN
UK Declaration FS Servos ACOPOS P3	PDF · 112 KB · 2022-10 (11/02/2022)
UK Declaration Servos ACOPOS P3	PDF · 126 KB · 2022-09 (09/09/2022)
