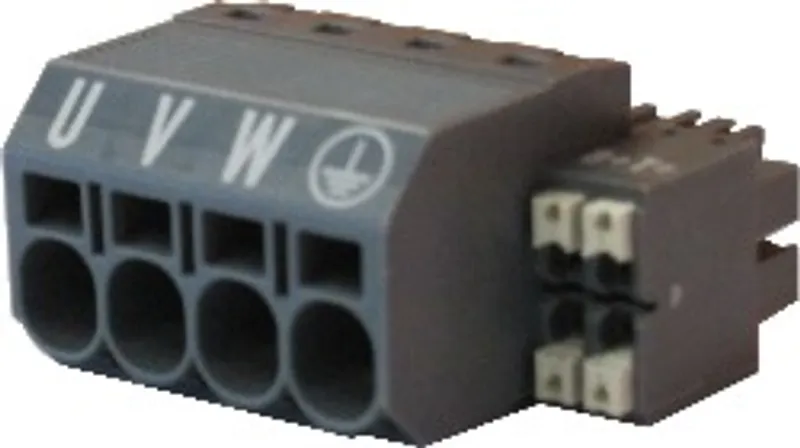

B&R 8TB3308.222A-00
4+4-pin push-in terminal block 1-row / 2-row
- MPN
- 8TB3308.222A-00
- Category
- Terminals
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8TB3308.222A-00?
4+4-pin push-in terminal block 1-row / 2-row, pitch: 7.62 mm, label 2: T- B- T+ B+ PE W V U coding A: 0000
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Short description | Push-in terminal block, for 8EIxXxxxx.xxxx-1 / 8EI01xHxxxx.xxxx-1 / 8EI022HxDxx.xxxx-1 servo drives, connector X5x (motor) |
Terminal block
| Connection cross section – AWG wire | U V W PE: 24 to 8 AWG ; B+ B- T+ T-: 26 to 16 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 1.5 to 6 mm² (power); 0.25 to 1.5 mm² (signal) |
| Connection cross section – Single-wire | 0.5 to 10 mm² (power); 0.14 to 1.5 mm² (signal) |
| Connection cross section – Fine-stranded wires | 0.5 to 10 mm² (power); 0.14 to 1.5 mm² (signal) |
| Connection cross section – With wire end sleeve | 1.5 to 6 mm² (power); 0.25 to 1.5 mm² (signal) |
| Note | Label 2: U V W PE B+ B- T+ T- ; Coding A: No coding |
| Number of pins | 8 (4 + 4) |
| Type of terminal block | Push-in spring connector |
| Cable type | Only copper wires (no aluminum wires!) |
| Coding | A |
| Pitch | 7.62 mm |
| Wire stripping length | 12 mm |
Electrical properties
| Nominal voltage | 1000 V (IEC) / 600 V (UL) |
| Nominal current | 34 A (IEC) / 33 A (UL) |
Mechanical properties
| Dimensions – Width | 39 mm |
| Dimensions – Height | 23.1 mm |
| Dimensions – Depth | 44.7 mm |
| Weight | 24 g |
Accessories
Optional accessories (1)
| 8EXC000.0022-00 | Coding keys — 8EXC keying plugs allow the keying of 8TB3308.222A-00 / 8TB4104.224G-10 terminal blocks to be adapted to the respective keying of motor con… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8TB3308.222A-00: frequently asked questions
When can 8TB3308.222A-00 be shipped?
8TB3308.222A-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8TB3308.222A-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8TB3308.222A-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB3308.222A-00, subject to availability and destination.
