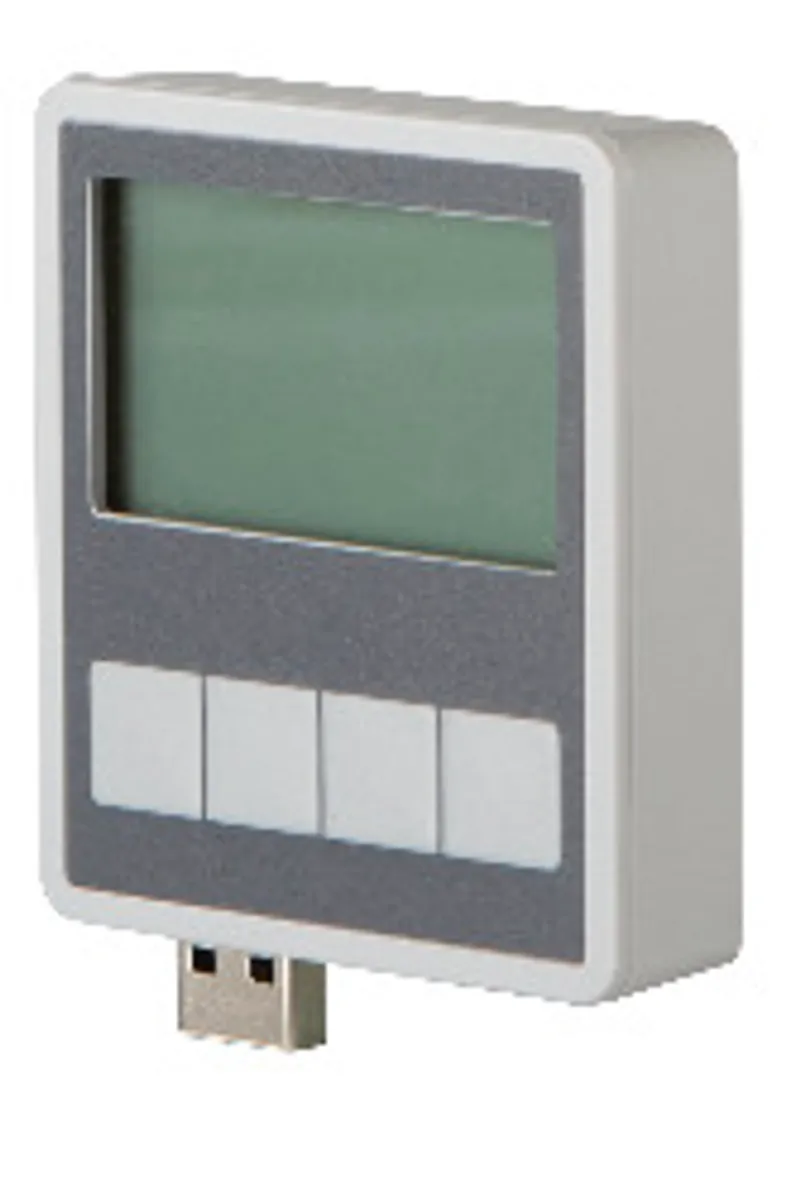

B&R 8EAD0000.000-1
Viewing/setting the POWERLINK node number
- MPN
- 8EAD0000.000-1
- Category
- Display modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 8EAD0000.000-1?
An 8EAD display module can be plugged into the X9 interface of an 8EI servo drive to display information about the drive and set its parameters:
Viewing/setting the POWERLINK node number
Viewing the operating system version of the 8EI servo drive
Viewing general information about the 8EI servo drive
The four keys on the front of the display module are used to navigate the menu and set parameters.
Display module, LCD, 128 x 64, black/white, 1x USB 3.0
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Power consumption | Max. 2.5 W |
Display
| Type | LCD |
| Colors | Black/White |
| Resolution | 128 x 64 |
Keys
| Type | Short stroke keys |
| Quantity | 4 |
Electrical properties
| Nominal voltage | 5 to 26 VDC |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 95% at 40°C |
Mechanical properties
| Dimensions – Width | 59 mm |
| Dimensions – Height | 75 mm (note: When connected: 66 mm.) |
| Dimensions – Depth | 20 mm |
| Weight | 54 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (2)
8EAD0000.000-1: frequently asked questions
When can 8EAD0000.000-1 be shipped?
8EAD0000.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8EAD0000.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8EAD0000.000-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8EAD0000.000-1, subject to availability and destination.
