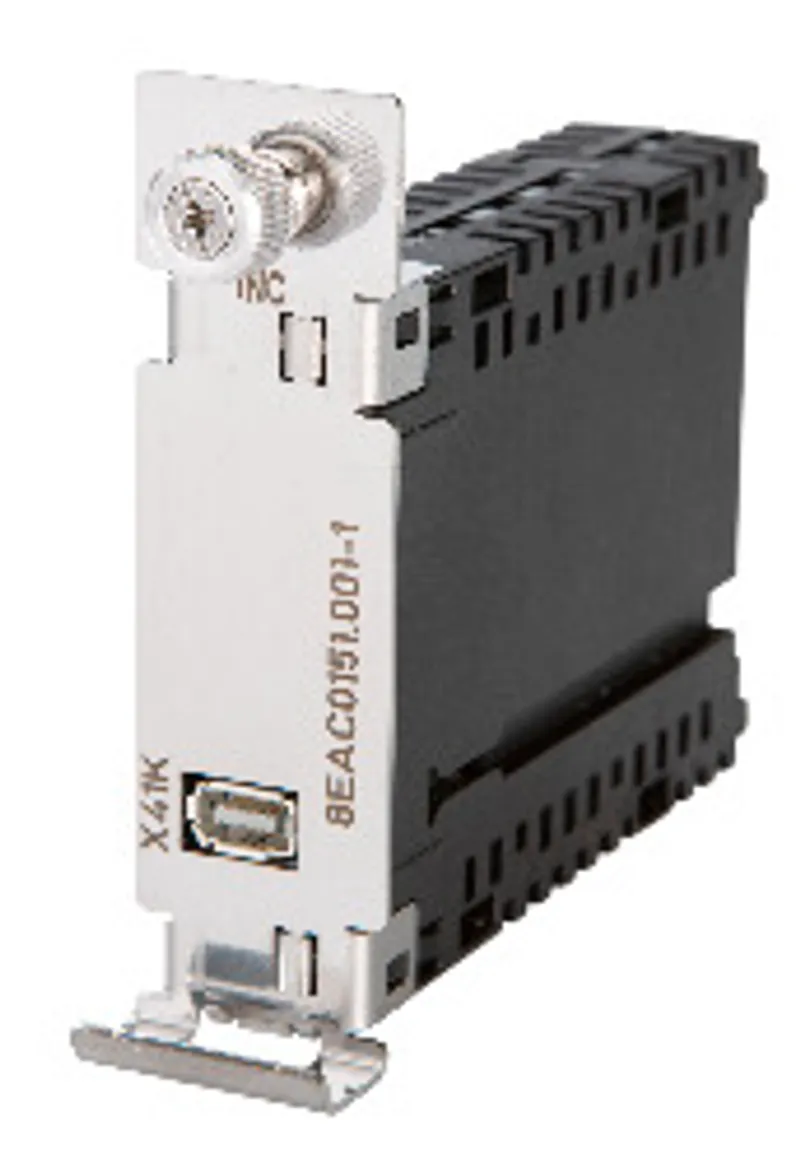

B&R 8EAC0151.001-1
ACOPOS P3 plug-in module, incremental encoder interface
- MPN
- 8EAC0151.001-1
- Category
- Plug-in modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 8EAC0151.001-1?
ACOPOS P3 plug-in module, incremental encoder interface
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Module type | ACOPOS P3 plug-in module |
| B&R ID code | F301 |
| Slot | Slot 1 |
| Max. power consumption | In preparation |
Encoder connection
| Module-side connection | iX industrial connector 10-pin male, coding B |
| Status indicators | None |
| Max. encoder cable length | 75 m (RS422, digital filter parameterized to maximum 200 kHz); 25 m (all other interfaces and settings) (note: Depending on the encoder and cable used, the maximum possible frequency may be reduced for a given cable length or the maximum possible cable length may be reduced for a given frequency.) |
Encoder power supply
| Protective measures – Overload-proof | Yes |
| Protective measures – Short-circuit proof | Yes |
| Output voltage | 5 V ±5%; 12 V ±10% (note: The encoder must be supplied using the voltage source provided. The use of any other power supply is not permitted.) |
| Load capacity | 300 mA |
| Sense lines | No (note: With an output voltage of 5 V ±5%, it is possible to compensate for the sensor voltage drop by configuring the cable resistance (max. 2x 4.014 Ω). When using compensation and current >200 mA, the output voltage accuracy is reduced to ±0.5 V.) |
Inputs A, B, R
| Single-ended signals – Input voltage for low | <1 V against COM (TTL 5 V); <1.8 V against COM (HTL 12 V) |
| Single-ended signals – Input voltage for high | >2.6 V against COM (TTL 5 V); >7 V against COM (HTL 12 V) |
| Differential signals – Differential voltage | ±0.5 V to ±5 V (RS422, TTL 5 V); ±2 V to ±13 V (HTL 12 V) |
| Differential signals – Terminating resistor | 112 Ω (RS422) |
| Open-circuit monitoring – RS422, HTL/TTL differential, HTL/TTL single-ended | Yes (note: With HTL/TTL differential without terminating resistor, error detection is only guaranteed if both lines are interrupted.) |
| Open-circuit monitoring – HTL/TTL open collector, HTL/TTL open emitter | No (note: Fault detection is not possible because an open circuit cannot be distinguished from a valid condition.) |
| Maximum input voltage | -13 V / +16 V against COM |
Incremental encoder operation
| Signal form | Square wave signals |
| Evaluation | 4x |
| Input frequency | Max. 6.25 MHz (RS422); Max. 200 kHz (TTL 5 V, HTL 12 V) |
| Counter frequency | Max. 25 MHz (RS422); Max. 800 kHz (TTL 5 V, HTL 12 V) |
| Reference frequency | Max. 6.25 MHz (RS422); Max. 200 kHz (TTL 5 V, HTL 12 V) |
| Distance between edges | Min. 40 ns (RS422); Min. 340 ns (TTL 5 V, HTL 12 V) |
| Max. acceleration | 25 * 10 9 increments / s 2 (RS422); 1.5 * 10 9 increments / s 2 (TTL 5 V, HTL 12 V) |
Support
| Motion system – mapp Motion | 5.3.0 and higher |
| Motion system – ACP10/ARNC0 | 5.3.0 and higher (RS422, HTL differential, HTL push-pull, HTL pull); 5.8.0 and higher (remaining interfaces) |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Width | 82 mm |
| Dimensions – Length | 24 mm |
| Dimensions – Depth | 103 mm |
| Weight | 72 g |
No matching specifications
Accessories
Optional accessories (1)
| 8ECG00X4.3151D-0 | Adapter cables — ACOPOS P3 adapter cable, length 0.4 m, for analog multi-encoder interfaces and incremental encoder interfaces, 5x 2x 0.14 mm², 10-pin male… |
