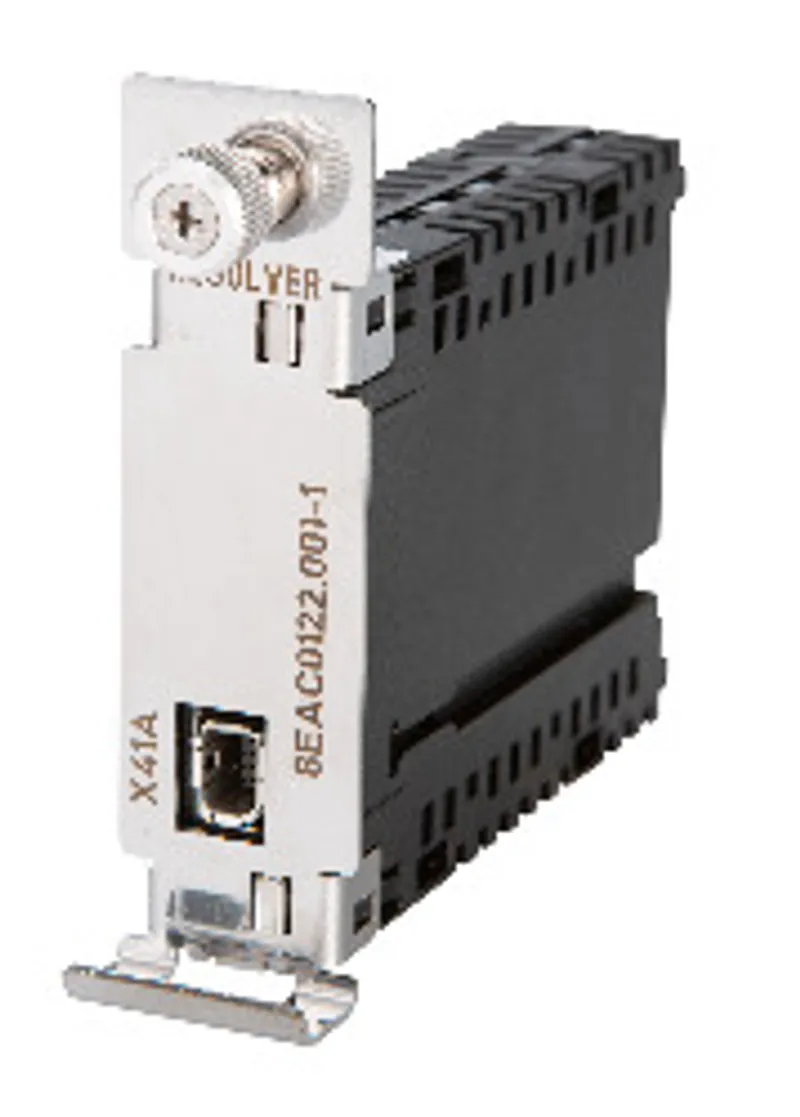

What is the B&R 8EAC0122.001-1?
Resolver interface for installation in ACOPOS P3 servo drives
Encoder monitoring
High resolution
ACOPOS P3 plug-in module, resolver interface 10 kHz
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Module type | ACOPOS P3 plug-in module |
| B&R ID code | 0xEA8E |
| Max. power consumption | 1 W |
Encoder connection
| Module-side connection | 8-pin female Mini I/O connector (note: The resolver must be wired using a cable with a single shield and twisted pair signal lines.) |
| Status indicators | None |
| Encoder monitoring | Yes |
| Max. encoder cable length | 100 m |
Encoder power supply
| Protective measures – Overload-proof | Yes |
| Protective measures – Short-circuit proof | Yes |
| Output voltage | Typ. 3 V eff |
| Output current | Max. 50 mA eff |
| Frequency | 10 kHz |
Position
| Resolution @ 1 V SS | Number of pole pairs * 16 bits |
Analog inputs
| Digital converter resolution | 16-bit |
| Input impedance | 10.4 kΩ - j8 kΩ |
| Input voltage | Resolver transformation ratio: 0.2 - 0.55 ±10% |
| Common-mode voltage | Max. ±12 V |
| Signal transmission | Differential signals |
Support
| Motion system – mapp Motion | 5.00.0 and higher |
| Motion system – ACP10/ARNC0 | 3.11.0 and higher |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Width | 24 mm |
| Dimensions – Height | 82 mm |
| Dimensions – Depth | 103 mm |
| Weight | 123 g |
Accessories
Optional accessories (9)
| 8ECR0025.1111C-0 | Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors; speedtec - Innovative co… |
| 8ECR0020.1111C-0 | Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors; speedtec - Innovative co… |
| 8ECR0015.1111C-0 | Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors; speedtec - Innovative co… |
| 8ECR0012.1111C-0 | Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors; speedtec - Innovative co… |
| 8ECR0010.1111C-0 | Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors; speedtec - Innovative co… |
| 8ECR0009.1111C-0 | Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors; speedtec - Innovative co… |
| 8ECR0008.1111C-0 | Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors; speedtec - Innovative co… |
| 8ECR0007.1111C-0 | Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors; speedtec - Innovative co… |
| 8ECR0005.1111C-0 | Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors; speedtec - Innovative co… |
