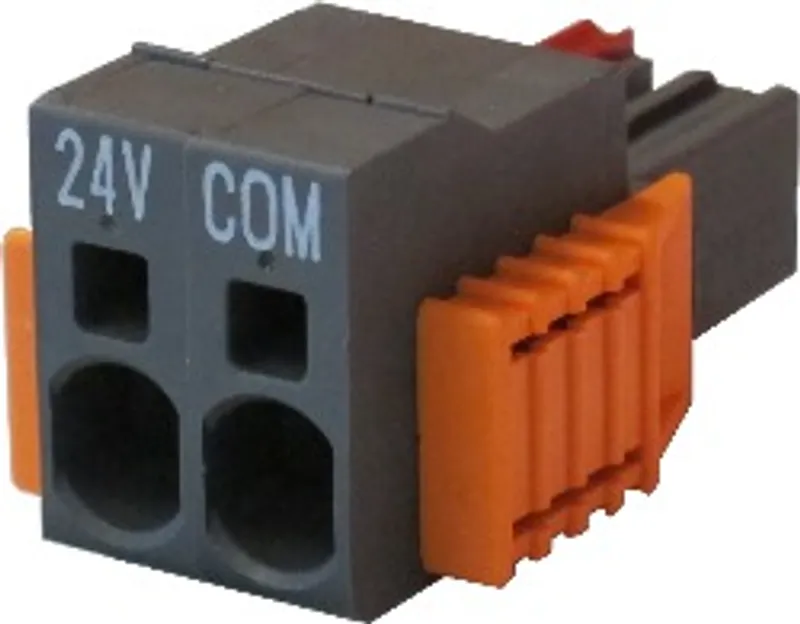

B&R 8TB3102.222C-20
2-pin push-in terminal block, 1-row, with locking mechanism
- MPN
- 8TB3102.222C-20
- Category
- Terminals
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8TB3102.222C-20?
2-pin push-in terminal block, 1-row, with locking mechanism, pitch: 7.62 mm, label 2: COM 24 V, coding C: 10
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Short description | Push-in terminal block, 1-row, for 8EIXXXXXXXX.XXXX-1 servo drives, connector X2 (24 V) |
Terminal block
| Connection cross section – AWG wire | 24 to 8 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.25 to 4 mm² |
| Connection cross section – Single-wire | 0.2 to 10 mm² |
| Connection cross section – Fine-stranded wires | 0.2 to 6 mm² |
| Connection cross section – With wire end sleeve | 0.25 to 6 mm² |
| Note | Label 3: COM 24 V; Coding C: 10 ; 1-row; Locking mechanism: Click-and-lock system |
| Number of pins | 2 |
| Type of terminal block | Push-in spring connector |
| Cable type | Only copper wires (no aluminum wires!) |
| Coding | C |
| Pitch | 7.62 mm |
| Wire stripping length | 15 mm |
Electrical properties
| Nominal voltage | 1000 V (IEC) / 600 V (UL) |
| Nominal current | 41 A (IEC) / 35 A (UL) |
Mechanical properties
| Dimensions – Width | 15.2 mm |
| Dimensions – Height | 19.8 mm |
| Dimensions – Depth | 38.5 mm |
| Weight | 10 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8TB3102.222C-20: frequently asked questions
When can 8TB3102.222C-20 be shipped?
8TB3102.222C-20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8TB3102.222C-20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8TB3102.222C-20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB3102.222C-20, subject to availability and destination.
