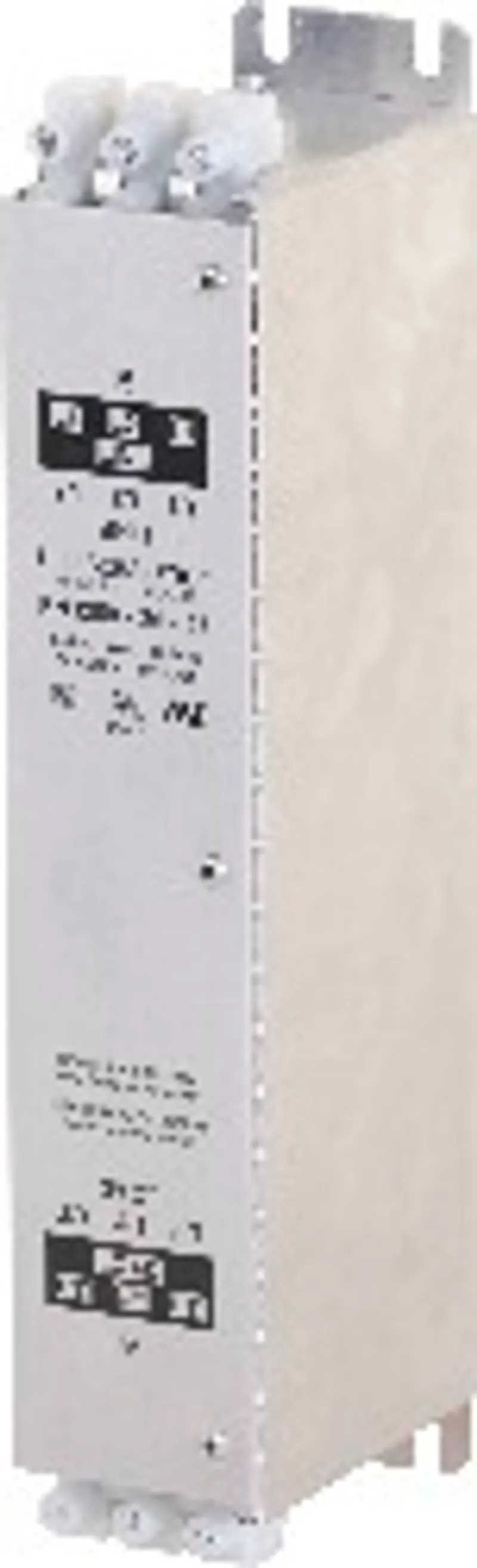

B&R 8B0F0300H000.000-1
Wide mains input voltage range
- MPN
- 8B0F0300H000.000-1
- Category
- Passive line filter
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 8B0F0300H000.000-1?
Wide mains input voltage range
Optimally suited for ACOPOSmulti 8B0P power supply modules
Compliance with limit values per CISPR11, group 2, class A
Line filter, passive, 30 A, 3x 520 VAC, 50/60 Hz, IP20
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Cooling and mounting type | Wall mounting |
Mains connection
| Reduction of continuous current depending on ambient temperature – Starting at 50°C | 0.308 A/K |
| Reduction of continuous current depending on installation elevation – Starting at 1000 m above sea level | 1.5 A eff per 1000 m |
| Variant – On mains | No |
| Variant – On device | No |
| Variant – L1, L2, L3 and L1´, L2´, L3´ | Terminals |
| Variant – PE | M5 threaded bolt |
| Terminal connection cross section – With wire end sleeve | Max. 10 mm² |
| Terminal connection cross section – UL/C-UL-US | 8 AWG |
| Terminal connection cross section – CSA | 8 AWG |
| Permissible network configurations | TT, TNDelta/Wye with grounded wye neutral" in the USA."> (note: TT and TN power systems are commonly referred to as) |
| Mains input voltage | Max. 3x 520 VAC |
| Frequency | Max. 60 Hz |
| Continuous current | 30 A eff (note: Valid under the following conditions: 3x 480 VAC mains input voltage, 50°C ambient temperature, cos phi = 0.8. The exact value depends on the application.) |
| Peak current | 45 A eff (<1 min), 1x/h |
| Power dissipation | 11.8 W (note: Valid under the following conditions: 25°C ambient temperature, frequency 50 Hz.) |
| Line filter per EN 61800-3, category C3 | Yes (note: Limit values from EN 61800-3 C3 (second environment).) |
Electrical properties
| Discharge capacitance | 0.4 µF (note: To simplify the design, the converted capacity on the DC bus is specified here.) |
| Leakage currentDimensioning" in the drive system user's manual!"> | 33 mA |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 1000 m |
| Installation elevation above sea level – Maximum | 4000 m (note: Continuous operation at an installation elevation of 1000 m to 4,000 m above sea level is possible when taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.) |
| Pollution degree per EN 61800-5-1 | In preparation |
| Overvoltage category per IEC 60950 | II |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Width | 50 mm |
| Dimensions – Height | 270 mm |
| Dimensions – Depth | 85 mm |
| Vibration and shock | 3M4 per IEC 60721-3-3 |
| Weight | 1.2 kg |
