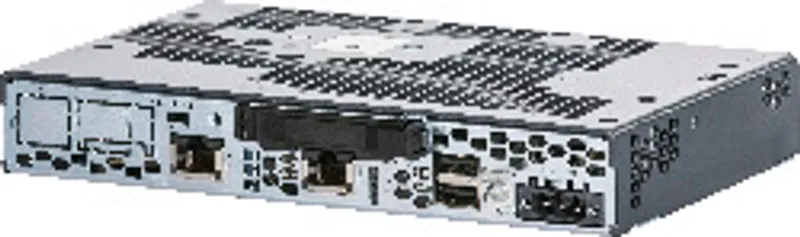

B&R 5PPC2100.BY22-002
PPC2100 system unit, Intel Atom E3826 1.46 GHz, Dual core
- MPN
- 5PPC2100.BY22-002
- Category
- System units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5PPC2100.BY22-002?
PPC2100 system unit - Intel Atom E3826 1.46 GHz - Dual core - 2 GB SDRAM - For Automation Panel 5000
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | Power, CFast, Link, Run |
| B&R ID code | EAD5 |
| Cooling | Passive via housing |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | No |
Controller
| Processor – Type | Intel Atom E3826 |
| Processor – Clock frequency | 1460 MHz |
| Processor – Total number of cores | 2 |
| Processor – Architecture | 22 nm |
| Processor – Thermal design power (TDP) | 7 W |
| Processor – L2 cache | 1 MB |
| Processor – Intel 64 architecture | Yes |
| Processor – Intel Hyper-Threading Technology | No |
| Processor – Intel vPro Technology | No |
| Processor – Intel Virtualization Technology (VT-x) | Yes |
| Processor – Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Processor – Enhanced Intel SpeedStep Technology | Yes |
| Real-time clock – Accuracy | At 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).) |
| Real-time clock – Retention time | Typ. approx. 400 h; Min. approx. 200 h (note: To achieve the specified values for the self-discharge time, the product must be supplied with power for min. 8 hours.) |
| Real-time clock – Battery-backed | No |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms |
| Memory – Type | DDR3 SDRAM |
| Memory – Memory size | 2 GB |
| Memory – Speed | DDR3L-1067 |
| Memory – Memory interface width | Single channel |
| Memory – Removable | No |
| Graphics – Controller | Intel HD Graphics |
| Graphics – Max. dynamic graphics frequency | 667 MHz |
| Graphics – Color depth | Max. 32-bit |
| Graphics – DirectX support | 11 |
| Graphics – OpenGL support | 4.0 |
| Bootloader | UEFI BIOS |
| Chipset | Intel Bay Trail |
| Power management | ACPI 4.0 |
Interfaces
| CFast slot – Quantity | 1 |
| CFast slot – Type | SATA II (SATA 3.0 Gbit/s) |
| USB – Quantity | 2 |
| USB – Type | 1x USB 3.0; 1x USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) to SuperSpeed (5 Gbit/s) (note: The SuperSpeed transfer rate (5 Gbit/s) is only possible with USB 3.0.) |
| USB – Current-carrying capacity | Max. 1 A per connection |
| Ethernet – Quantity | 2 |
| Ethernet – Variant | RJ45, shielded |
| Ethernet – Transfer rate | 10/100/1000 Mbit/s |
| Ethernet – Max. baud rate | 1 Gbit/s |
Slots
| Interface option | 1 (note: The interface option cannot be replaced.) |
Support
| Software – Automation Studio | Up to V4.12 |
Electrical properties
| Nominal voltage | 24 VDC ±25% (note: IEC 61010-2-201 requirements must be observed.) |
| Nominal current | 3.5 A |
| Inrush current | Typ. 6 A, max. 10 A for < 300 μs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Back: IP20 (front: depends on the panel used) (note: Only if all interface covers are installed. The degree of protection of the complete system depends on the mounting unit used as well as the panel.) |
Ambient conditions
| Elevation – Operation | Max. 3000 m (component-dependent) (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Dimensions – Width | 190 mm |
| Dimensions – Height | 115 mm |
| Dimensions – Depth | 29.7 mm |
| Weight | 577 g |
Accessories
Required accessories (order separately)
| 5CFAST.256G-10 | CFast cards — CFast 256 GB MLC |
| 5CFAST.128G-10 | CFast cards — CFast 128 GB MLC |
| 5CFAST.064G-10 | CFast cards — CFast 64 GB MLC |
| 5CFAST.032G-10 | CFast cards — CFast 32 GB MLC |
| 5CFAST.032G-00 | CFast cards — 32 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 32 GB SLC |
| 5CFAST.016G-00 | CFast cards — 16 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 16 GB SLC |
| 5ACCHP00.0004-000 | Heatpipe — AP5000 heat pipe - For PPC2100 (5PPC2100.BYxx-002) - For VESA mounting unit |
| 5ACCHP00.0000-000 | Heatpipe — AP5000 heat pipe - For PPC2100 (5PPC2100.BYxx-002) - For swing arm mounting unit |
Optional accessories (10)
| 5ACCIF01.IS00-000 | Interface options — 1x RS232 interfaceCompatible with APC2100/PPC2100 and APC2200/PPC2200 Interface option 5ACCIF01.IS00-000 is equipped with an RS232 interfac… |
| 5ACCIF01.ICAN-000 | Interface options — 1x CAN bus master interface; Compatible with APC2100/PPC2100 and APC2200/PPC2200 Interface option 5ACCIF01.ICAN-000 is equipped with a CAN… |
| 5ACCIF01.FSS0-000 | Interface options — Interface card - 2x RS422/RS485 interface - For APC2100/PPC2100/APC2200/PPC2200 - Only available with a new device |
| 5ACCIF01.FPSC-001 | Interface options — 1x POWERLINK interface managing or controlled node; 1x CAN bus master interface; 1x X2X Link master interface; 1x RS232 interface; 512 kB n… |
| 5ACCIF01.FPSC-000 | Interface options — 1x POWERLINK interface managing or controlled node; 1x CAN bus master interface; 1x RS232 interface; 32 kB FRAM; Compatible with APC2x00 /… |
| 5ACCIF01.FPLS-001 | Interface options — 1x POWERLINK interface managing or controlled node; 1x RS232 interface; 512 kB nvSRAM; Compatible with APC2x00 / PPC2x00 Interface option 5… |
| 5ACCIF01.FPLS-000 | Interface options — 1x POWERLINK interface managing or controlled node; 1x RS232 interface; 32 kB FRAM; Compatible with APC2x00 / PPC2x00 Interface option 5ACC… |
| 5ACCIF01.FPLK-000 | Interface options — 1x POWERLINK interface for real-time communication; 512 kB nvSRAM; Integrated hub for economical wiring; Configurable ring redundancy; Poll… |
| 5ACCIF01.FPCS-000 | Interface options — Interface card - 1x RS485 interface - 1x CAN interface - 1x POWERLINK interface - 32 kB FRAM - For APC2100/PPC2100/APC2200/PPC2200 - Only a… |
| 5ACCIF01.FPCC-000 | Interface options — 1x POWERLINK interface managing or controlled node; 2x CAN bus master interfaces; 1x X2X Link master interface; 512 kB nvSRAM; Compatible w… |
