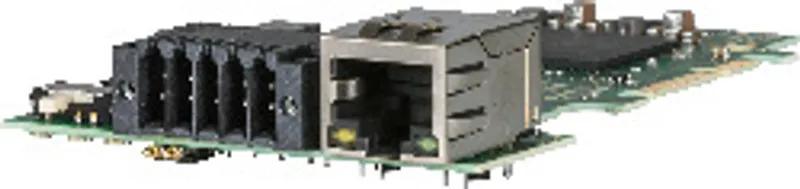

B&R 5ACCIF01.FPCS-000

Interface card, 1x RS485 interface, 1x CAN interface

MPN: 5ACCIF01.FPCS-000
Category: Interface options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 5ACCIF01.FPCS-000?

Interface card - 1x RS485 interface - 1x CAN interface - 1x POWERLINK interface - 32 kB FRAM - For APC2100/PPC2100/APC2200/PPC2200 - Only available with a new device

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.)
Certifications – CCS	Yes
Certifications – LR	ENV3
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck
LEDs	L1, L2, L3
B&R ID code	0xED7C

Controller

FRAM – Size	32 kB
FRAM – Data retention	10 years
FRAM – Read/Write endurance	Min. 10 12 times/byte
FRAM – Remanent variables in power failure mode	32 kB; (for e.g. Automation Runtime, see Automation Help)

Interfaces

COM – Quantity	1
COM – Type	RS485, not galvanically isolated
COM – Execution	10-pin, male
COM – UART	16550-compatible, 16-byte FIFO buffer
COM – Max. baud rate	115 kbit/s
POWERLINK – Quantity	1
POWERLINK – Type	Type 4 (note: For additional information, see Automation Help ( Communication / POWERLINK / General information / Hardware - IF / LS ).)
POWERLINK – Execution	RJ45, shielded
POWERLINK – Transfer rate	100 Mbit/s
POWERLINK – Transfer	100BASE-TX
POWERLINK – Line length	Max. 100 m between two stations (segment length)
CAN – Type	Can be switched on and off with slide switch
CAN – Default setting	Off
CAN – Quantity	1
CAN – Execution	10-pin, male, not galvanically isolated
CAN – Transfer rate	Max. 1 Mbit/s

Electrical properties

Power consumption

1.75 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	-20 to 55°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

25 g

Accessories

Optional accessories (1)

0TB1210.3100

Terminal blocks — Two-row 10-pin terminal block 0TB1210.3100 is used to connect to the button/switch interface of the Automation Panel 9xD and to the interfa…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D files DXF/STP 5ACCIF01.FPCS-000ZIP · 902 KB · 1.00 (06/05/2019)

Certificates (1)

CCS Type Approval Certificate - Automation PCs, Panel PCs and PanelsPDF · 471 KB · 2.00 (01/15/2026)
