B&R 5ACCIF01.FPCC-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface options |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 25 kg |
Shipping & availability
When can 5ACCIF01.FPCC-000 be shipped?
5ACCIF01.FPCC-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCIF01.FPCC-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCIF01.FPCC-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCIF01.FPCC-000, subject to availability and destination.

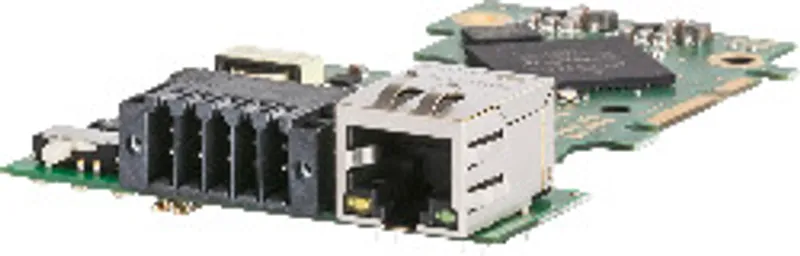

1x POWERLINK interface managing or controlled node2x CAN bus master interfaces1x X2X Link master interface512 kB nvSRAMCompatible with APC2100/PPC2100 and APC2200/PPC2200 Interface option 5ACCIF01.FPCC-000 is equipped with a POWERLINK interface, 2 CAN bus master interfaces and an X2X Link master interface. In addition, 512 kB nvSRAM is installed.
Specifications
Specifications
| LEDs | L1, L2, L3 |
| B&R ID code | 0xE9BD |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267Industrial control equipment |
| HazLoc | cULus HazLoc E180196Industrial control equipmentfor hazardous locations Class I, Division 2, Groups ABCD, T4 |
| DNV | Temperature: B (0 to 55°C)Humidity: B (up to 100%)Vibration: A (0.7 g)EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV3 |
| KR | Yes |
| ABS | Yes |
| BV | EC31BTemperature: 5 - 55°CVibration: 0.7 gEMC: Bridge and open deck |
| Size | 512 kB |
| Data retention | 20 years |
| Read/Write endurance | Min. 1,000,000 |
| Remanent variables in power failure mode | 256 kB (for e.g. Automation Runtime, see Automation Help) |
| Quantity | 1 |
| Type | X2X Link master |
| Variant | 10-pin, male, galvanically isolated |
| Transfer rate | Max. 1 Mbit/s |
| Transfer | 100BASE-TX |
| Line length | Max. 100 m between two stations (segment length) |
| Default setting | Each off |
| Power consumption | 2 W |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Operation | 5 to 90%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Weight | 25 g |
