Home / B&R / Interface options / B&R 5ACCIF01.ICAN-000

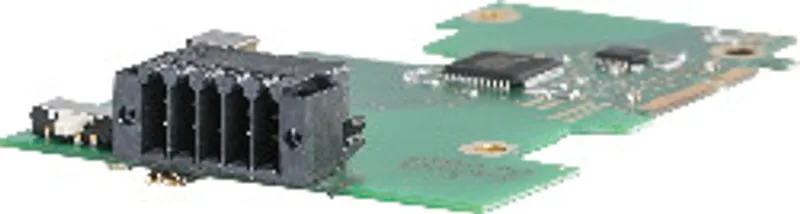

B&R 5ACCIF01.ICAN-000

1x CAN bus master interface

MPN: 5ACCIF01.ICAN-000
Category: Interface options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5ACCIF01.ICAN-000?

1x CAN bus master interface

Compatible with APC2100/PPC2100 and APC2200/PPC2200

Interface option 5ACCIF01.ICAN-000 is equipped with a CAN bus master interface.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
LEDs	L1
B&R ID code	0xE9BB

Interfaces

CAN – Type	Can be switched on and off with slide switch
CAN – Default setting	Off
CAN – Quantity	1
CAN – Controller	Bosch CC770 (compatible with Intel 82527 CAN controller)
CAN – Variant	10-pin, male, galvanically isolated
CAN – Transfer rate	Max. 1 Mbit/s

Electrical properties

Power consumption

0.5 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	-20 to 60°C (note: For detailed information, see the temperature tables in the user's manual.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

25 g

Accessories

Optional accessories (1)

0TB1210.3100

Terminal blocks — Two-row 10-pin terminal block 0TB1210.3100 is used to connect to the button/switch interface of the Automation Panel 9xD and to the interfa…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

5ACCIF01.ICAN-000: frequently asked questions

When can 5ACCIF01.ICAN-000 be shipped?

5ACCIF01.ICAN-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5ACCIF01.ICAN-000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5ACCIF01.ICAN-000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCIF01.ICAN-000, subject to availability and destination.
