System units Parts

B&R

PPC2100 system unit, Intel Atom E3815 1.46 GHz, Single core

B&R

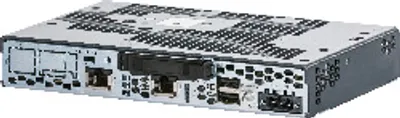

PPC2100 system unit, Intel Atom E3825 1.33 GHz, Dual core

B&R

PPC2100 system unit, Intel Atom E3826 1.46 GHz, Dual core

B&R

PPC2100 system unit, Intel Atom E3827 1.75 GHz, Dual core

B&R

PPC2100 system unit, Intel Atom E3845 1.91 GHz, Quad core

B&R

PPC2100 system unit, Intel Atom E3845 1.91 GHz, Quad core

Compare System units

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Processor – Type	Processor – Clock frequency	Processor – Thermal design power (TDP)	Memory – Memory size	Graphics – Max. dynamic graphics frequency
5PPC2100.BY01-002	Intel Atom E3815	1460 MHz	5 W	1 GB	400 MHz
5PPC2100.BY11-002	Intel Atom E3825	1330 MHz	6 W	1 GB	533 MHz
5PPC2100.BY22-002	Intel Atom E3826	1460 MHz	7 W	2 GB	667 MHz
5PPC2100.BY34-002	Intel Atom E3827	1750 MHz	8 W	4 GB	792 MHz
5PPC2100.BY44-002	Intel Atom E3845	1910 MHz	10 W	4 GB	792 MHz
5PPC2100.BY48-002	Intel Atom E3845	1910 MHz	10 W	8 GB	792 MHz

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E115267; Industrial control equipment
LEDs	Power, CFast, Link, Run
Cooling	Passive via housing
Power button	Yes
Reset button	Yes
