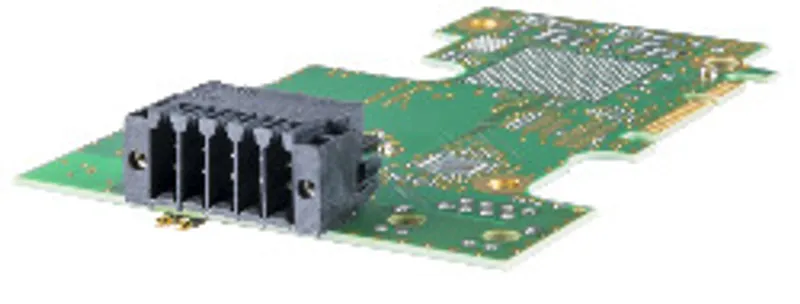

B&R 5ACCIF01.IS00-000

Interface option

MPN: 5ACCIF01.IS00-000
Category: Interface options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5ACCIF01.IS00-000?

1x RS232 interfaceCompatible with APC2100/PPC2100 and APC2200/PPC2200

Interface option 5ACCIF01.IS00-000 is equipped with an RS232 interface.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
LEDs	No
B&R ID code	0x2C43

Interfaces

COM – Quantity	1
COM – Type	RS232, modem supported, not galvanically isolated
COM – Execution	10-pin, male
COM – UART	16550-compatible, 16-byte FIFO buffer
COM – Max. baud rate	115 kbit/s

Electrical properties

Power consumption

Max. 0.5 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	-20 to 55°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 25 g

Accessories

Optional accessories (1)

0TB1210.3100

Terminal blocks — Two-row 10-pin terminal block 0TB1210.3100 is used to connect to the button/switch interface of the Automation Panel 9xD and to the interfa…
